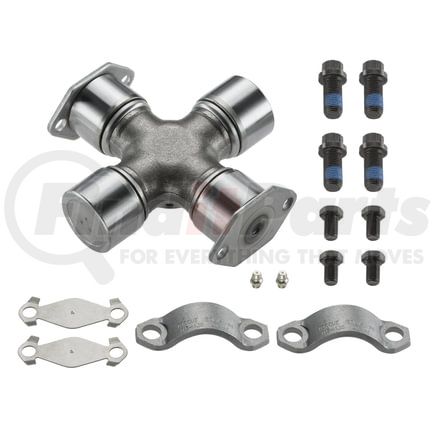

(888) 312-8812 Login SignupMOOG 876 MOOG 876 Greaseable Premium Universal Joint
Tap to view 1 more
$19999
Limited availability at this price!
In Stock
Get it by Monday, Mar 23
MOOG 876 Part Description
Manufacturer
Product Description
Greaseable Premium Universal Joint
Features & Benefits
- BUILT TO LAST -- Rugged design specifically engineered for fleets, off-highway and commercial vehicles
- STRONG AND DURABLE -- Bearing cups are cold-formed, case-hardened and precision ground for strength and durability
- KEEPS DIRT OUT -- Abrasion-resistant nitrile seals provide ideal grease retention and protection from under-vehicle contaminants
- GREASEABLE DESIGN -- Drilled and tapped grease fitting holes for easy servicing and cross trunnions with large grease reservoirs with radial grease channels for grease distribution
- INHIBITS PREMATURE WEAR -- Cross trunnions ground to a 15-25 RMS finish for a smooth surface free of microscopic grooves that can cause premature wear
- RELIABLE PERFORMANCE -- Internal anti-drainback valve integrated into thrust washer controls lubrication flow and prevents dry startup
- RIGOROUS TESTING -- Comprehensive testing throughout design and development processes by MOOG engineers for quality you can count on
MOOG 876 Specifications
Product Attributes
| Bearing Cap Axis 1 Diameter | 1.937 IN |
| Bearing Cap Axis 1 Diameter | 49.1 MM |
| Bearing Cap Axis 2 Diameter | 1.937 IN |
| Bearing Cap Axis 2 Diameter | 49.1 MM |
| Bearing Cap Type | 2 Welded Plate & 2 Plain Round Bearings |
| Bearing Type A | Round Plain |
| Bearing Type B | Round Welded Plate |
| Length Axis 1 | 6.187 IN |
| Length Axis 1 | 157.1 MM |
| Length Axis 2 | 6.094 IN |
| Length Axis 2 | 154.7 MM |
| Length Measurement A | Outside of Bearing To Outside of Bearing |
| Length Measurement B | Inside of Welded Plate to Inside of Welded Plate |
| LUBE FITTING LOCATION | Two regular lube fittings in cross |
| Greaseable | YES |
| OE Series | Spicer 1710 |
| U-Joint Identification | 2 Welded Plate & 2 Plain Round Bearings |
| Part Description | Universal Joint |
| Grade Type | Premium |
Additional Information
| Country of Origin (Primary) | MX |
| Canadian Harmonizing Tariff Code | 8708991510 |
| Harmonized Tariff Code (Schedule B) | 8708996810 |
| Harmonized Tariff Code (HTS) | 8708996810 |
| UPC | 00080066612607 |
MOOG 876 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 45U2334 |
| AUTOPAR | A-675X |
| Autopar - Archived | F7HZ4635AA, 21705675X, 1696915C91, 5675X, XF675 |
| DANA | 5-675X |
| Ford | F7HZ4635AA, F7HZ-4635-AA |
| GMB | 2300675 |
| General Motors | 12387783, 19161818 |
| International Harvester IHC | 1696-915-C91 |
| Mack | 2170-5675X, 21705675X |
| Mcquay-Norris | U675 |
| NEAPCO | 6-0675, 6-0675Q |
| Navistar | 1696915C91 |
| Neapco OE Series | 60675 |
| Rockwell International | R675X, CP17S2 |
| Spicer | 5-675X |
| WORLD AMERICAN | 5-675XR |
MOOG 876 Customer Reviews
No reviews yet
Be the first to review this product!
MOOG 876 Manufacturer Information
For over 100 years, Moog® has been an industry leader in mid- to high-end aftermarket parts for steering, suspension, and driveline systems worldwide. Utilized by daily commuters to entire fleets, Moog parts have become synonymous with reliable performance that’s just as good or even better than their OE counterparts. Moog also incorporates innovative features in their products not found in competing products, such as patented forged steel bodies and metal “gusher” bearings that greatly reduce friction across moving components. The brand also leads the way in after-sales support, with comprehensive technical assistance and training materials available for customers around the world.
MOOG 876 Questions & Answers
No questions yet
Be the first to ask a question about this product!
