SCHRADER VALVES 28360 Part Description
Manufacturer
Product Description

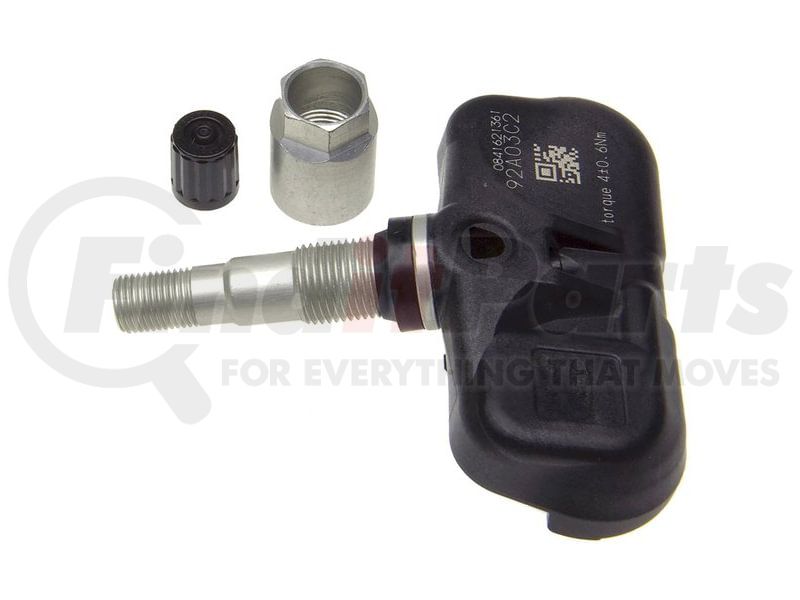

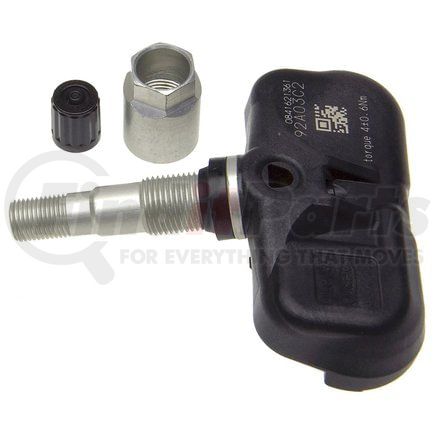

TPMS Sensor - Clamp-In Aluminum Valve
Features & Benefits
- 1 for 1 direct-fit OE replacement TPMS sensor services the specific make, model, and year
- Premium quality TPMS sensors produced in Schrader’s secure and highly automated OE manufacturing facilities
- Ready out of the box
- Quick and easy installation that does not require programming
- Premium quality TPMS sensors produced in Schrader's secure and highly automated OE manufacturing facilities
- OE fit, form and function validated and engineered by over 350 engineers dedicated to TPMS
SCHRADER VALVES 28360 Specifications
Product Attributes
| Valve Material | Aluminum |
| Mounting Method | Clamp-in |
| Mounting Hardware Included | Yes |
| Valve Color | Silver |
| Programmable | No |
| Attachment Method | Clamp-In |
| Core Material | Nickel-Plated Brass |
| Frequency | 315 |
| Frequency (mhz) | 315 MHz |
| Grommets Included | Yes |
| Hardware Included | Yes |
| Housing Material | Plastic |
| Manufacturer Warranty | 2 Years |
| Mounting Location | Wheel |
| Package Contents | Transmitter, Ni plated valve core (installed), plastic cap (installed), aluminum nut |
| Package Quantity | 1 |
| Programmed/programmable | Programmed |
| Recommended Torque (in/lbs) | 35.4 Inch/Lbs. |
| Recommended Torque (n-m) | 4 N-m |
| Valve Cap Included | Yes |
| Valve Stem Included | Yes |
| Valve Stem Material | Metal |
| Washer Included | No |
Additional Information
| Country of Origin (Primary) | JP |
| Canadian Harmonizing Tariff Code | 9026204000 |
| Harmonized Tariff Code (Schedule B) | 9026200000 |
| Warranty Time | 2 |
| Warranty Time UOM | YR |
| UPC | 00651001213151 |
SCHRADER VALVES 28360 Cross References
| Brand | Part Number |
|---|---|
| DENSO | 550-0103 |
| Dill Air Control | 1204, 1203, 1205, 1206, 1218 |
| Dorman | 974-033 |
| Echlin Ignition Parts | 921187C, 921234 |
| NAPA | 921051, 921046, 921049, 921049C, 921052 |
| Pontiac | 88974915 |
| Schrader Pacific | 40037, 40005, 40050 |
| Scion | 42607-06011 |
| Standard Motor Products | TPM13, TPM134, TPM156, TPM60, TPM82, TPM83, TPM84, TPM84A, TPM85, TPM86, TPM87, TPM88 |
| Subaru | 42607-06011 |
| Toyota | 42607-06011, 42607-04010, 42607-06020, 42607-0C010, 42607-0C020, 42607-30030, 42607-33011, 42607-33021, 42607-35010, 42607-52020, 42607-AD010, 42607-AD020, 88974915 |
SCHRADER VALVES 28360 Fits Vehicles
- Toyota Prius Plug-In (2012-2015)
- Aston Martin Rapide (2010)
- Lexus NX300 (2018-2020)
- Lexus LS500h (2018-2020)
- Lexus RC300 (2016-2020)
- Lexus GS F (2016-2020)
- Lexus RC200t (2016-2017)
- Lexus GS200t (2016-2017)
- Lexus IS300 (2016-2020)
- Lexus IS200t (2016-2017)
- Lexus RC350 (2016-2020)
- Lexus NX300h (2016-2020)
- Lexus RC F (2015-2020)
- Lexus NX200t (2015-2017)
- Lexus ES300h (2013-2020)
- Scion iQ (2012-2015)
- Toyota Prius V (2012-2018)
- Aston Martin V12 Vantage (2010)
- Lexus LFA (2012)
- Lexus CT200h (2011-2017)
- Aston Martin V8 Vantage (2010)
- Lexus GX460 (2010-2021)
- Lexus HS250h (2010-2012)
- Lexus RX450h (2010-2017)
- Lexus IS F (2008-2014)
- Lexus LX570 (2008-2011, 2013-2017)
- Lexus GS460 (2008-2011)
- Scion xD (2008-2014)
- Lexus LS600h (2008-2016)
- Scion xB (2008-2015)
- Lexus GS450h (2007-2011, 2013-2018)
- Lexus ES350 (2007-2020)
- Toyota FJ Cruiser (2007-2014)
- Scion tC (2006-2016)
- Lexus IS350 (2006-2019)
- Lexus RX330 (2006)
- Lexus IS250 (2006-2015)
- Lexus RX400h (2006-2008)
- Toyota Tundra (2004-2020)
- Lexus LX470 (2005-2007)
- Lexus GS430 (2005-2007)
- Lexus GS300 (2005-2006, 2018-2019)
- Toyota Sequoia (2001-2007)
- Toyota Land Cruiser (2000-2011, 2013-2016)
- Lexus GX470 (2003-2009)
- Toyota 4Runner (2002-2020)
- Lexus SC430 (2002-2010)
- Toyota Prius AWD-e (2019)
- Toyota C-HR (2019)
- Toyota Prius Prime (2017-2021)
- Toyota Corolla iM (2017-2018)
- Toyota Venza (2009-2016)
- Lexus LS460 (2007-2017)
- Toyota Mirai (2016-2020)
- Scion iM (2016)
- Toyota Prius C (2012-2021)
- Scion FR-S (2013-2016)
- Subaru BRZ (2013-2018)
- Lexus GS350 (2007-2011, 2013-2020)
- Pontiac Vibe (2008-2010)
- Toyota Highlander (2007-2020)
- Toyota Matrix (2007-2014)
- Toyota Corolla (2007-2020)
- Lexus RX350 (2007-2016)
- Toyota Yaris (2005-2020)
- Toyota Prius (2005-2019)
- Toyota Camry (2006-2017)
- Toyota Solara (2006-2008)
- Toyota Avalon (2005-2020)
- Toyota Tacoma (2004-2020)
- Toyota RAV4 (2000-2018)
