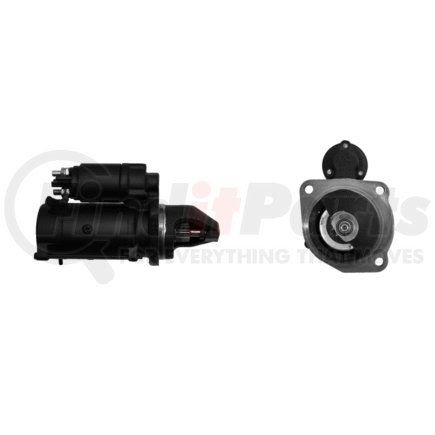

(888) 312-8812 Login SignupLETRIKA MS148 Starter 12V, 10T, CW, PLGR, Letrika/MAHLE AZE41, 3kW, New
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
LETRIKA MS148 Part Description
Manufacturer
Technical Data
| Product | Starter |
| Letrika P/N | IS1090 |
| Voltage | 12 V |
| Power | 3.2 kW |
| OEM P/N | 11.132.180 |
| MAHLE P/N | MS 148 |
| Description | AZE4253 |
| No. of pinion teeth | 10 |
| Module | 2.54 mm |
| Distance over two teeth | 12.29 mm |
| Outside diameter of pinion | 32 mm |
| Notes | With reduction gear |
| Letrika P/N | OEM P/N | MAHLE P/N | |
|---|---|---|---|
| IS1090 | 11.132.360 AZE4280 12V 3,2kW | Superseded unit, see available P/N IS1090 | |
| IS1090 | 11.132.180 AZE4253 12V 3,2kW | MS 148 | Available |
| IS1090 | 11.131.802 AZE4176 12V 3,2kW | Superseded unit, see available P/N IS1090 | |
| IS1090 | 11.131.533 AZE4124 12V 3,0kW | Superseded unit, see available P/N IS1090 | |
| IS1090 | 11.131.198 AZE4557 12V 3,0kW | Superseded unit, see available P/N IS1090 |
Related Parts
| Letrika P/N | MAHLE P/N | DESCRIPTION | POS |
|---|---|---|---|
| 16.285.533 | MSX 1042 | Rear-end bracket | 15 |
| 16.915.719 | MSX 1111 | Switch | 4 |
| 16.908.492 | MSX 1227 | Lever | 7 |
| 16.907.753 | MSX 1366 | Armature | 9 |
| 16.283.482 | MSX 227 | Drive end bracket | 1 |
| 16.908.985 | MSX 288 | Fixing set | 11 |
| 16.908.753 | MSX 322 | Set of brushes | 14 |
| 16.911.622 | MSX 552 | Reduction gear | 8 |
| 15.120.243 | MSX 684 | Bearing | 2 |
| 16.902.854 | MSX 800 | Pinion with clutch | 6 |
| 16.282.589 | MSX 905 | Stator | 12 |
| 16.908.752 | MX 5 | Brush holder | 13 |
LETRIKA MS148 Cross References
| Brand | Part Number |
|---|---|
| IS1090, MS 148 | |
| BOMAG | 317 801 57 |
| BOSCH | 0001326331, 0001362319, 0001367079, SR 9943 X, SR 9973 X |
| CARGO | 110627, 112267 |
| CASE | 116 930 A1, A 187 549, A 47 496, R 393 41 |
| CUMMINS | 0191-2346, 2346, 3 283 329, 3 283 330, 3 604 481 RX, 3 604 482 RX, 3 604 648, 3 604 648 RX, 3 604 654, 3 604 654 RX, 3 901 365, 3 901 386, 3 904 445, 3 905 480, 3 916 854, 3 935 070 |
| DELCO REMY | 10461497, 10465026, 10465043, 10465399, 10465403, 10465407, 10479621, 1113276, 1113292 |
| DENSO | 028000-5880, 028000-5881, 028000-5882, 028000-5883, 028000-5884, 28000-5880, 28000-5881, 28000-5882, 28000-5883, 28000-5884 |
| DIXIE | 201-28106 |
| FORD | E3 TF 11000 AA, E3 TU 11000 AA, E3 TZ 1100 2B, E4 TF 11000 AA |
| HELLA | 8EA 730 322-001, US 845 |
| LESTER | 16658, 17037, 32295, 32296, 3300, 6573, 6583, 6869 |
| LUCAS | LRS01256 |
| MERCURY | 50805991 |
| MITSUBISHI | M3T90071, M3T90072 |
| ONAN (USA) | A051Z3186 |
| PRESTOLITE | 35258940 |
| WHITE | 30-3480429-1 |
| WILSON | 91-01-4313, 91-01-4366, 91-04-7807, 91-15-7202, 91-27-3039, 91-29-3035 |
