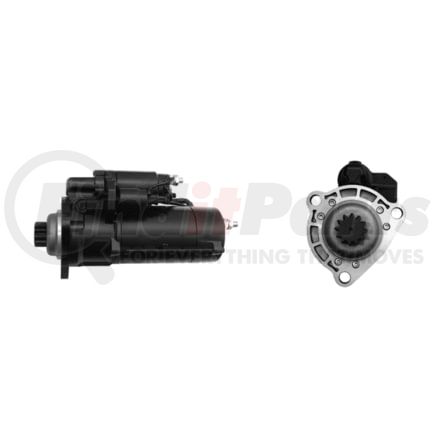

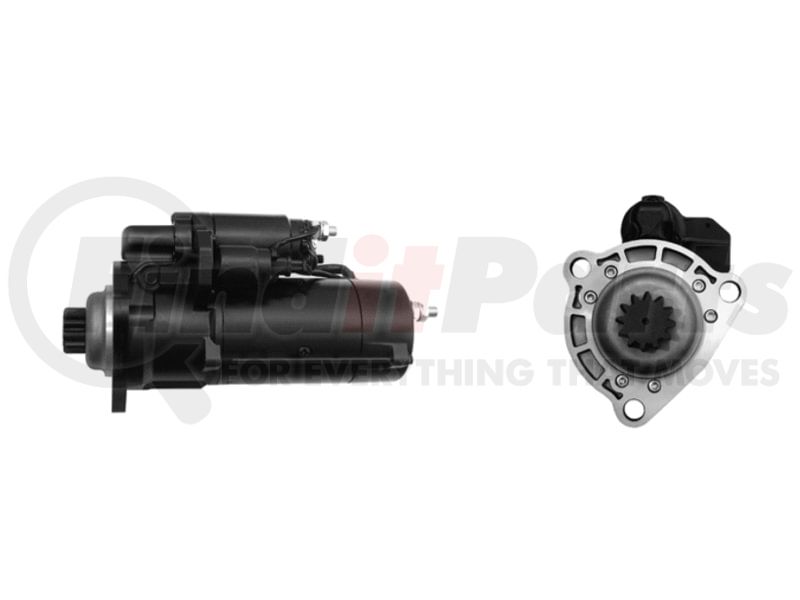

(888) 312-8812 Login SignupLETRIKA MS76 Starter 12V, 12T, Letrika/MAHLE AZG, 6.5kW
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
LETRIKA MS76 Part Description
Manufacturer
Technical Data
| Product | Starter |
| Letrika P/N | IS1182 |
| Voltage | 12 V |
| Power | 6.5 kW |
| OEM P/N | 11.131.906 |
| MAHLE P/N | MS 76 |
| Description | AZG4688 |
| No. of pinion teeth | 12 |
| Module | 3.175 mm |
| Distance over two teeth | 15.68 mm |
| Outside diameter of pinion | 46.5 mm |
| Notes | Insulated ground |
| Nominal power is 5,0kW according to ISO 8856 | |
| Noseless version of starter | |
| Soft start relay | |
| With reduction gear |
| Letrika P/N | OEM P/N | MAHLE P/N | |
|---|---|---|---|
| IS1182 | 11.131.906 AZG4688 12V 6,5kW | MS 76 | Available |
| IS1182 | 11.131.654 AZG4662 12V 5,0kW | Superseded unit, see available P/N IS1182 |
Related Parts
| Letrika P/N | MAHLE P/N | DESCRIPTION | POS |
|---|---|---|---|
| 16.915.432 | MSX 1002 | Switch | 4 |
| 16.915.433 | MSX 1015 | Supplementary switch | 5 |
| 16.915.547 | MSX 1103 | Brush holder | 13 |
| 16.907.862 | MSX 1417 | Drive end bracket | 1 |
| 16.915.874 | MSX 1484 | Pinion | 17 |
| 15.125.004 | MSX 1672 | Rear-end bracket | 15 |
| 16.915.436 | MSX 1674 | Set of brushes | 14 |
| 16.915.431 | MSX 1683 | Central cover | 3 |
| 16.915.910 | MSX 1720 | Fixing set | 11 |
| 16.915.434 | MSX 1765 | Stator | 12 |
| 16.908.340 | MSX 305 | Bearing | 10 |
| 16.915.207 | MSX 560 | Lever | 7 |
| 16.907.885 | MSX 938 | Reduction gear | 8 |
| 16.907.886 | MSX 939 | Armature | 9 |
