RAYBESTOS PGD1549M Part Description
Manufacturer
Product Description

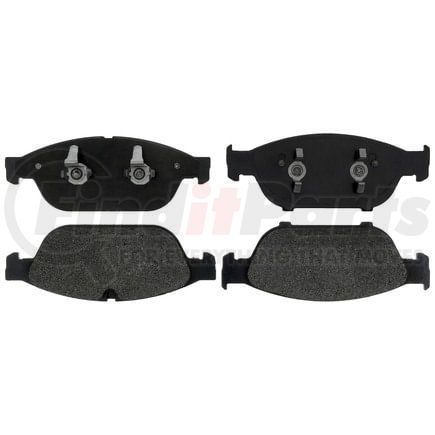

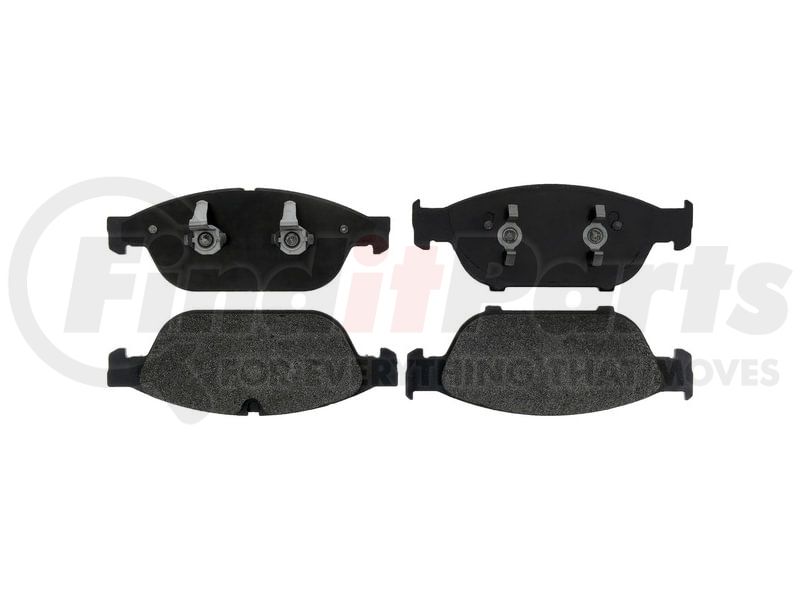

Raybestos Element3 Metallic Brake Pad Set
Application Summary
2017-2016,2013-2012 Audi A6 Quattro Front, 2018-2016,2013-2012 Audi A7 Quattro Front, 2017-2013,2011 Audi A8 Quattro Front, 2017 Audi A6 Front
Features & Benefits
- Application Specific Formulations
- Application-specific formulas for quiet operation and superior stopping power. Element3(R) brake pads are engineered to combine the best of ceramic & semi-metallic formulations all into one brake pad.
- Noise Dampening Shims
- Premium multi-layer shims on EHT(R) formulations promote quiet stopping in a wide variety of temperature ranges and vehicle platforms.
- EHT(R) Enhanced Hybrid Technology
- EHT(R) Enhanced Hybrid Technology formulations have a premium blend of friction materials allowing optimal performance, improved pad wear & durability, and increased stopping power during aggressive braking.
- Hardware & Electronic Wear Sensors
- Stainless steel brake hardware and electronic wear sensors included. (where applicable)
RAYBESTOS PGD1549M Specifications
Product Attributes
| Chamfered Edges | No |
| FMSI Number | D1549-8758 |
| Friction Material Attachment | Integrally Molded |
| Friction Material Composition | Metallic |
| Friction Material Slot Type | Unslotted |
| Inner Pad Height | 2.780 in |
| Inner Pad Overall Thickness | 0.760 IN |
| Inner Pad Width | 7.600 in |
| Mounting Hardware Included | Yes |
| Outer Pad Height | 2.780 IN |
| Outer Pad Overall Thickness | 0.760 in |
| Outer Pad Width | 7.610 IN |
| Pad Shim Attachment Type | Staked |
| Pad Shims Attached | Yes |
| Pad Shims Included | Yes |
| Pad Wear Sensor Attached | No |
| Pad Wear Sensor Included | No |
| Slotted | No |
Additional Information
| Country of Origin (Primary) | MX |
| Canadian Harmonizing Tariff Code | 8708301900 |
| Harmonized Tariff Code (HTS) | 8708305040 |
| UPC | 00887213032628 |
RAYBESTOS PGD1549M Cross References
| Brand | Part Number |
|---|---|
| AGNA Brakes | ALD1549M |
| AKEBONO | EUR1549 |
| ATE BRAKE PRODUCTS | 607280, LD7280 |
| Advance Auto Parts | PMD1549H |
| Audi | 4G0698151B, 4H0698151G |
| BrakeBest | MKD1549 |
| Brembo | P85127 |
| Centric Parts | 104.15490, 105.15490, 300.15490, 308.15490, 500.15490, 103.15490 |
| PAGID Racing | 355016031 |
| PowerStop | 17-1549 |
| VEMO | V10721283 |
| Volkswagen | 4G0698151S, 4G0698151M |
| Wagner Brake | MX1549 |
RAYBESTOS PGD1549M Fits Vehicles
- Audi A7 (2016-2017)
- Audi A6 (2012, 2016-2017)
- Audi A8 (2016)
- Audi A6 Quattro (2012-2013, 2016-2017)
- Audi A7 Quattro (2012-2013, 2016-2018)
- Audi A8 Quattro (2011, 2013-2017)
