(888) 312-8812 Login SignupRAYBESTOS PGD1547M Raybestos Element3 Metallic Brake Pad Set
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS PGD1547M Part Description
Manufacturer
Product Description

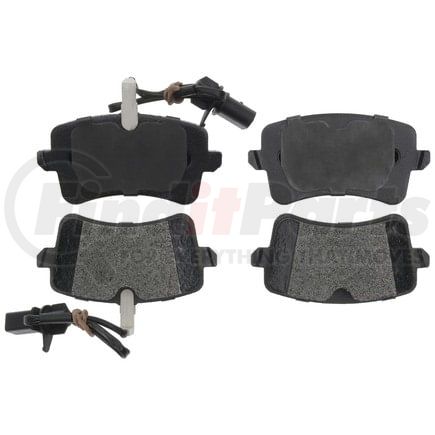

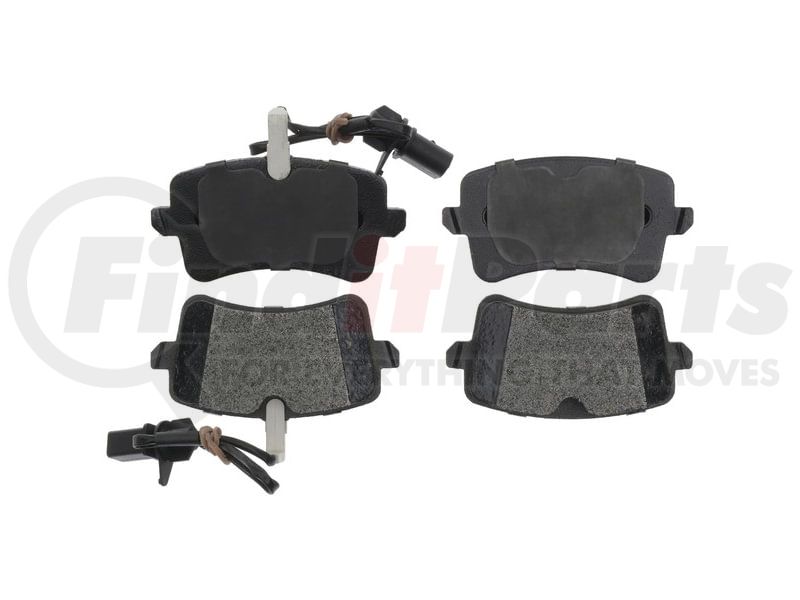

Raybestos Element3 Metallic Brake Pad Set
Application Summary
2017,2015-2012 Audi A6 Quattro Rear, 2017-2015 Porsche Macan Rear, 2018-2012 Audi A7 Quattro Rear, 2017-2011 Audi A8 Quattro Rear, 2017-2012 Audi A6 Rear, 2018-2013 Audi S6 Rear, 2018-2013 Audi S7 Rear, 2015-2013 Audi RS5 Rear
Features & Benefits
- Application Specific Formulations
- Application-specific formulas for quiet operation and superior stopping power. Element3(R) brake pads are engineered to combine the best of ceramic & semi-metallic formulations all into one brake pad.
- Noise Dampening Shims
- Premium multi-layer shims on EHT(R) formulations promote quiet stopping in a wide variety of temperature ranges and vehicle platforms.
- EHT(R) Enhanced Hybrid Technology
- EHT(R) Enhanced Hybrid Technology formulations have a premium blend of friction materials allowing optimal performance, improved pad wear & durability, and increased stopping power during aggressive braking.
- Hardware & Electronic Wear Sensors
- Stainless steel brake hardware and electronic wear sensors included. (where applicable)
RAYBESTOS PGD1547M Specifications
Product Attributes
| Chamfered Edges | Yes |
| FMSI Number | D1547-8755 |
| Friction Material Attachment | Integrally Molded |
| Friction Material Composition | Metallic |
| Friction Material Slot Type | Unslotted |
| Inner Pad Height | 2.370 in |
| Inner Pad Overall Thickness | 0.655 IN |
| Inner Pad Width | 4.590 in |
| Mounting Hardware Included | Yes |
| Outer Pad Height | 2.370 IN |
| Outer Pad Overall Thickness | 0.655 in |
| Outer Pad Width | 4.590 IN |
| Pad Electronic Wear Sensor Quantity Included | 1 |
| Pad Shim Attachment Type | Staked |
| Pad Shims Attached | Yes |
| Pad Shims Included | Yes |
| Pad Wear Sensor Attached | No |
| Pad Wear Sensor Included | No |
| Slotted | No |
Additional Information
| Country of Origin (Primary) | MX |
| Canadian Harmonizing Tariff Code | 8708301900 |
| Harmonized Tariff Code (HTS) | 8708305040 |
| UPC | 00887213034424 |
RAYBESTOS PGD1547M Cross References
| Brand | Part Number |
|---|---|
| AKEBONO | EUR1547, EUR1547A |
| ATE BRAKE PRODUCTS | 602769, 602770, 602773, LD2769, LD2770, LD2773 |
| Advance Auto Parts | GMKD1547 |
| Audi | 4G0698451A, 4G0698451B, 4H0698151D, 4H0698451A, 4H0698451C, 4H0698451D, 4H0698451L |
| Bendix | D1547 |
| BrakeBest | MKD1547 |
| Brembo | P85150N |
| Centric Parts | 102.15471, 104.15470, 104.15471, 105.15470, 300.15470, 300.15471, 308.15470, 308.15471, 500.15470, 500.15471 |
| PAGID Racing | 355015201, 355016061 |
| Porsche | 9A769845100 |
| PowerStop | 16-1547, 17-1547 |
| VAICO | V101024 |
| VEMO | V10721283 |
| Volkswagen | 4GO698451K |
| Wagner Brake | OEX1547AM |
RAYBESTOS PGD1547M Fits Vehicles
- Audi A7 (2016-2017)
- Porsche Macan (2015-2017)
- Audi RS7 (2014-2018)
- Audi RS5 (2013-2015)
- Audi S6 (2013-2018)
- Audi S8 (2013-2018)
- Audi S7 (2013-2018)
- Audi A6 (2012-2017)
- Audi A6 Quattro (2012-2017)
- Audi A7 Quattro (2012-2018)
- Audi A8 Quattro (2011-2017)
RAYBESTOS PGD1547M Customer Reviews
No reviews yet
Be the first to review this product!
RAYBESTOS PGD1547M Questions & Answers
No questions yet
Be the first to ask a question about this product!
