RAYBESTOS 981037R Part Description
Manufacturer
Product Description

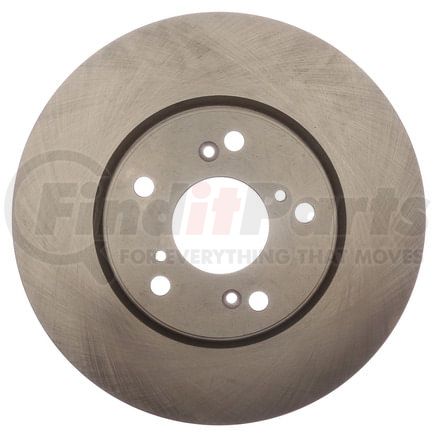

Raybestos R-Line Brake Rotor
Application Summary
2017-2013 Honda Accord Front, 2022-2016 Honda HR-V Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 981037R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.53 IN |
| Center Hole Diameter | 64.25 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.906 IN |
| Discard Thickness | 23 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 6.969 IN |
| Inside Diameter | 177 MM |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.5 IN |
| Mounting Bolt Hole Diameter | 12.7 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.984 IN |
| Nominal Thickness | 25 MM |
| Outside Diameter | 11.549 IN |
| Outside Diameter | 293.35 MM |
| Overall Height | 1.854 IN |
| Overall Height | 47.1 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213094312 |
RAYBESTOS 981037R Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | YH477744P |
| AUTOPARTSOURCE | 472652 |
| AUTOXTRA | AX901462 |
| AutoZone | 74032DG, 74032DL |
| Autoxtra | AX901462P |
| BRAKEBEST | 921569RGS, 981037, 981037FZN, 981037R, 981037RGS |
| BrakeBest | 921549RGS |
| Brembo | 09.D219.11 |
| CENTRIC | 120.40084, 120.40084CRY, 121.40084, 126.40084CSL, 126.40084CSR, 126.40084SL, 126.40084SR, 127.40084L, 127.40084R, 128.40084CL, 128.40084CR, 128.40084L, 128.40084R, 320.40084 |
| Centric Parts | 120.40084, 120.40084CRY, 121.40084, 126.40084CSL, 126.40084CSR, 126.40084SL, 126.40084SR, 127.40084L, 127.40084R, 128.40084CL, 128.40084CR, 128.40084L, 128.40084R, 320.40084, 320.40084F |
| DURA CORP | BR901462 |
| DuraGo | BR901462 |
| Dynamic Friction Company | 600-59037 |
| HONDA | 45251T2GA00, 45251T2GA01, 45251T7WA01, 45251T7WA02, 45251T8MG01 |
| MAGMA PRODUCTS | PMR265108 |
| NEWTEK AUTOMOTIVE | R1462 |
| Newtek Automotive USA | R1462 |
| PEP BOYS | 901462G |
| POWERSTOP | JBR1584EVC |
| PROMAX | 14-610004 |
| Qualis | 44762 |
| TopNotch | TN981037GEO |
| UAP | 2901178, R40084 |
| WORLDPAC | 1407-477744 |
| Wagner Brake | BD180567E |
| Winhere | 6621549, 6621569, 6621724 |
RAYBESTOS 981037R Fits Vehicles
- Honda HR-V (2016-2022)
- Honda Accord (2013-2017)
