(888) 312-8812 Login SignupRAYBESTOS 981024R Raybestos R-Line Brake Rotor
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 981024R Part Description
Manufacturer
Product Description

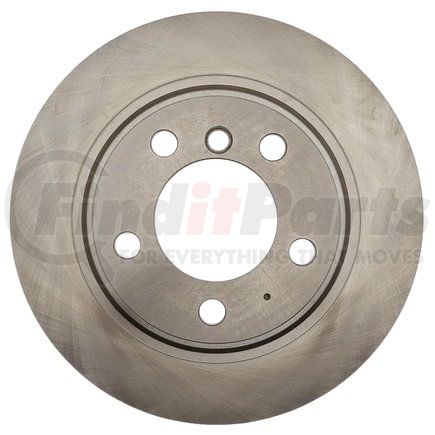

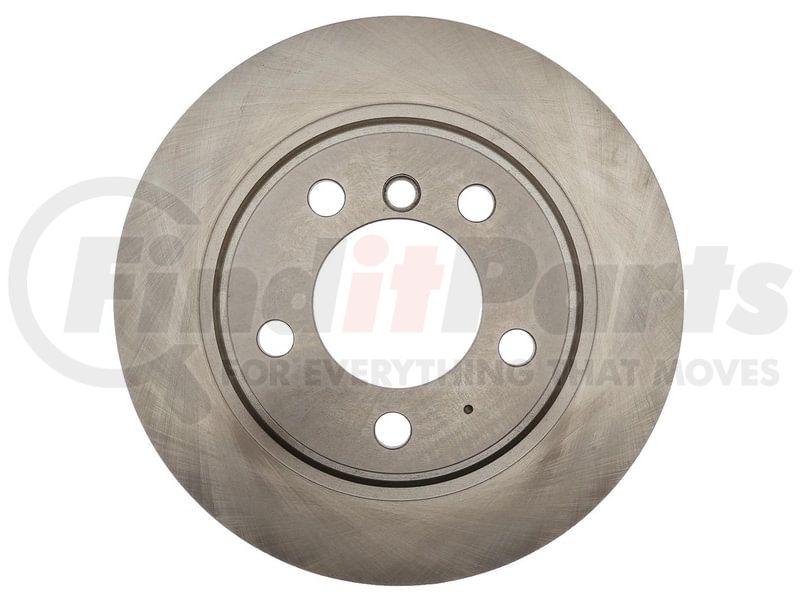

Raybestos R-Line Brake Rotor
Application Summary
2013 Mini Cooper Countryman Rear, 2013 Mini Cooper Paceman Rear
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 981024R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 3.11 IN |
| Center Hole Diameter | 79 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.331 IN |
| Discard Thickness | 8.4 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 8.121 IN |
| Inside Diameter | 206.3 MM |
| Mounting Bolt Hole Circle Diameter | 4.724 IN |
| Mounting Bolt Hole Circle Diameter | 120 MM |
| Mounting Bolt Hole Diameter | 0.638 IN |
| Mounting Bolt Hole Diameter | 16.2 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.391 IN |
| Nominal Thickness | 9.95 MM |
| Outside Diameter | 11.654 IN |
| Outside Diameter | 296 MM |
| Overall Height | 1.975 IN |
| Overall Height | 50.15 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213082746 |
RAYBESTOS 981024R Cross References
RAYBESTOS 981024R Fits Vehicles
- Mini Cooper Paceman (2013)
- Mini Cooper Countryman (2013)
RAYBESTOS 981024R Customer Reviews
No reviews yet
Be the first to review this product!
RAYBESTOS 981024R Questions & Answers
No questions yet
Be the first to ask a question about this product!
