(888) 312-8812 Login SignupRAYBESTOS 681014R Raybestos R-Line Brake Rotor
MSRP: $107.29
$10399
Save $3.30
Limited availability at this price!
In Stock
Get it by Wednesday, Feb 25
RAYBESTOS 681014R Part Description
Manufacturer
Product Description

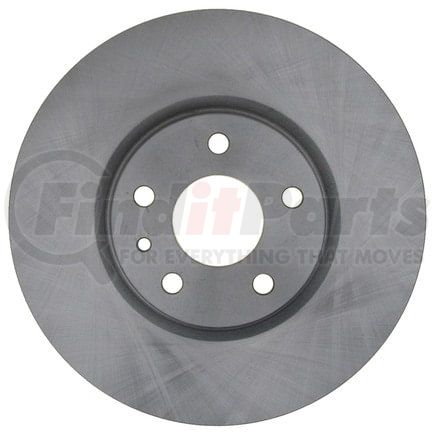

Raybestos R-Line Brake Rotor
Application Summary
2020-2013 Ford Fusion Front, 2016-2013 Lincoln MKZ Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 681014R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.5 IN |
| Center Hole Diameter | 63.5 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.043 IN |
| Discard Thickness | 26.5 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 6.929 IN |
| Inside Diameter | 176 MM |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.252 IN |
| Mounting Bolt Hole Circle Diameter | 108 MM |
| Mounting Bolt Hole Diameter | 0.543 IN |
| Mounting Bolt Hole Diameter | 13.8 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.104 IN |
| Nominal Thickness | 28.05 MM |
| Outside Diameter | 11.811 IN |
| Outside Diameter | 300 MM |
| Overall Height | 2.01 IN |
| Overall Height | 51.05 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213080155 |
RAYBESTOS 681014R Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | YH479085P, YH479085, YH479085C |
| AUTOPARTSOURCE | 492746 |
| AUTOXTRA | AX901162 |
| AUTOZONE | 75014, 75014DG, 75014DL |
| Autoxtra | AX901162P |
| BENDIX | PRT6204 |
| BRAKEBEST | 621516RGS, 681014, 681014R |
| Brembo | 09.N255.21 |
| CENTRIC | 120.61104, 121.61104, 126.61104CSL, 126.61104CSR, 126.61104SL, 126.61104SR, 127.61104L, 127.61104R, 320.61104 |
| Centric Parts | 120.61104, 121.61104, 126.61104CSL, 126.61104CSR, 126.61104SL, 126.61104SR, 127.61104L, 127.61104R, 320.61104 |
| DURA CORP | BR601162, BR901162 |
| DuraGo | BR901162, BR90116202 |
| Dynamic Friction Company | 600-54259 |
| FORD | 2017128, DG9Z1125A, DG9Z1125C, DG9Z1125G, DG9Z1125GA, HG9Z1125A, KS7Z1125A |
| MAGMA PRODUCTS | PMR203090 |
| MOTORCRAFT | BRRF396 |
| Motorcraft | BRRF330, NBRR35 |
| NEWTEK AUTOMOTIVE | 54196, R1162 |
| Newtek Automotive USA | 54196, R1162 |
| POWERSTOP | AR85150EVC |
| PROMAX | 14-54196 |
| Qualis | 42286 |
| TopNotch | TN681014GEO |
| UAP | 2901164 |
| WAGNER BRAKE | BD180602 |
| WINHERE | 6621516 |
| WORLDPAC | 1407-479085, 1427-731779 |
| WORLDPARTS | WS1-154196 |
| Wagner Brake | BD180602E |
RAYBESTOS 681014R Fits Vehicles
- Lincoln MKZ (2013-2016)
- Ford Fusion (2013-2020)
