(888) 312-8812 Login SignupRAYBESTOS 680998R Raybestos R-Line Brake Rotor
MSRP: $108.71
$9899
Save $9.72
Limited availability at this price!
In Stock
Get it by Thursday, Mar 12
RAYBESTOS 680998R Part Description
Manufacturer
Product Description

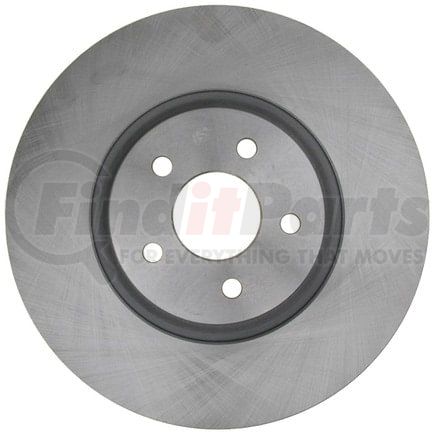

Raybestos R-Line Brake Rotor
Application Summary
2019-2013 Ford Escape Front, 2014-2013 Ford Focus Front, 2018-2014 Ford Transit Connect Front, 2019-2018 Lincoln MKC Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 680998R Specifications
Product Attributes
| Center Hole Diameter | 2.5 IN |
| Center Hole Diameter | 63.5 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.906 IN |
| Discard Thickness | 23 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 7.402 IN |
| Inside Diameter | 188 MM |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.252 IN |
| Mounting Bolt Hole Circle Diameter | 108 MM |
| Mounting Bolt Hole Diameter | 0.54 IN |
| Mounting Bolt Hole Diameter | 13.7 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.984 IN |
| Nominal Thickness | 25 MM |
| Outside Diameter | 12.598 IN |
| Outside Diameter | 320 MM |
| Overall Height | 1.921 IN |
| Overall Height | 48.8 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213030181 |
RAYBESTOS 680998R Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | YH516223P |
| AUTOPARTSOURCE | 421510 |
| AUTOXTRA | AX901294 |
| AutoZone | 79900, 79900DG, 79900DL |
| BOSCH | 20011521 |
| BRAKEBEST | 20011521, 621691RGS, 680998, 680998FZN, 680998R, 680998RGS |
| Brembo | 09.C542.11, 09.C542.21 |
| CENTRIC | 121.39038 |
| Centric Parts | 120.39038, 121.39038, 125.39038 |
| DURA CORP | BR901294 |
| Dura Corp | BR900990 |
| DuraGo | BR900990, BR901294, BR901294-01, BR901294-02 |
| FORD | 1829608, 1844117, CV6Z1125B, CV6Z1125D, CV611125FA, DV611125BC, DV6Z1125C |
| Ford | KU2Z1V125B |
| NAPA BRAKES | SDK6740 |
| NEWTEK AUTOMOTIVE | 54192, R1294 |
| Newtek Automotive USA | 54192, R1294 |
| POWERSTOP | EBR897EVC |
| Qualis | 42308, 45440 |
| TopNotch | TN680998GEO |
| VOLVO | 31400818, 314008180, 31400938, 314009380 |
| WORLDPAC | 1407-516223, 1427-731977 |
| WORLDPARTS | WS1-154192 |
RAYBESTOS 680998R Fits Vehicles
- Volvo V50 (2005-2011)
- Volvo S40 (2004-2012)
- Volvo C70 (2006-2013)
- Lincoln MKC (2018-2019)
- Ford Transit Connect (2014-2018)
- Ford Focus (2013-2018)
- Ford Escape (2013-2019)
