RAYBESTOS 980963 Raybestos Specialty - Street Performance Coated Brake Rotor

No Stock Available

We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.

We may have similar parts for sale. Search Alternatives >

RAYBESTOS 980963 Part Description

Manufacturer

RAYBESTOS

Product Description

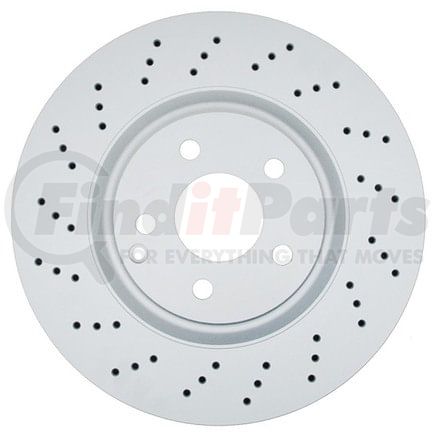

Raybestos Specialty - Street Performance Coated Brake Rotor

Application Summary

2009-2006 Mercedes-Benz E350 Front, 2012-2007 Mercedes-Benz SL550 Front, 2003 Mercedes-Benz SL500 Front, 2009-2007 Mercedes-Benz E550 Front

Features & Benefits

  • Application Specific Enhanced Iron
  • Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
  • Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
  • Cooling Vanes
  • The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
  • Application Specific Coating
  • Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
  • Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
  • Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
  • Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
  • Turned Finish
  • Turned finish minimizes noise and improves responsiveness for smoother stops.
  • S-Groove Slot
  • Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
  • Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.

RAYBESTOS 980963 Specifications

Product Attributes

ABS Tone Ring Included No
Center Hole Diameter 2.638 IN
Center Hole Diameter 67 MM
Conventional Or Drum-In-Hat Type Rotor Conventional
Discard Thickness 1.181 IN
Discard Thickness 30 MM
Harmonize Code 8708.30.5030
Inside Diameter 8.35 IN
Inside Diameter 212.1 MM
Mounting Bolt Hole Circle Diameter 4.409 IN
Mounting Bolt Hole Circle Diameter 112 MM
Mounting Bolt Hole Quantity 5
Nominal Thickness 1.26 IN
Nominal Thickness 32 MM
Outside Diameter 12.99 IN
Outside Diameter 329.95 MM
Overall Height 2.54 IN
Overall Height 64.5 MM
Salability Restrictions No
Solid Or Vented Type Rotor Vented
Stud/Lug Hole Quantity 5
Surface Type X Drilled
UNSPSC Code 25171715

Additional Information

Country of Origin (Primary) DE
Canadian Harmonizing Tariff Code 8708309990
Harmonized Tariff Code (HTS) 8708305030
UPC 00887213020137

RAYBESTOS 980963 Cross References

BrandPart Number
ADVANCE AUTO PARTSN1000159250ZIC
ATE BRAKE PRODUCTS432153, SP32153
AUTOZONE45397, 76601, 76601DG
Advance Auto PartsYH200915
BENDIXPRT5874
BRAKEBEST980963, 980963RGS
CENTRIC120.35078, 121.35078, 128.35078, 128.35078CRY, 228.35078, 320.35078, 320.35078F
Centric Parts128.35078, 128.35078CRY, 228.35078, 320.35078, 320.35078F, 120.35078, 121.35078
DURA CORPBR34503
MAGMA PRODUCTSPSR383051
MERCEDES-BENZ2304210812, 230421081239
POWERSTOPEBR866EVC
PROMAX14-34503
Qualis45515, 95515
UAPR35078
VAICOV3080077
WAGNER BRAKEBD126513
WINHERE6621057
WORLDPAC1427-530167
Winhere6621057DR

RAYBESTOS 980963 Fits Vehicles

  • Mercedes-Benz E500 (2004-2005)
  • Mercedes-Benz E550 (2007-2009)
  • Mercedes-Benz SL550 (2007-2012)
  • Mercedes-Benz E350 (2006-2009)
  • Mercedes-Benz SL500 (2003-2004)
