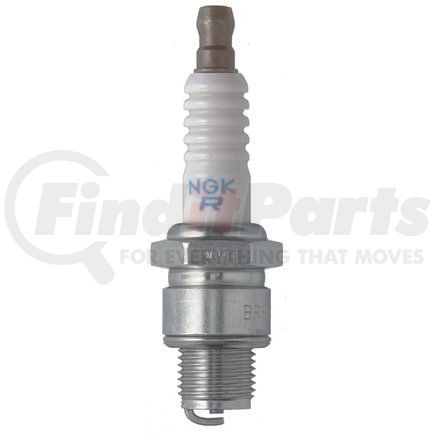

NGK SPARK PLUGS BR8HS SOLID Part Description
Manufacturer
Product Description
NGK Standard Spark Plug
Features & Benefits
- ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction nickel alloy center electrode provides consistent performance
- RECOMMENDED USAGE: Best for vehicles with OE nickel alloy plugs, not recommended on vehicles with factory precious metal plugs
- NGK's OE CERAMIC TECHNOLOGY: High grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- COLD-ROLLED THREADS: Prevents cross-threading and damage to cylinder heads
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
NGK SPARK PLUGS BR8HS SOLID Specifications
Product Attributes
| Part Number | BR8HS SOLID |
| Stock Number | 6715 |
| Short Style Spark Plug | No |
| Service Number | BR8HS SOLID |
| Resistance | 5000.0 82 |
| Ground Electrode Tip Design | Standard |
| Ground Configuration | J-Gap |
| Ground Electrode Core Material | Nickel |
| Washer(s) Included | Yes |
| Grade Type | Standard Replacement |
| Electrical Terminal Type | Non-Removable Nut |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Nickel |
| Pre-Gap Size | .028 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 13/16" |
| Insulator Height | 2.22 IN |
| Manufacturer Heat Range | 8 |
| Seat Type | Flat |
| Reach | 0.500 IN |
| Thread Diameter | 0.551 IN |
| Insulator Material | Ceramic |
| Resistor Type | Yes |
| Skirt Length | 0.0 IN |
| Ground Electrode Tip Material | Nickel |
| Skirt | No |
| Center Electrode Insulator Tip Projection | 0.04 IN |
| Center Electrode Design | Standard |
| Washer Type | Crush |
| Center Electrode Projection | Non-Projected |
| Metallurgy | Copper |
| Thread Type Standard | Metric |
| Pre-Gap Size | 0.7 MM |
| Insulator Height | 56.3 MM |
| Reach | 12.7 MM |
| 6648 | 0.0 MM |
| Thread Size | M14 - 1.25 |
| Center Electrode Insulator Tip Projection | 1.0 MM |
Additional Information
| Warranty Time UOM | MO |
| Warranty Time | 2 |
| Country of Origin (Primary) | JP |
| Harmonized Tariff Code (HTS) | 8511100000 |
| UPC | 00087295167151 |
| VMRS Code | 033003005 |
| UNSPSC | 26101732 |
NGK SPARK PLUGS BR8HS SOLID Cross References
| Brand | Part Number |
|---|---|
| AUTOLITE | 4092 |
| N/A | BR8HS SOLID |
| NGK | 6715 |
NGK SPARK PLUGS BR8HS SOLID Fits Vehicles
- Yamaha BR250T Bravo (2007-2009, 2011)
- KTM 50 SX Pro Jr LC (2002)
- KTM 50 SX Pro Sr LC (2001-2002)
- KTM 50 Jr Adventure (2001-2002)
- KTM 50 Sr Adventure (2000-2002)
- KTM 50 Mini Adventure (2000-2002)
- Yamaha BR250T Bravo LT (1990, 1992-2001)
- Yamaha BR250T Bravo T (1987-1989, 1991, 2008-2010)
- Yamaha BR250 Bravo (1982-1990, 1992-1993)
