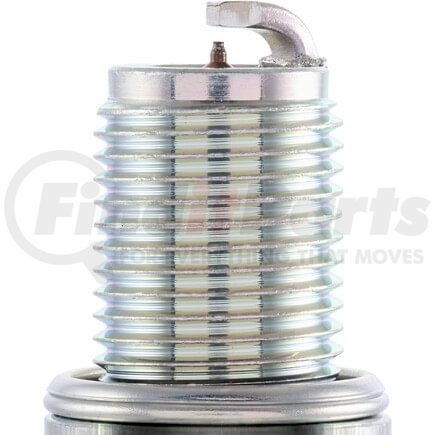

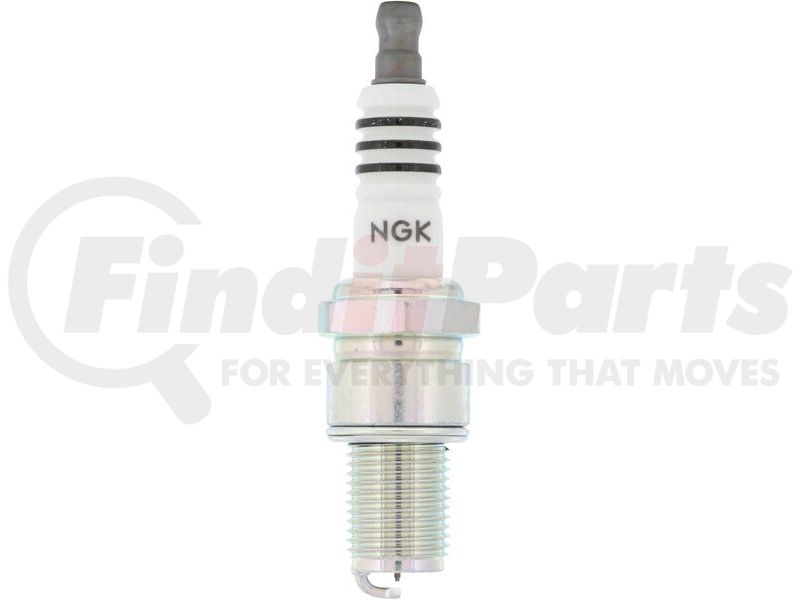

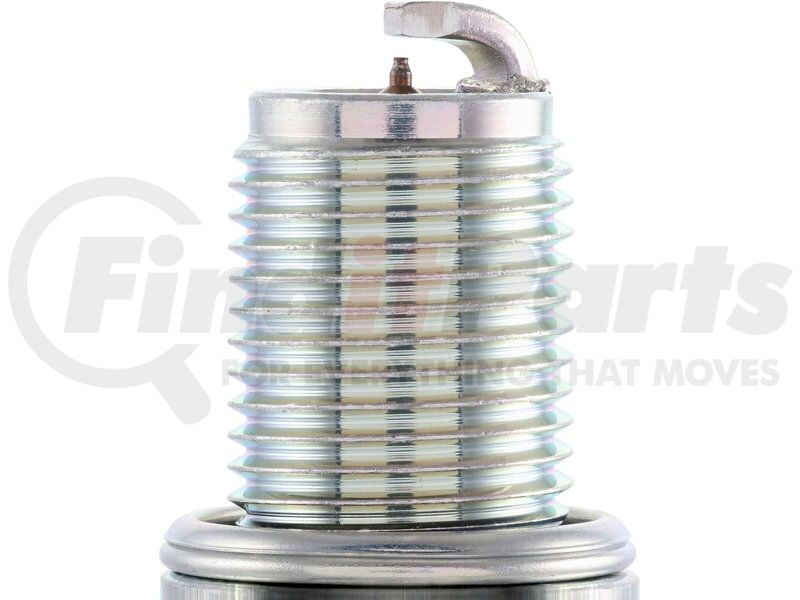

NGK SPARK PLUGS BR8EIX SOLID Part Description
Manufacturer
Product Description
NGK Iridium IX Spark Plug
Features & Benefits
- SINGLE IRIDIUM TIP: Fine wire 0.6 millimeter iridium tip center electrode ensures high durability and a consistently stable spark
- IRIDIUM ALLOY CENTER ELECTRODE: Iridium's density (6x that of platinum) and extremely high melting point is perfect for modern high efficiency engines
- TAPERED CUT GROUND ELECTRODE: Reduced quenching design produces outstanding ignitability, improved acceleration, fuel efficiency and durability
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
- RECOMMENDED USAGE: Modified or high performance applications, or as an upgrade to OE nickel alloy spark plugs
NGK SPARK PLUGS BR8EIX SOLID Specifications
Product Attributes
| Stock Number | 6747 |
| Part Number | BR8EIX SOLID |
| Short Style Spark Plug | No |
| Service Number | BR8EIX SOLID |
| Resistance | 5000.0 82 |
| Ground Electrode Tip Design | Taper Cut |
| Ground Configuration | J-Gap |
| Ground Electrode Core Material | Nickel |
| Washer(s) Included | Yes |
| Grade Type | Performance |
| Electrical Terminal Type | Non-Removable Nut |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Iridium |
| Pre-Gap Size | .032 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 13/16" |
| Insulator Height | 2.13 IN |
| Manufacturer Heat Range | 8 |
| Seat Type | Flat |
| Reach | 0.750 IN |
| Thread Diameter | 0.551 IN |
| Insulator Material | Ceramic |
| Resistor Type | Yes |
| Skirt Length | 0.0 IN |
| Ground Electrode Tip Material | Nickel |
| Skirt | No |
| Center Electrode Insulator Tip Projection | 0.06 IN |
| Center Electrode Design | Fine Wire |
| Washer Type | Crush |
| Center Electrode Projection | Non-Projected |
| Thread Size | M14 - 1.25 |
| Metallurgy | Single Iridium |
| Thread Type Standard | Metric |
| Pre-Gap Size | 0.8 MM |
| Insulator Height | 54.0 MM |
| Reach | 19.0 MM |
| 6648 | 0.0 MM |
| Center Electrode Insulator Tip Projection | 1.5 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8511100000 |
| Warranty Time UOM | MO |
| Warranty Time | 2 |
| Country of Origin (Primary) | JP |
| UPC | 00087295167472 |
| VMRS Code | 033003005 |
| UNSPSC | 26101732 |
NGK SPARK PLUGS BR8EIX SOLID Cross References
| Brand | Part Number |
|---|---|
| AUTOLITE | XS4063 |
| DENSO Auto Parts | 5316, IW24 |
| N/A | BR8EIX SOLID |
| NGK | 6747 |
NGK SPARK PLUGS BR8EIX SOLID Fits Vehicles
- Husqvarna TX300 Heritage (2023)
- Husqvarna TC250 Heritage (2023)
- KTM 300 XC (2023-2024)
- KTM 300 SX (2023-2024)
- KTM 250 XC (2023-2024)
- KTM 250 SX (2023-2024)
- Husqvarna TC250 (2023-2024)
- Polaris 340 INDY (2004)
- Ski-Doo Everest 500E (1980-1981)
- Ski-Doo Everest 500 (1980-1981)
- Moto-Ski Chimo 440 (1974-1975)
- Ski-Doo TNT 440 (1974-1975)
- Ski-Doo Skandic 377R (1986-1987)
- Ski-Doo SS25 (1984)
- Ski-Doo Safari Grand Luxe (1985-1986)
- Ski-Doo Nordik (1982-1983)
- Ski-Doo Blizzard 9700 (1983-1984)
- Ski-Doo Citation SS (1980-1983)
- Ski-Doo Blizzard 5500 MX (1981-1983)
- Ski-Doo Blizzard 5500 (1980-1981)
- Ski-Doo Skandic 277 (1983-1984)
- Ski-Doo Skandic 377 (1982-1986)
- Ski-Doo Everest L/C (1980-1983)
- Ski-Doo Elite (1978-1980)
- Ski-Doo Citation 4500 (1980-1983)
- Ski-Doo Citation 3500 (1980-1984)
- Moto-Ski Mirage IIE (1980-1983)
- Moto-Ski Futura L/C (1980-1982)
- Moto-Ski Mirage II (1980-1983)
- Moto-Ski Mirage I (1980-1982)
- Kawasaki JS750 750SXi (1995-1996)
- Polaris 340 Transport (2008)
- Polaris 340 LX (2007)
- Ski-Doo GTX 600 Sport (2006)
- KTM 200 XC (2006-2009)
- KTM 200 XC-W (2006-2016)
- Sea-Doo GTI RFI (2004)
- Sea-Doo GTI LE RFI (2004)
- Polaris Trail Blazer 400 (2003)
- Polaris 340 Edge (2003)
- Polaris 340 Classic (2003-2006)
- Kawasaki JS800 800 SX-R (2003-2011)
- Gas Gas Wild HP 300 (2003-2005)
- Yamaha XA800A WaveRunner XLT800 (2002-2004)
- Polaris Xplorer 400L (2002)
- Yamaha GP800A WaveRunner GP800R (2001-2005)
- Suzuki RM250 (2001-2002)
- Polaris 500 Classic Touring (2001-2002)
- Yamaha XA800 WaveRunner XL800 (2000-2001)
- Sea-Doo RX (2000-2002)
- Polaris Xplorer 250 4x4 (2000-2002)
- Polaris Scrambler 400 2x4 (2000-2002)
- Polaris 500 XC (2000)
- Yamaha XA1200 WaveRunner XL12 LTD (1999)
- Polaris XLT Classic (1999)
- Sea-Doo GTX RFI (1999-2002)
- Polaris 500 Classic (1999-2002, 2004-2006)
- Polaris 340 Touring (1999-2007)
- Polaris 340 Deluxe (1999-2002)
- Polaris 340 (1999, 2008)
- Yamaha GP800 WaveRunner GP800 (1998-2000)
- Sea-Doo GSI (1997-1998)
- Sea-Doo GSX Limited (1998-1999)
- Polaris 440 (1998)
- Polaris Lite Touring (1998)
- KTM 200 MXC (1998-2003)
- KTM 200 EXC (1998-2005)
- Kawasaki KX500 (1998-2004)
- Kawasaki JS750 SXI Pro (1998-2002)
- Kawasaki JH750 Xi Sport (1998-1999)
- Sea-Doo GS (1997-2001)
- Sea-Doo GTS (1997-2001)
- Sea-Doo SPX (1997-1999)
- Polaris XLT LTD SP (1997)
- Polaris XLT LTD (1997)
- Polaris Sportsman 400L (1997)
- Polaris XCF (1997-1998)
- Polaris Trail RMK (1997-1999)
- Polaris 500 (1997-2006)
- Polaris 500 RMK (1997-2001)
- Kawasaki KDX200 (1997-2006)
- Yamaha YZ250 (1996-2002)
- Polaris Xpress 400L (1996-1997)
- Sea-Doo GTI (1996-2003)
- Sea-Doo GSX (1996-1997)
- Sea-Doo GTX (1996-1997, 2000)
- Polaris Xpress 300 (1996-1999)
- Polaris Xplorer 300 4x4 (1996-2001)
- Polaris Trail Touring (1996-1999)
- Polaris Tran Sport (1996-1999)
- Polaris 500 Carb SKS (1996)
- Polaris 500 Carb RMK (1996)
- Polaris Classic Touring (1996-2000)
- Polaris 500 EFI RMK (1996)
- Sea-Doo HX (1995-1997)
- Polaris XLT SP (1995-1997)
- Polaris WideTrak LX (1995-2011)
- Sea-Doo XP (1995-1997, 2000)
- Polaris Xplorer 400 4x4 (1995-2001)
- Polaris XLT SKS (1995-1997)
- Polaris XLT SP LT (1995)
- Polaris XLT (1995-1997)
- Polaris Storm SKS (1995)
- Polaris Sport Touring (1995-1999)
- Polaris XLT Touring (1995-1999)
- Polaris XLT RMK (1995-1997)
- Polaris Scrambler 400 4x4 (1995-2002)
- Polaris Storm (1995)
- Polaris Sport 400L (1995-1999)
- Polaris Classic (1995-1998)
- Polaris 500 EFI (1995-1997)
- Polaris Big Boss 400L 6x6 (1995-1997)
- Polaris 500 Carb (1995-1996)
- Polaris 500 SKS (1995, 1997)
- Polaris 500 EFI SKS (1995-1996)
- Kawasaki JT750 STS (1995-1997)
- Kawasaki JH750 750ZXi (1995-1997)
- Wet Jet Duo 200 (1994)
- Polaris Sportsman 400 4x4 (1994-1996)
- Polaris Super Sport (1994-1999)
- Kawasaki JT750 ST (1994-1995)
- Kawasaki JH750 XiR (1994)
- Polaris WideTrak GT (1993-1997)
- Polaris Starlite GT (1993-1994)
- Polaris SL 750 (1993)
- Kawasaki JH750 Super Sport XI (1993-1997)
- Polaris Supertrak (1992)
- Polaris SL 650 (1992-1993)
- Polaris Lite Deluxe (1992-1998)
- Kawasaki JS750 750SX (1992-1995)
- Kawasaki JH750 750SS (1992-1997)
- Polaris Trail Deluxe (1991-1995)
- Polaris Trail (1991-1999)
- Polaris Sport GT (1991-1992)
- Polaris Lite GT (1991-1997)
- Polaris Trail Boss 250 (1991-1999)
- Ski-Doo Alpine II (1988-1991, 1995)
- Polaris Trail Super Trak (1991)
- Polaris Starlite (1991-1995)
- Polaris Sport (1991-1999)
- Polaris Lite (1991-1998)
- Polaris Big Boss 250 6x6 (1991-1993)
- Arctic Cat Lynx (1991)
- Arctic Cat Lynx Deluxe (1991)
- Yamaha ET400TR Enticer LTR (1990)
- Polaris Star Trak (1990)
- Polaris Trail Boss 350L 2x4 (1990-1993)
- Ski-Doo Alpine 508 (1990)
- Polaris Trail Boss 350L 4x4 (1990-1993)
- Polaris Trail Blazer 250 (1990-2006)
- Polaris Star (1990)
- Polaris Big Boss 250 4x6 (1989-1992)
- Ski-Doo Formula Plus LT (1989)
- Ski-Doo Formula Mach 1 (1989)
- Ski-Doo Nordik 60 (1988-1991)
- Polaris Trail Boss 250 2x4 (1988-1993)
- Ski-Doo Skandic R (1987)
- Polaris Trail Boss 250 4x4 (1987-1993)
- Yamaha CF300 Inviter (1986-1990)
- Polaris Scrambler 250 (1985-1986)
- Polaris Trail Boss 250R/ES (1985-1988)
