(888) 312-8812 Login SignupSPECTRA PREMIUM SP7223M Fuel Pump Module Assembly
Tap to view 3 more
$20049
Limited availability at this price!
1 Day Lead Time
Get it by Wednesday, Mar 11
SPECTRA PREMIUM SP7223M Part Description
Manufacturer
Product Description

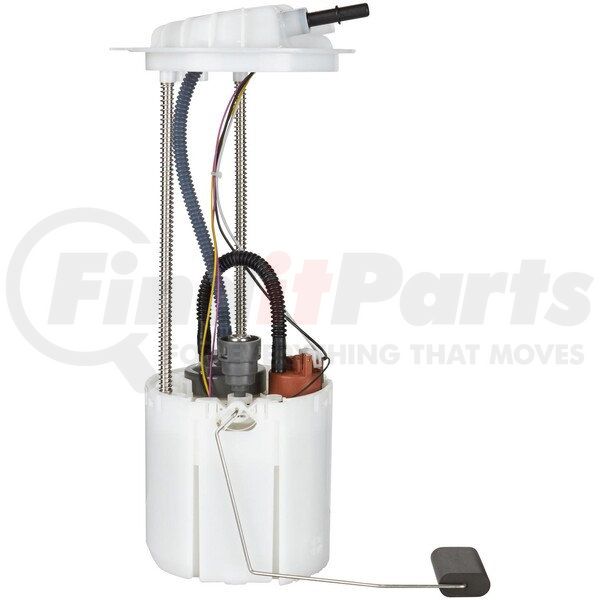

Fuel Pump Module Assembly
Application Summary
13 Ram 1500 (V6 3.6L); 17-15 Ram 1500 (V6 3.6L); 13 Ram 1500 (V8 4.7L)
fuel, fuel pump, module assembly, replacing a fuel pump, fuel pump replacement
14 RAM RAM PICKUP (V6-3.6L); 13 RAM RAM PICKUP (V8-4.7L); 14-13 RAM 1500 (V6-3.6L); 13 RAM 1500 (V8-4.7L)
SPECTRA PREMIUM SP7223M Specifications
Product Attributes
| California_prop 65 Message | Y |
| Negative Ground | Yes |
| Outlet Outside Diameter | .375 IN |
| Voltage | 12 2H |
| Maximum Pressure | 68 PS |
| Mounting Hardware Included | Yes |
| Grade Type | OEM |

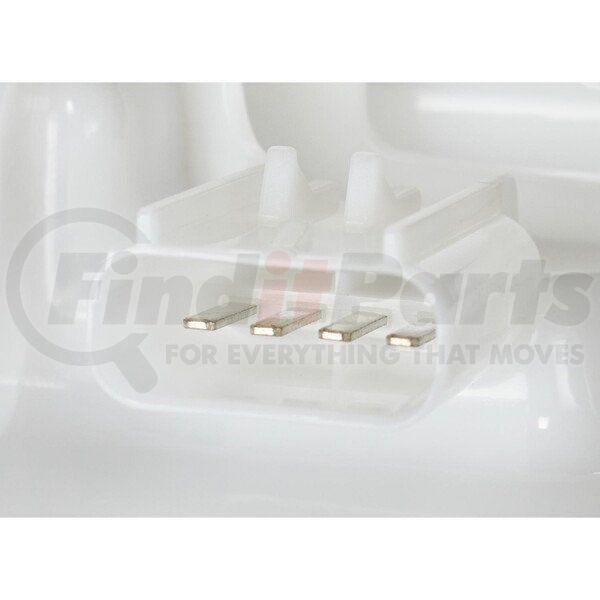

| Connector Shape | Rectangular |

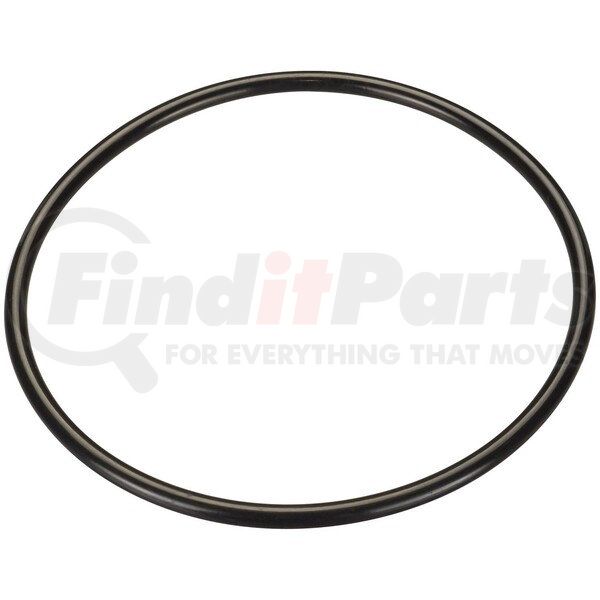

| Gasket Or Seal Included | Yes |
| Terminal Quantity | 4 |
| Lock Ring Included | No |
| Connector Gender | Male |
| Maximum Flow Rating | 74 GPH |
| Strainer Included | Yes |
| Outlet Type | Quick Connect |
| Inlet Quantity | 0 |
| Outlet Quantity | 1 |
| In Tank or External | In Tank |
| Resistance Ohms Empty | 990 82 |
| Resistance Ohms Full | 50 82 |
| Minimum Free Flow Rate | 65 GPH |
| Minimum Pressure | 62 PS |
| Wire Harness Included | No |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Harmonized Tariff Code (HTS) | 8413309030 |
| Warranty Special | Lifetime |
| Warranty Special UOM | LF |
| Canadian Harmonizing Tariff Code | 8413300090 |
| Core Class | FM |
| UPC | 00671607972276 |
| VMRS Code | 044003258 |
| UNSPSC | 25172409 |
SPECTRA PREMIUM SP7223M Cross References
| Brand | Part Number |
|---|---|
| AUTOBEST | F3281A |
| Carter | P77085M |
| Chrysler | 68197307AA |
| Delphi | FG1439 |
| GMB | 520-2625 |
| Keystone Auto Industries | TNKSP7223M |
| N/A | FP22077S, 4011337 |
| Precision Fuel Pumps | A46215 |
| URO | CY0516499 |
| US MOTOR WORKS | USEP21027M |
SPECTRA PREMIUM SP7223M Fits Vehicles
- Ram 1500 (2013, 2015-2017)
