GATES 24117 Part Description
Manufacturer
Product Description

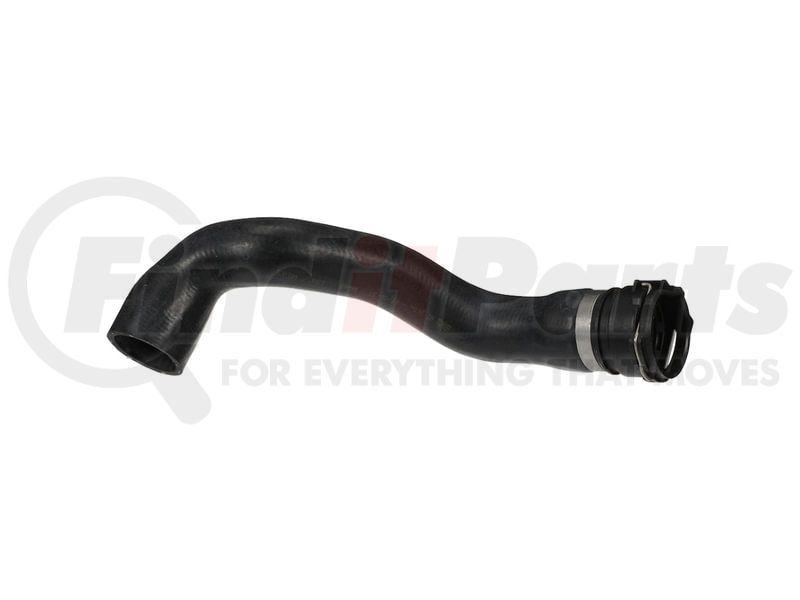

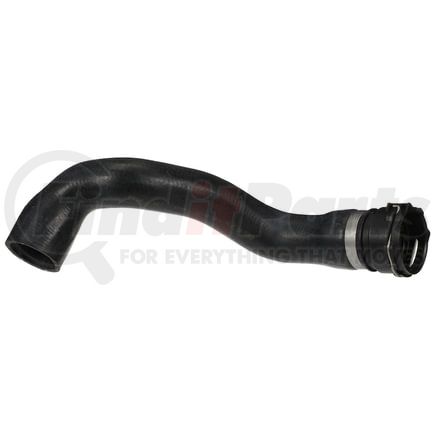

Premium Modular Coolant Hose
Application Summary
2002-1999 BMW, Z3, 6-Cyl. 2.5 L, Lower
Features & Benefits
- Specifically-engineered materials resist collapse under vacuum
- Specifically-engineered materials resist collapse under vacuum
- Engineered to resist electrochemical degradation - the leading cause of hose failure
- Engineered to resist electrochemical degradation – the leading cause of hose failure
- EPDM tube; synthetic fiber knit reinforcement, heat-, ozone- and chemical coolant-resistant EPDM cover
- Manufactured with OEM-exact hose components (quick connects, branch connectors/tees, sensors, etc.)
- Meets SAE 20R3 EC Class D1 under 25mm (1 in.) ID, SAE 20R4 EC Class D1 for 25mm (1 in.) ID and over
- Temperature Range: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
- Note: Gates recommends replacing clamps each time a new coolant hose is installed
- Caution: Do not use for fuel or oil transfer applications
GATES 24117 Specifications
Product Attributes
| Centerline Length | 13.75 IN |
| Modular | Yes |
| Modular Components Included | Female Quick Connector |
| Branch Quantity | 0 |
| Quick Connect Fitting Quantity | 1 |
| End 1 Inside Diameter | 1.5 in |
| End 2 Inside Diameter | 1.5 in |
| Contains Spring | No |
| Material | EPDM, Plastic, Steel |
| Molded | Yes |
| Centerline Length | 349 MM |
| End 1 Inside Diameter | 38 MM |
| End 2 Inside Diameter | 38 MM |
Additional Information
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (Schedule B) | 4009310000 |
| Stock Status | N |
| UPC | 00770075566083 |
| VMRS Code | 042004014 |
| UNSPSC | 40142000 |
GATES 24117 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 20628S |
| BMW | 11531716642 |
| Carquest | 24117 |
| Dayco | 72791, D72791 |
| NAPA Belts/Hose | 16770 |
| Rapro | R19256 |
| Rein | CHR0048P |
| URO | 11531716642 |
| VAICO | V201774 |
GATES 24117 Fits Vehicles
- BMW Z3 (1999-2002)
