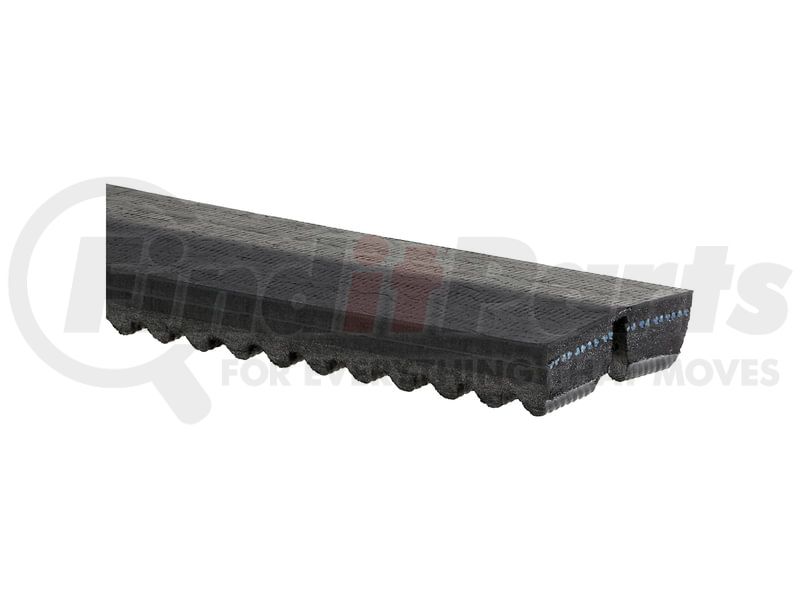

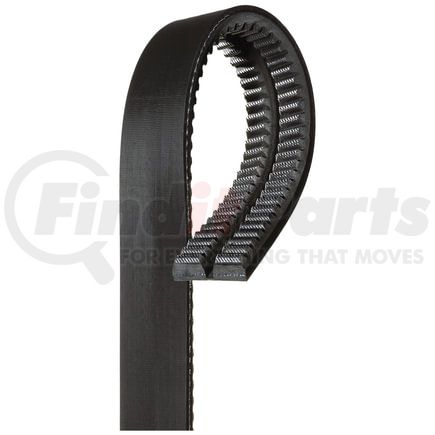

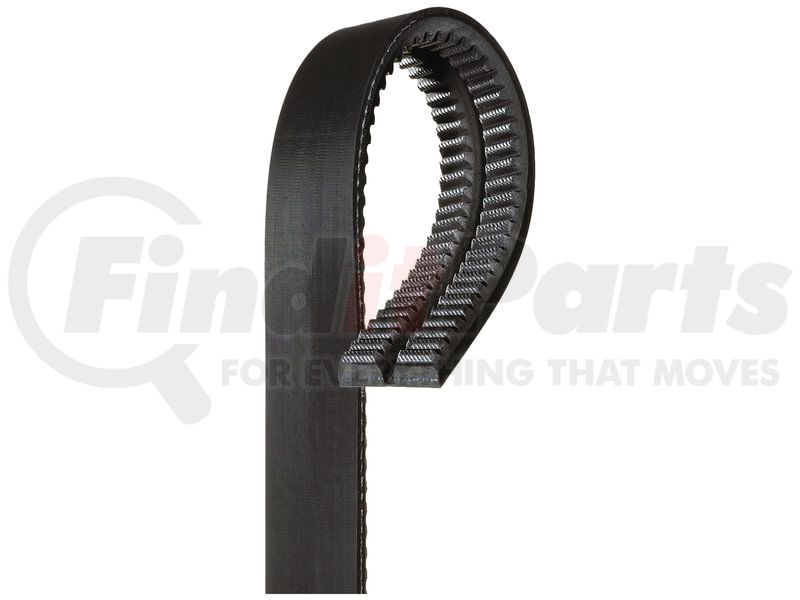

(888) 312-8812 Login SignupGATES 2/9700PB Green Stripe PowerBand Heavy-Duty Joined V-Belt
Tap to view 1 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
GATES 2/9700PB Part Description
Manufacturer
Product Description
Green Stripe PowerBand Heavy-Duty Joined V-Belt
Application Summary
1994-1991 International/Navistar, 3800, International/Navistar DT360 Diesel, Fan & Alt.
Features & Benefits
- Unique tensile cord design gives belt extra strength, added flexibility and shock-load resistance
- Molded notches reduce bending stress, especially on small diameter pulleys, while dissipating heat
- Even load distribution between strands provides better shock-load absorption
- Eliminates belt turnover or belts jumping off the drive
- Meets or exceeds SAE J636 specifications
- Meets RMA oil and heat resistant standards and static conductivity requirements
GATES 2/9700PB Specifications
Product Attributes
| Type | High Capacity Joined V-Belt |
| Cross Section Designation | HC50 |
| Angle | 36 |
| Strand Quantity | 2 |
| Top Width | 1.125 in |
| Top Width Per Strand | .5 IN |
| Outside Circumference | 70.86 in |
| Effective Length | 69.98 in |
| Construction | Notched |
| Notched | Yes |
| Belt Material | EPDM |
| Cord Material | Polyester |
| Top Width | 28 mm |
| Top Width Per Strand | 13 MM |
| Outside Circumference | 1800 mm |
| Effective Length | 1777 mm |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 4010343000 |
| Stock Status | N |
| UPC | 00072053114393 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
GATES 2/9700PB Cross References
GATES 2/9700PB Fits Vehicles
- International 4900 (1991)
- International 3600 (1992-1994)
- International 7100 (1990-1993)
- International 4800 (1990-1992)
- International 4700LP (1990-1992)
- International 4700 (1990-1992)
- International 3700 (1991-1992)
- International 3900FC (1991-1993)
- International 3800 (1991-1994)
- Chevrolet C60 (1990)
- Chevrolet C70 (1990)
- GMC C6000 (1990)
- GMC C7000 (1990)
