GATES 2/9660PB Part Description
Manufacturer
Product Description

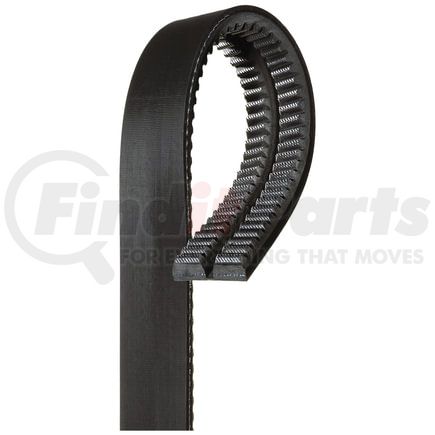

Green Stripe PowerBand Heavy-Duty Joined V-Belt
Application Summary
1990-1988 Chevrolet, B60 B6P Series, GM V-8 6.0 L, Fan & Alt.
Features & Benefits
- Unique tensile cord design gives belt extra strength, added flexibility and shock-load resistance
- Molded notches reduce bending stress, especially on small diameter pulleys, while dissipating heat
- Even load distribution between strands provides better shock-load absorption
- Eliminates belt turnover or belts jumping off the drive
- Meets or exceeds SAE J636 specifications
- Meets RMA oil and heat resistant standards and static conductivity requirements
GATES 2/9660PB Specifications
Product Attributes
| Type | High Capacity Joined V-Belt |
| Cross Section Designation | HC50 |
| Angle | 36 |
| Strand Quantity | 2 |
| Top Width | 1.125 in |
| Top Width Per Strand | .5 IN |
| Outside Circumference | 66.87 in |
| Effective Length | 65.99 in |
| Construction | Notched |
| Notched | Yes |
| Belt Material | EPDM |
| Cord Material | Polyester |
| Top Width | 28 mm |
| Top Width Per Strand | 13 MM |
| Outside Circumference | 1698 mm |
| Effective Length | 1676 mm |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4010323000 |
| Country of Origin (Primary) | US |
| Stock Status | N |
| UPC | 00072053175998 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
GATES 2/9660PB Cross References
GATES 2/9660PB Fits Vehicles
- Mack MH (1994)
- Peterbilt 377 (1990-1991)
- Mack RW (1990-1993)
- Mack RM (1990-1993)
- Mack RD (1990-1993)
- Mack RB (1989-1993)
- Peterbilt 379 (1990-1991, 1994, 1996)
- Peterbilt 375 (1990-1996)
- Peterbilt 357 (1990-1996)
- Peterbilt 378 (1989-1996)
- Chevrolet P60 (1983-1990)
- GMC B6000 (1989-1991)
- Chevrolet B60 (1988-1990)
- GMC P6000 (1983-1990)
- Blue Bird SHL All American (1988-1989)
