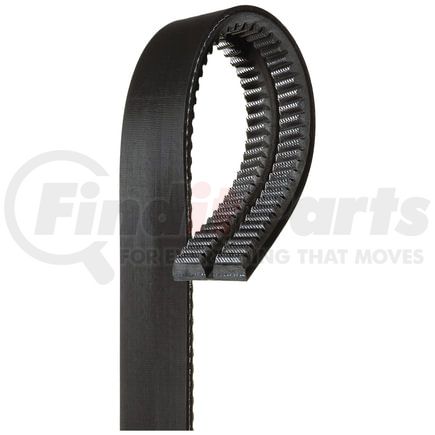

(888) 312-8812 Login SignupGATES 2/9650PB Green Stripe PowerBand Heavy-Duty Joined V-Belt
Tap to view 1 more
$7599
Limited availability at this price!
5 Day Lead Time
Get it by Friday, Mar 6
GATES 2/9650PB Part Description
Manufacturer
Product Description
Green Stripe PowerBand Heavy-Duty Joined V-Belt
Application Summary
1996-1990 Kenworth, W900, Caterpillar 3406 Diesel, Alt. & A.C.
Features & Benefits
- Unique tensile cord design gives belt extra strength, added flexibility and shock-load resistance
- Molded notches reduce bending stress, especially on small diameter pulleys, while dissipating heat
- Even load distribution between strands provides better shock-load absorption
- Eliminates belt turnover or belts jumping off the drive
- Meets or exceeds SAE J636 specifications
- Meets RMA oil and heat resistant standards and static conductivity requirements
GATES 2/9650PB Specifications
Product Attributes
| Type | High Capacity Joined V-Belt |
| Cross Section Designation | HC50 |
| Angle | 36 |
| Strand Quantity | 2 |
| Top Width | 1.125 in |
| Top Width Per Strand | .5 IN |
| Outside Circumference | 65.87 in |
| Effective Length | 64.99 in |
| Construction | Notched |
| Notched | Yes |
| Belt Material | EPDM |
| Cord Material | Polyester |
| Top Width | 28 mm |
| Top Width Per Strand | 13 MM |
| Outside Circumference | 1673 mm |
| Effective Length | 1651 mm |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4010323000 |
| Country of Origin (Primary) | US |
| Stock Status | S |
| UPC | 00072053175981 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
GATES 2/9650PB Cross References
| Brand | Part Number |
|---|---|
| 85410037 | |
| ACDelco | 2T17650 |
| Alliance Truck Parts | GT2PB17652, GT2PB17652E |
| CARQUEST | 2/9650PB |
| CONTINENTAL AG | 2-17651TT |
| DAYCO | 17650 |
| Dayco | 2B17650 |
| GOODYEAR BELTS | 2/17650 |
| Goodyear | 2/17651TT |
| NAPA | 25-16505-2 |
| NAPA Belts/Hose | 25-9650-2, 2/9650PB |
GATES 2/9650PB Fits Vehicles
- Mack MH (1994)
- Western Star 4800 (1991-1996)
- Western Star 4900 (1989-1996)
- Mack RW (1990-1993)
- Mack RM (1990-1993)
- Mack RD (1990-1993)
- Mack RB (1989-1993)
- Kenworth W900 (1990-1996)
- White/GMC WCA (1994-1995)
- White/GMC WIA (1994-1995)
