GATES 2/9610PB Part Description
Manufacturer
Product Description

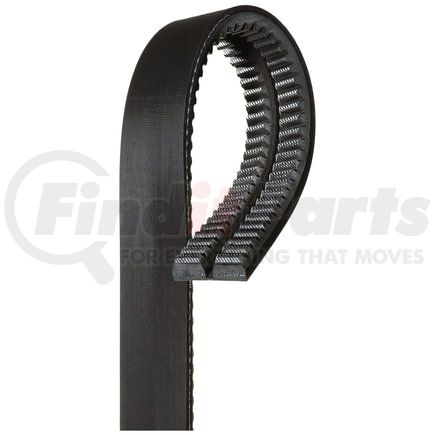

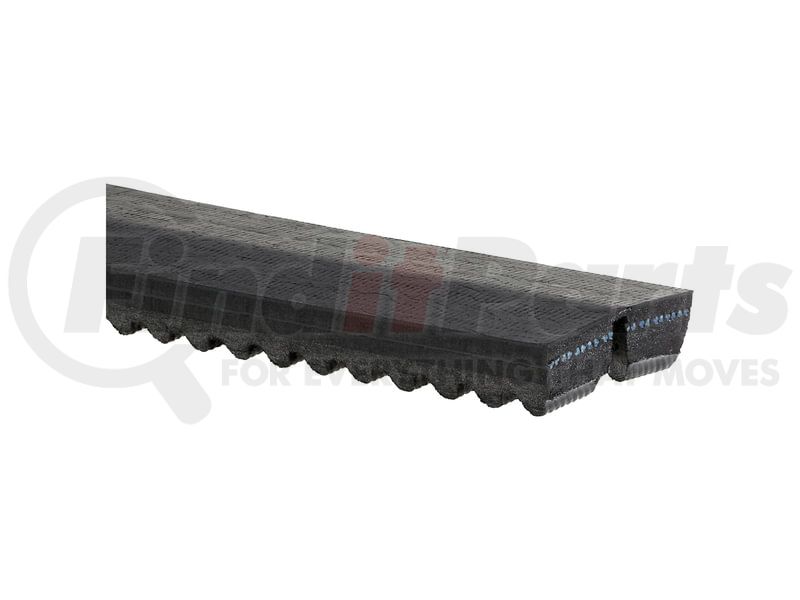

Green Stripe PowerBand Heavy-Duty Joined V-Belt
Application Summary
1998-1990 Kenworth, T800, Caterpillar 3406 Diesel, Alt. & A.C.
Features & Benefits
- Unique tensile cord design gives belt extra strength, added flexibility and shock-load resistance
- Molded notches reduce bending stress, especially on small diameter pulleys, while dissipating heat
- Even load distribution between strands provides better shock-load absorption
- Eliminates belt turnover or belts jumping off the drive
- Meets or exceeds SAE J636 specifications
- Meets RMA oil and heat resistant standards and static conductivity requirements
GATES 2/9610PB Specifications
Product Attributes
| Type | High Capacity Joined V-Belt |
| Cross Section Designation | HC50 |
| Angle | 36 |
| Strand Quantity | 2 |
| Top Width | 1.125 in |
| Top Width Per Strand | .5 IN |
| Outside Circumference | 61.87 in |
| Effective Length | 60.99 in |
| Construction | Notched |
| Notched | Yes |
| Belt Material | EPDM |
| Cord Material | Polyester |
| Top Width | 28 mm |
| Top Width Per Strand | 13 MM |
| Outside Circumference | 1571 mm |
| Effective Length | 1549 mm |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4010323000 |
| Country of Origin (Primary) | US |
| Stock Status | N |
| UPC | 00072053416886 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
GATES 2/9610PB Cross References
| Brand | Part Number |
|---|---|
| 85410029 | |
| ACDelco | 2T17610 |
| Alliance Truck Parts | GT2PB17612, GT2PB17612E |
| CARQUEST | 2/9610PB |
| CONTINENTAL AG | 2-17611TT |
| DAYCO | 17610 |
| Goodyear | 2/17611TT |
| Mack | 88GB445P610, MCKT88GB445P610 |
| NAPA | 25-15505-2 |
| NAPA Belts/Hose | 25-9610-2 |
GATES 2/9610PB Fits Vehicles
- Freightliner FLA086 (1990-1992)
- Volvo WG (1996)
- Mack RM (1990-1993)
- Mack RW (1990-1993)
- Mack RD (1990-1993)
- Mack RB (1989-1993)
- Mack MR (1994-1996)
- Mack LE (1997-2000)
- Kenworth W900 (1990-1996)
- Kenworth T800 (1990-1998)
- Kenworth T600A (1990-2000)
- Ford B-600 (1990-1993)
- Ford B-700 (1990-1993)
