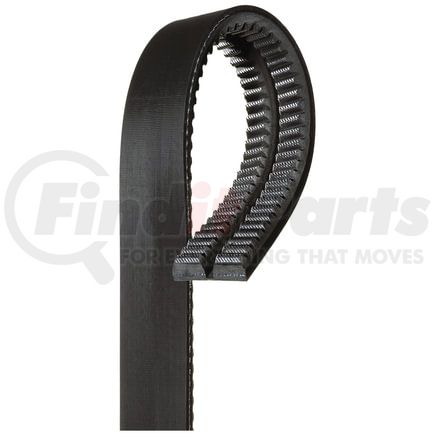

(888) 312-8812 Login SignupGATES 2/9540PB Green Stripe PowerBand Heavy-Duty Joined V-Belt
Tap to view 1 more
$5449
Limited availability at this price!
5 Day Lead Time
Get it by Wednesday, Mar 4
GATES 2/9540PB Part Description
Manufacturer
Product Description
Green Stripe PowerBand Heavy-Duty Joined V-Belt
Application Summary
1996-1990 Peterbilt, 357, Caterpillar 3306 Diesel, Alt. & A.C.
Features & Benefits
- Unique tensile cord design gives belt extra strength, added flexibility and shock-load resistance
- Molded notches reduce bending stress, especially on small diameter pulleys, while dissipating heat
- Even load distribution between strands provides better shock-load absorption
- Eliminates belt turnover or belts jumping off the drive
- Meets or exceeds SAE J636 specifications
- Meets RMA oil and heat resistant standards and static conductivity requirements
GATES 2/9540PB Specifications
Product Attributes
| Type | High Capacity Joined V-Belt |
| Cross Section Designation | HC50 |
| Angle | 36 |
| Strand Quantity | 2 |
| Top Width | 1.125 in |
| Top Width Per Strand | .5 IN |
| Outside Circumference | 54.75 in |
| Effective Length | 54.18 in |
| Construction | Notched |
| Notched | Yes |
| Belt Material | EPDM |
| Cord Material | Polyester |
| Top Width | 28 mm |
| Top Width Per Strand | 13 MM |
| Outside Circumference | 1390 mm |
| Effective Length | 1376 mm |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 4010323000 |
| Stock Status | S |
| UPC | 00072053416763 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
GATES 2/9540PB Cross References
| Brand | Part Number |
|---|---|
| 85410023 | |
| ACDelco | 2T17540 |
| Alliance Truck Parts | GT2/9540PB |
| CARQUEST | 2/9540PB |
| DAYCO | 17540 |
| Ford | E8HT 8620 AAA |
| NAPA | 25-13735-2 |
| NAPA Belts/Hose | 25-9540-2, 2/9540PB |
GATES 2/9540PB Fits Vehicles
- Peterbilt 372 (1989-1991)
- Peterbilt 379 (1990-1991, 1994, 1996)
- Peterbilt 377 (1990-1991)
- Peterbilt 362 (1990-1991)
- Kenworth K100E (1991-1993)
- Peterbilt 375 (1990-1996)
- Peterbilt 357 (1990-1996)
- Peterbilt 378 (1989-1996)
- Ford LTS9000 (1994-1995)
- White/GMC WIA (1994-1995)
