(888) 312-8812 Login SignupDELPHI ES10822 Oxygen Sensor
$15249
Limited availability at this price!
5 Day Lead Time
Get it by Wednesday, Mar 4
DELPHI ES10822 Part Description
Manufacturer
Product Description
Oxygen Sensor
Features & Benefits
- Delphi planar technology covers older, conical design sensors
- Smart design consolidates SKUs without using long wires
- Patented protective sensor coating helps prevent contamination
- Validated for all fuel types, including ethanol blends like E85
- OE tested to 150,000 miles, plus 2,000 hours severe thermal testing
- Delphi is a global OE manufacturer for oxygen sensor and all oxygen sensors are built to Delphi's OE standards
DELPHI ES10822 Specifications
Product Attributes

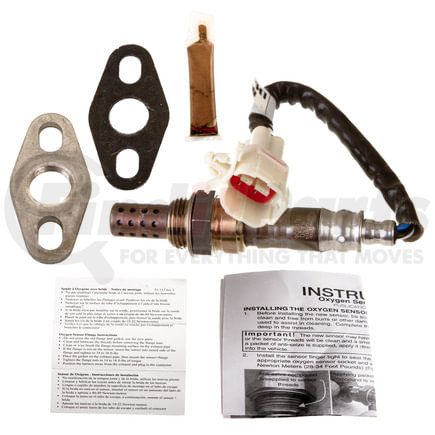

| Package Contents | Oxygen Sensor, Instruction Sheet |
| Position(s) | Rear, Right. For the position specific to your vehicle, refer to the Applications. |
| Wiring Harness Length | 9.1 IN |
| Wiring Harness Length | 230.0 MM |
| Sensor Type | Narrow-Band |
| Terminal Type | Blade |
| Universal Or Specific Fit | Specific |
| Band Type | Narrow |
| Wire Quantity | 4 |
| Grade Type | Standard Replacement |
| Connector Shape | Square |
| Terminal Quantity | 4 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Thread Diameter | 0.7 IN |
| Wrench Size | 22mm |
| Thread Size | M18 - 1.5 |
| Overall Length | 10.2 IN |
| Overall Length | 260.0 MM |
| Mounting Type | Threaded |
| Thread Diameter | 18.0 MM |
| Wire Gauge Measurement | 20.0 GU |
| Thread Type Standard | Metric |
| Heated | Yes |
Additional Information
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Harmonized Tariff Code (Schedule B) | 9027100000 |
| Harmonized Tariff Code (HTS) | 9027102000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| UPC | 00689604146569 |
| VMRS Code | 045021011 |
| UNSPSC | 41111924 |
DELPHI ES10822 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 2131201, 2131356, 2131359, 2131360, 2131431 |
| Beck/Arnley | 156-4448 |
| BorgWarner | OS1228, OS602 |
| Bosch | 13392, 15237, 15534, 12051 |
| DENSO | 234-1056, 234-4150 |
| DENSO Auto Parts | 234-1056, 234-4150 |
| General Motors | 94845519 |
| Kem | 138-621 |
| N/A | 138621, 1564448, 8942560030, 8942569035, 8946501020, 8946520300, 8946535050, 8946539245, 8946539246, 8946569035, 2341056, 2344150 |
| NTK | 24111, 24551 |
| Oextra | REA1061 |
| SPECTRA PREMIUM | OS5215 |
| Standard Motor Products | SG1212, SG587, SG18 |
| Toyota | 89425-60030, 89425-69035, 89465-01020, 89465-20300, 89465-35050, 89465-39245, 89465-39246, 89465-69035 |
| Walker Products | 25024150 |
| Wells | SU4781, SU4892 |
DELPHI ES10822 Fits Vehicles
- Toyota Pickup (1989-1991)
- Toyota Land Cruiser (1985-1987, 1990-1992)
- Toyota Corolla (1988)
- Chevrolet Nova (1988)
