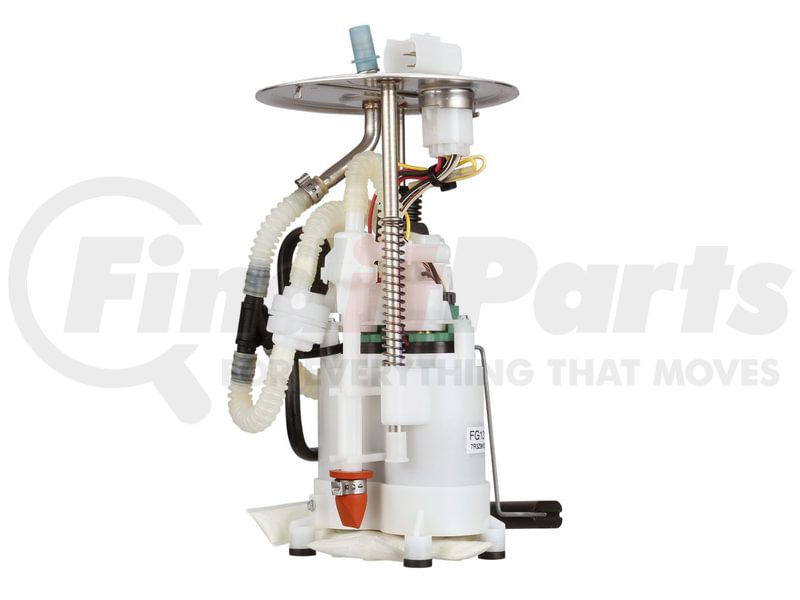

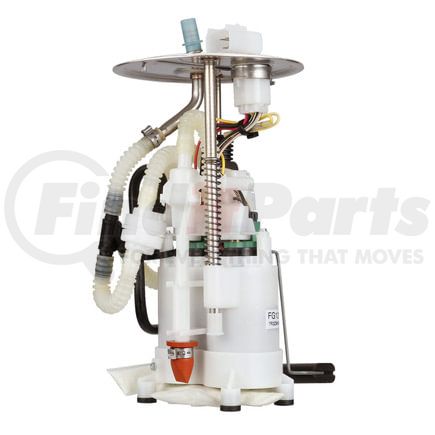

(888) 312-8812 Login SignupDELPHI FG1312 Fuel Pump Module Assembly
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
DELPHI FG1312 Part Description
DELPHI FG1312 Specifications
Product Attributes
| Position(s) | Left |
| Vapor Pressure Sensor | No |
| System Pressure | 65 psi |
| Item Grade | Standard Replacement |
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Instruction Sheet |
| Fuel Level Sender Assembly Included | Yes |
| Outlet Outside Diameter | 0.375 IN |
| Voltage | 12.0 2H |
| Fuel Type | Gas |
| Regulator Included | Yes |
| Maximum Pressure | 109.0 PS |
| Terminal Type | Blade |
| Gasket Or Seal Included | No |
| Terminal Quantity | 6 |
| Lock Ring Included | No |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick Connect |
| Outlet Quantity | 1 |
| In Tank or External | In Tank |
| Resistance Ohms Empty | 15.0 82 |
| Resistance Ohms Full | 160.0 82 |
| Internal Or External Strainer | External |
| Pump Type | Electric |
| Average Current Draw | 23.0 68 |
| Average Flow Rating | 44.0 GPH |
Additional Information
| Harmonized Tariff Code (HTS) | 8413309030 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Country of Origin (Primary) | MX |
| UPC | 00689604232781 |
| VMRS Code | 044003258 |
| UNSPSC | 25172409 |
DELPHI FG1312 Cross References
| Brand | Part Number |
|---|---|
| Airtex | E2480M |
| AutoZone | CFG1312 |
| Carter | P76595M |
| EVO Driveline | AFS0902S, RE0902S |
| Ford | 7R3Z 9H307-A, AR3Z 9H307-B, AR3Z 9H307-C |
| Motorcraft | PFS-362, PFS-503 |
| N/A | 7R3Z9H307A |
| Precision Fuel | A42002 |
| Spectra Premium | SP2384M, SP2558M |
DELPHI FG1312 Fits Vehicles
- Ford Mustang (2007-2012)
