(888) 312-8812 Login SignupRAYBESTOS 980985R Raybestos R-Line Brake Rotor
$9549
Limited availability at this price!
1 Day Lead Time
Get it by Thursday, Mar 12
RAYBESTOS 980985R Part Description
Manufacturer
Product Description

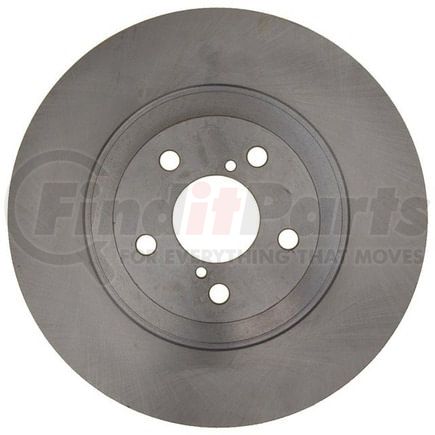

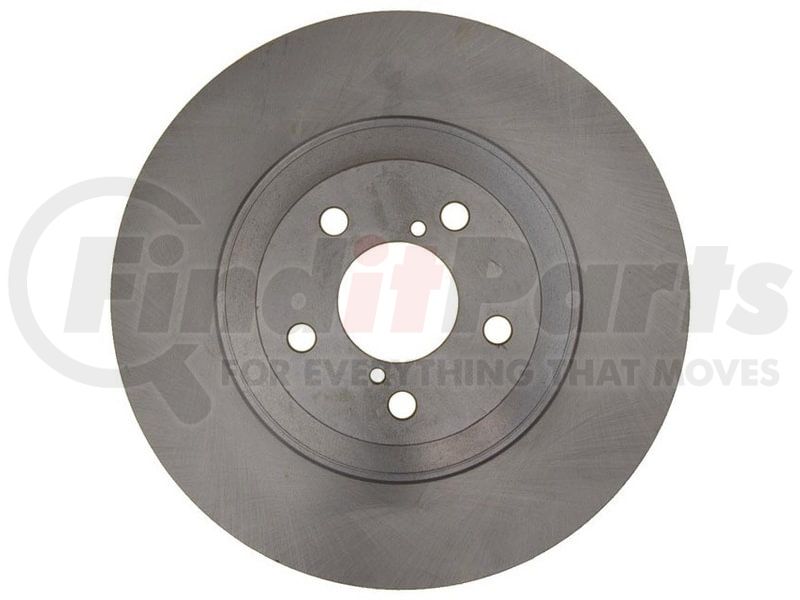

Raybestos R-Line Brake Rotor
Application Summary
2016-2013 Scion FR-S Front, 2020-2017 Toyota 86 Front, 2023-2022 Toyota GR86 Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 980985R Specifications
Product Attributes
| Center Hole Diameter | 2.283 IN |
| Center Hole Diameter | 58 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.866 IN |
| Discard Thickness | 22 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 7.362 IN |
| Inside Diameter | 187 MM |
| Mounting Bolt Hole Circle Diameter | 3.937 IN |
| Mounting Bolt Hole Circle Diameter | 100 MM |
| Mounting Bolt Hole Diameter | 3.937 IN |
| Mounting Bolt Hole Diameter | 100 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.945 IN |
| Nominal Thickness | 24 MM |
| Outside Diameter | 11.547 IN |
| Outside Diameter | 293.3 MM |
| Overall Height | 2.232 IN |
| Overall Height | 56.7 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213026481 |
RAYBESTOS 980985R Cross References
| Brand | Part Number |
|---|---|
| AUTOPARTSOURCE | 577280 |
| BRAKEBEST | 980985, 980985R, 980985RGS |
| Brembo | 09.A921.11, 09.A921.1S, 09.A921.1X |
| CENTRIC | 121.47021 |
| DURA CORP | BR31616 |
| PROMAX | 14-31616 |
| TOYOTA | SU00300586 |
RAYBESTOS 980985R Fits Vehicles
- Toyota GR86 (2022-2025)
- Toyota 86 (2017-2020)
- Scion FR-S (2013-2016)
