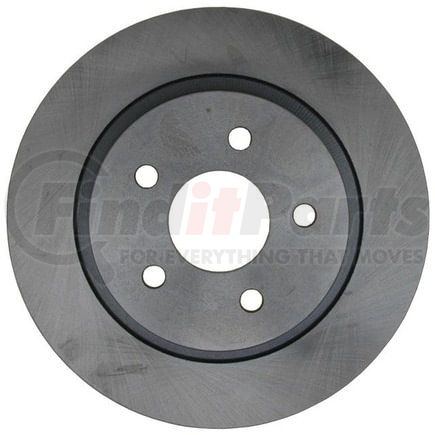

(888) 312-8812 Login SignupRAYBESTOS 980550R Raybestos R-Line Brake Rotor
$3699
Limited availability at this price!
In Stock
Get it by Monday, Mar 9
RAYBESTOS 980550R Part Description
Manufacturer
Product Description
Raybestos R-Line Brake Rotor
Application Summary
2012-2004 Volvo S40 Rear, 2013-2006 Volvo C70 Rear, 2013-2007 Volvo C30 Rear, 2011-2005 Volvo V50 Rear
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 980550R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.503 IN |
| Center Hole Diameter | 63.6 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.354 IN |
| Discard Thickness | 9 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.25 IN |
| Mounting Bolt Hole Circle Diameter | 107.95 MM |
| Mounting Bolt Hole Diameter | 4.25 IN |
| Mounting Bolt Hole Diameter | 107.95 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.433 IN |
| Nominal Thickness | 11 MM |
| Outside Diameter | 11.024 IN |
| Outside Diameter | 280 MM |
| Overall Height | 1.608 IN |
| Overall Height | 40.85 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213005981 |
RAYBESTOS 980550R Cross References
RAYBESTOS 980550R Fits Vehicles
- Volvo C30 (2007-2013)
- Volvo C70 (2006-2013)
- Volvo V50 (2005-2011)
- Volvo S40 (2004-2012)
