(888) 312-8812 Login SignupRAYBESTOS 980372R Raybestos R-Line Brake Rotor
$8149
Limited availability at this price!
1 Day Lead Time
Get it by Monday, Mar 9
RAYBESTOS 980372R Part Description
Manufacturer
Product Description

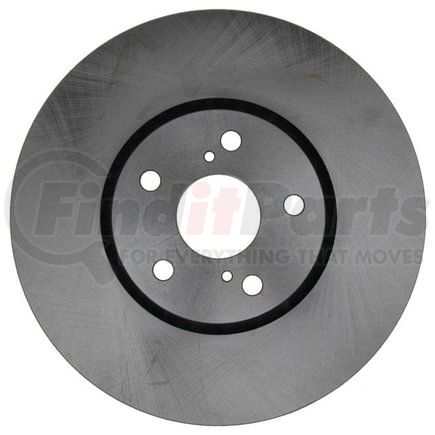

Raybestos R-Line Brake Rotor
Application Summary
2009-2007 Lexus RX350 Front, 2006-2005 Lexus RX330 Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 980372R Specifications
Product Attributes
| Center Hole Diameter | 2.441 IN |
| Center Hole Diameter | 62 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.024 IN |
| Discard Thickness | 26 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.566 IN |
| Mounting Bolt Hole Diameter | 14.4 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.102 IN |
| Nominal Thickness | 28 MM |
| Outside Diameter | 12.559 IN |
| Outside Diameter | 319 MM |
| Overall Height | 1.937 IN |
| Overall Height | 49.2 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213004663 |
RAYBESTOS 980372R Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | YH200501, YH200501C, YH200501P |
| BENDIX | PRT5974 |
| BOSCH | 50011500 |
| BRAKEBEST | 50011500, 980372, 980372R, 980372RGS |
| Brembo | 09.E230.11 |
| CENTRIC | 120.44130, 120.4413, 121.44130 |
| Centric Parts | 120.44130 |
| DURA CORP | BR31413 |
| MAGMA PRODUCTS | PMR565173 |
| NEWTEK AUTOMOTIVE | 31413 |
| Newtek Automotive USA | 31413 |
| PROMAX | 14-31413 |
| TOYOTA | 435120E021 |
| TopNotch | TN980372GEO |
| WAGNER | BD126357, BD126357E |
| WAGNER BRAKE | BD126357, BD126357E |
| WINHERE | 6620823 |
| WORLDPAC | 1407-79962, 1427-530228 |
RAYBESTOS 980372R Fits Vehicles
- Lexus RX350 (2007-2009)
- Lexus RX330 (2005-2006)
