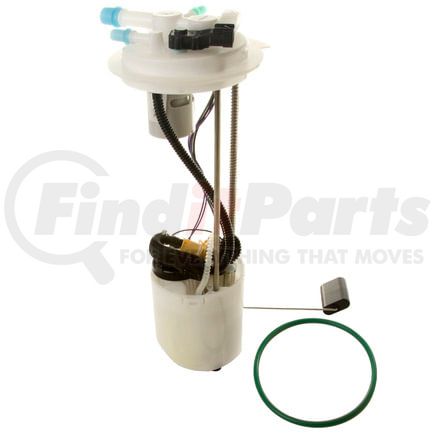

(888) 312-8812 Login SignupDELPHI FG0935 Fuel Pump Module Assembly
MSRP: $596.13
$30699
Save $289.14
Limited availability at this price!
In Stock
Get it by Thursday, Mar 19
DELPHI FG0935 Part Description
Manufacturer
Product Description
Fuel Pump Module Assembly
Features & Benefits
- Delphi is a global OE manufacturer and all fuel pumps are built to Delphi's OE standards
- Empty float height and float retention matches OE specifications and guarantees correct gas gauge reading
- Lower amperage draws less load on vehicle's electrical system
- Part is validated, tested and matched to the right vehicle application
- Always be sure to check and clean fuel tank to avoid unnecessary returns
- Lower failure rates due to its innovative design and durability
DELPHI FG0935 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Vapor Pressure Sensor | Yes |
| Fuel Type | Flex |
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Seal, Instruction Sheet |
| System Pressure | 58 psi |
| Fuel Level Sender Assembly Included | Yes |
| Outlet Outside Diameter | 0.375 IN |
| Voltage | 12 2H |
| Regulator Included | No |
| Maximum Pressure | 65 PS |
| Terminal Type | Pin |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 3 |
| Lock Ring Included | No |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick Connect |
| Outlet Quantity | 3 |
| In Tank or External | In Tank |
| Resistance Ohms Empty | 40 82 |
| Resistance Ohms Full | 250 82 |
| Internal Or External Strainer | Internal |
| Pump Type | Electric |
| Average Current Draw | 15 68 |
| Average Flow Rating | 42 GPH |
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Fuel Type | Flex |
| Mounting Hardware Included | No |
| Grade Type | Premium |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Housing Material | Plastic |
| Installation Warnings | No |
| Connector Gender | Female |
| Fuel Filter Included | Yes |
| Gasket Or Seal Material | Nitrile Rubber |
| Minimum Pressure | 58 PS |
| Wire Harness Included | No |
| Pump Design | Turbine |
| Fuel Tank Pressure Sensor Included | Yes |
| Universal Or Specific Fit | Specific |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (HTS) | 8413309030 |
| Country of Origin (Primary) | TH |
| UPC | 00689604207505 |
| VMRS Code | 044003258 |
| UNSPSC | 25172409 |
DELPHI FG0935 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | M10214, M10215, M10218, M10219, M10267, MU1859, MU1862, MU1863 |
| Airtex | E3805M, E3810M, E3815M, E3837M, E4008M |
| AutoZone | EFG0935 |
| Bosch | 66153, 67796 |
| Carquest | M3496241 |
| Carter | P76691M, P77023M, P77024M, P77103M |
| General Motors | 19301220, 19256388, 19258456, 19206569, 19206572, 19206578, 19206580, 19258455, 19206571, 19206577, 19206579, 19368812 |
| N/A | 19420765, USEP4008M, C0835M, USEP3815M, 4010699, 19420759, 4010702, 4010744, 4011085, 4011349, P77436M |
| Precision Fuel | A30003, A30482, A30483 |
| Spectra Premium | SP6627M, SP6628M, SP6649M, SP6671M, SP6695M, SP6761M |
DELPHI FG0935 Fits Vehicles
- GMC Sierra 1500 (2009-2013)
- Chevrolet Silverado 1500 (2009-2013)
DELPHI FG0935 Customer Reviews
No reviews yet
Be the first to review this product!
DELPHI FG0935 Questions & Answers
No questions yet
Be the first to ask a question about this product!
