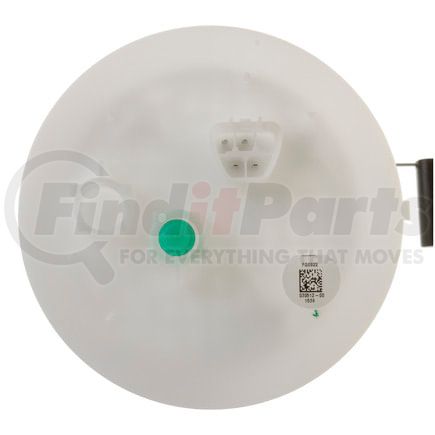

(888) 312-8812 Login SignupDELPHI FG0922 Fuel Pump Module Assembly
MSRP: $511.71
$43699
Save $74.72
Limited availability at this price!
In Stock
Get it by Thursday, Mar 5
DELPHI FG0922 Part Description
Manufacturer
Product Description
Fuel Pump Module Assembly
Features & Benefits
- Delphi is a global OE manufacturer and all fuel pumps are built to Delphi's OE standards
- Empty float height and float retention matches OE specifications and guarantees correct gas gauge reading
- Lower amperage draws less load on vehicle's electrical system
- Part is validated, tested and matched to the right vehicle application
- Always be sure to check and clean fuel tank to avoid unnecessary returns
- Lower failure rates due to its innovative design and durability
DELPHI FG0922 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Seal, Instruction Sheet |
| Vapor Pressure Sensor | No |
| System Pressure | 47 psi |
| Fuel Level Sender Assembly Included | Yes |
| Outlet Outside Diameter | 0.313 IN |
| Voltage | 12 2H |
| Fuel Type | Gas |
| Regulator Included | Yes |
| Maximum Pressure | 78 PS |
| Terminal Type | Blade |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 4 |
| Lock Ring Included | No |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Push In |
| Outlet Quantity | 1 |
| In Tank or External | In Tank |
| Resistance Ohms Empty | 111 82 |
| Resistance Ohms Full | 4 82 |
| Internal Or External Strainer | Internal |
| Pump Type | Electric |
| Average Current Draw | 14 68 |
| Average Flow Rating | 21 GPH |
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Mounting Hardware Included | No |
| Grade Type | Premium |
| Connector Quantity | 1 |
| Connector Shape | Trapezoid |
| Housing Material | Plastic |
| Installation Warnings | No |
| Connector Gender | Female |
| Fuel Filter Included | Yes |
| Gasket Or Seal Material | Nitrile Rubber |
| Minimum Pressure | 47 PS |
| Wire Harness Included | No |
| Pump Design | Turbine |
| Fuel Tank Pressure Sensor Included | No |
| Universal Or Specific Fit | Specific |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Harmonized Tariff Code (HTS) | 8413309030 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TH |
| UPC | 00689604205921 |
| VMRS Code | 044003258 |
| UNSPSC | 25172409 |
DELPHI FG0922 Cross References
| Brand | Part Number |
|---|---|
| Airtex | E8513, E8840M, E8883M, E9011M |
| AutoZone | CFG0922 |
| Bosch | 69750 |
| CARTER FUEL PUMPS | P76706M |
| Carter | P76369, P76706M |
| DENSO Auto Parts | 951-0023, 952-0090 |
| GMB | 570-2110 |
| Import Direct | A30431, E16307 |
| N/A | 770200E012, 770200E020, 770200E021, 770200E060, C0712M, SP9041M, P77218M, 4010471, 4010657, 4011612 |
| Spectra Premium | SP9024M, SP1344, SP9176M |
| Toyota | 23217-0A050, 23221-0A050, 77020-0E012, 77020-0E020, 77020-0E021, 77020-0E060 |
DELPHI FG0922 Fits Vehicles
- Toyota Highlander (2010-2013)
- Lexus RX350 (2007-2009)
- Lexus RX330 (2004-2006)
