(888) 312-8812 Login SignupDELPHI FG0860 Fuel Pump Module Assembly
MSRP: $502.96
$36099
Save $141.97
Limited availability at this price!
In Stock
Get it by Monday, Mar 2
DELPHI FG0860 Part Description
Manufacturer
Product Description

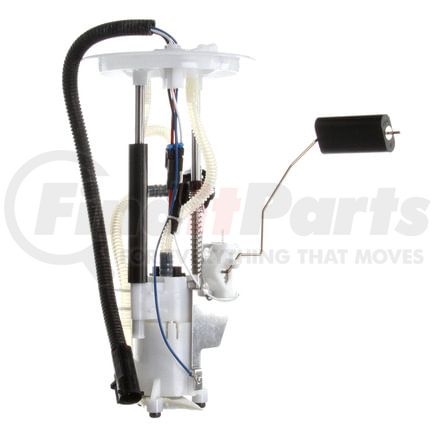

Fuel Pump Module Assembly
Features & Benefits
- Delphi is a global OE manufacturer and all fuel pumps are built to Delphi's OE standards
- Empty float height and float retention matches OE specifications and guarantees correct gas gauge reading
- Lower amperage draws less load on vehicle's electrical system
- Part is validated, tested and matched to the right vehicle application
- Always be sure to check and clean fuel tank to avoid unnecessary returns
- Lower failure rates due to its innovative design and durability
DELPHI FG0860 Specifications
Product Attributes
| Fuel Level Sender Assembly Included | Yes |
| Vapor Pressure Sensor | No |
| System Pressure | 55 psi |
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Seal, Instruction Sheet |
| Item Grade | Standard Replacement |
| Outlet Outside Diameter | 0.375 IN |
| Voltage | 12 2H |
| Fuel Type | Gas |
| Regulator Included | Yes |
| Maximum Pressure | 80 PS |
| Terminal Type | Pin |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 4 |
| Lock Ring Included | No |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick Connect |
| Outlet Quantity | 2 |
| In Tank or External | In Tank |
| Resistance Ohms Empty | 15 82 |
| Resistance Ohms Full | 160 82 |
| Internal Or External Strainer | External |
| Pump Type | Electric |
| Average Current Draw | 10 68 |
| Average Flow Rating | 40 GPH |
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Mounting Hardware Included | No |
| Grade Type | Premium |
| Connector Quantity | 1 |
| Connector Shape | Round |
| Housing Material | Plastic |
| Installation Warnings | No |
| Connector Gender | Female |
| Fuel Filter Included | No |
| Gasket Or Seal Material | Nitrile Rubber |
| Minimum Pressure | 55 PS |
| Wire Harness Included | No |
| Pump Design | Turbine |
| Fuel Tank Pressure Sensor Included | No |
| Universal Or Specific Fit | Specific |
Additional Information
| Harmonized Tariff Code (HTS) | 8413309030 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TH |
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| UPC | 00689604202920 |
| VMRS Code | 044003258 |
| UNSPSC | 25172409 |
DELPHI FG0860 Cross References
| Brand | Part Number |
|---|---|
| AUTOBEST | F1371A |
| Airtex | E2360M |
| AutoZone | CFG0860 |
| Bosch | 67223 |
| CARTER FUEL PUMPS | P76022M |
| Carquest | M2510460 |
| Carter | P76022M |
| EVO Driveline | RE0878S, AFS0878S |
| Ford | 2L1Z 9H307-BA, 2L1Z 9H307-BB, 2L1Z 9H307-BF, 2L1Z 9H307-BG |
| GMB | 525-2470 |
| Magneti Marelli | 1AMFP00106 |
| Motorcraft | PFS-11, PFS-453 |
| N/A | 2L1Z9H307BG, PFS11, USEP2360M, F1371A, C0071M, 4010369 |
| Precision Fuel | A30105 |
| Spectra Premium | SP2360M |
| TYC | 150120-A |
| URO | FD0516843 |
DELPHI FG0860 Fits Vehicles
- Ford Expedition (2003-2004)
