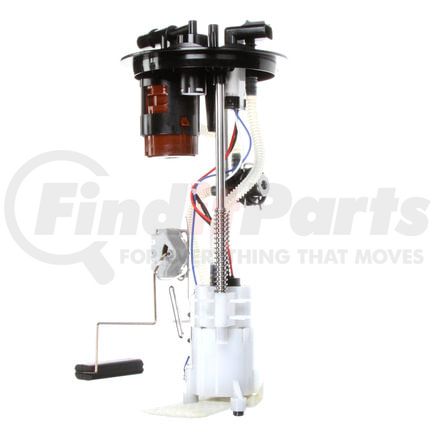

(888) 312-8812 Login SignupDELPHI FG0881 Fuel Pump Module Assembly
MSRP: $531.80
$28899
Save $242.81
Limited availability at this price!
In Stock
Get it by Thursday, Mar 12
DELPHI FG0881 Part Description
Manufacturer
Product Description
Fuel Pump Module Assembly
Features & Benefits
- Delphi is a global OE manufacturer and all fuel pumps are built to Delphi's OE standards
- Empty float height and float retention matches OE specifications and guarantees correct gas gauge reading
- Lower amperage draws less load on vehicle's electrical system
- Part is validated, tested and matched to the right vehicle application
- Always be sure to check and clean fuel tank to avoid unnecessary returns
- Lower failure rates due to its innovative design and durability
DELPHI FG0881 Specifications
Product Attributes
| Vapor Pressure Sensor | No |
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Seal, Instruction Sheet |
| Item Grade | Standard Replacement |
| System Pressure | 62 psi |
| Fuel Level Sender Assembly Included | Yes |
| Outlet Outside Diameter | 0.375 IN |
| Voltage | 12 2H |
| Fuel Type | Gas |
| Regulator Included | Yes |
| Maximum Pressure | 65 PS |
| Terminal Type | Blade |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 4 |
| Lock Ring Included | No |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick Connect |
| Outlet Quantity | 4 |
| In Tank or External | In Tank |
| Resistance Ohms Empty | 16 82 |
| Resistance Ohms Full | 160 82 |
| Internal Or External Strainer | External |
| Pump Type | Electric |
| Average Current Draw | 7 68 |
| Average Flow Rating | 23 GPH |
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Mounting Hardware Included | No |
| Grade Type | Premium |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Housing Material | Plastic |
| Installation Warnings | No |
| Connector Gender | Female |
| Fuel Filter Included | No |
| Gasket Or Seal Material | Nitrile Rubber |
| Minimum Pressure | 62 PS |
| Wire Harness Included | No |
| Pump Design | Turbine |
| Fuel Tank Pressure Sensor Included | No |
| Universal Or Specific Fit | Specific |
Additional Information
| Harmonized Tariff Code (HTS) | 8413309030 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Country of Origin (Primary) | TH |
| UPC | 00689604205785 |
| VMRS Code | 044003258 |
| UNSPSC | 25172409 |
DELPHI FG0881 Cross References
| Brand | Part Number |
|---|---|
| AUTOBEST | F1368A |
| Airtex | E2357M, E2535, E8914 |
| AutoZone | DFG0881 |
| Bosch | 69194, 67259, 69196 |
| CARTER FUEL PUMPS | P76122M |
| Carquest | M2480527 |
| Carter | P76122M |
| DENSO Auto Parts | 953-4044 |
| Ford | 4L5Z 9H307-AE, 6L5Z 9H307-A, 6L5Z 9H307-AA, 6L5Z 9H307-D |
| GMB | 525-2880 |
| Mazda | 1F80-13-350, 1F80-13-350A, 1F80-13-350B |
| Motorcraft | PFS-1021, PFS-525 |
| N/A | 9534044, 1F8013350, 1F8013350A, 1F8013350B, 6L5Z9H307A, 6L5Z9H307AA, 6L5Z9H307D, PFS525, USEP2357M, F1368A, C0068M, 4010438 |
| Precision Fuel | A30088 |
| Spectra Premium | SP2007M, SP1330 |
| TYC | 150198-A |
| URO | MA0517231 |
DELPHI FG0881 Fits Vehicles
- Ford Ranger (2004-2006)
- Mazda B2300 (2004-2006)
- Mazda B3000 (2004-2006)
DELPHI FG0881 Customer Reviews
No reviews yet
Be the first to review this product!
DELPHI FG0881 Questions & Answers
No questions yet
Be the first to ask a question about this product!
