DELPHI FG0176 Part Description
Manufacturer
Product Description

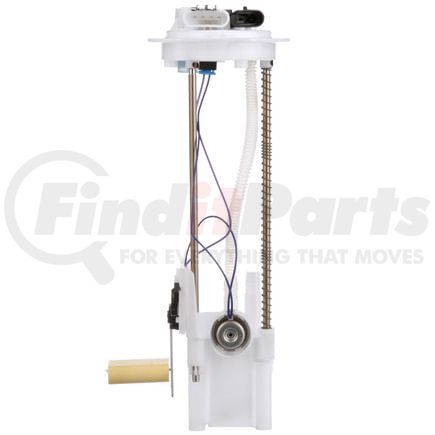

Fuel Transfer Unit
Features & Benefits
- Meets or exceeds OE resistance requirements
- Transfers fuel within the tank
- Does not include primary fuel pump
- Meets or exceeds OE delivery requirements
DELPHI FG0176 Specifications
Product Attributes
| Position(s) | Left |
| Vapor Pressure Sensor | Yes |
| Package Contents | Fuel Transfer Unit w/Float Arm, Metal Clamp, Instruction Sheet |
| Item Grade | Standard Replacement |
| Fuel Level Sender Assembly Included | Yes |
| Outlet Outside Diameter | 0.375 IN |
| Fuel Type | Gas |
| Regulator Included | Yes |
| Terminal Type | Blade |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 4 |
| Terminal Gender | Male |
| Strainer Included | No |
| Inlet Type | Strainer |
| Outlet Type | Quick Connect |
| Outlet Quantity | 2 |
| In Tank or External | In Tank |
| Resistance Ohms Empty | 125.0 82 |
| Resistance Ohms Full | 20.0 82 |
| Suction Pipe Included | No |
| Connector Shape | Oval |
| Housing Material | Plastic |
| Connector Gender | Female |
| Fuel Tank Pressure Sensor Included | Yes |
| Outlet Outside Diameter | 9.5 MM |
| Nozzle Shut Off Valve Included | No |
| Self Priming | No |
| Metered | No |
| Flow Rate | 0 GPH |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Harmonized Tariff Code (HTS) | 8413309030 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | MX |
| UPC | 00689604061138 |
| VMRS Code | 044001089 |
| UNSPSC | 25172411 |
DELPHI FG0176 Cross References
DELPHI FG0176 Fits Vehicles
- Saturn Vue (2002-2003)
