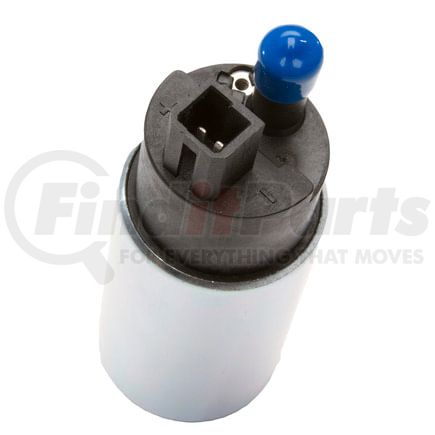

DELPHI FE0321 Part Description
Manufacturer
Product Description
Electric Fuel Pump
Features & Benefits
- Delphi is a global OE manufacturer and all fuel pumps are built to Delphi's OE standards
- Delphi pumps are designed to operate under extreme temperatures with quick engine starts
- Improved pump performance as a result of Delphi's innovative design and durability
- Restores fast pressure performance and system integrity, translating to better pumping through less energy
- Part is validated, tested and matched to the right vehicle application
- Lower amperage draws less load on vehicle's electrical system
- Always be sure to check and clean fuel tank to avoid unnecessary returns
- Always replace the fuel strainer when doing a fuel pump repair
DELPHI FE0321 Specifications
Product Attributes
| Position(s) | In-Tank |
| Item Grade | Standard Replacement |
| Package Contents | Electric Fuel Pump, (2) Hose Clamps, Hose Piece, Insulating Sleeve, Isolator, Pall Nut, (3) Seals, Instruction Sheet |
| System Pressure | 44 psi |
| Fuel Sending Unit Included | No |
| Negative Ground | No |
| Inlet Outside Diameter | 11.0 MM |
| Outlet Outside Diameter | 0.375 IN |
| Outlet Outside Diameter | 9.5 MM |
| Length | 114.0 MM |
| Fuel Type | Gas |
| Internal Or External | Internal |
| Regulator Included | No |
| Maximum Pressure | 109.0 PS |
| Terminal Type | Blade |
| Mounting Hardware Included | Yes |
| Wire Quantity | 0 |
| Connector Shape | Square |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 2 |
| Seal And Lock Ring Included | No |
| Connector Gender | Female |
| Terminal Gender | Male |
| Wiring Harness Included | No |
| Strainer Included | No |
| Inlet Type | Strainer |
| Outlet Type | Hose |
| Outlet Quantity | 1 |
| Gasket Or Seal Material | Nitrile Rubber |
| Pump Design | Turbine |
| Mounting Bracket Included | No |
| Voltage | 12.0 2H |
| Average Current Draw | 5.0 68 |
| Average Flow Rating | 34.0 GPH |
| Universal Or Specific Fit | Specific |
| Grade Type | Premium |
| Minimum Pressure | 44 PS |
| Maximum Amperage Draw | 5.0 68 |
Additional Information
| Harmonized Tariff Code (HTS) | 8413309030 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Country of Origin (Primary) | CN |
| UPC | 00689604119938 |
| VMRS Code | 044003259 |
| UNSPSC | 40151532 |
DELPHI FE0321 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | MU2019 |
| AUTOBEST | F1482, HP1482 |
| Airtex | E2226, E2296S, E2471 |
| AutoZone | CFE0321 |
| Bosch | 66085, 69128, 69134 |
| Carter | P74879S, P74203 |
| DENSO Auto Parts | 951-0008 |
| EVO Driveline | RE0314S, AFS0314S, AFS0887P, RE0887P |
| Ford | XL2Z 9H307-A, XL2Z 9H307-AL, XL2Z 9H307-DA |
| GMB | 525-1151 |
| Import Direct | E16009, E16068 |
| Magneti Marelli | 1AMFP00107 |
| Motorcraft | PFS-1005, PFS-422 |
| N/A | 9510008, XL2Z9H307AL, XL2Z9H307DA, PFS422 |
| Precision Fuel | A30065, E16006 |
| Spectra Premium | SP1113, SP2296H |
| TYC | 152017-A |
DELPHI FE0321 Fits Vehicles
- Ford Explorer (1999-2000)
