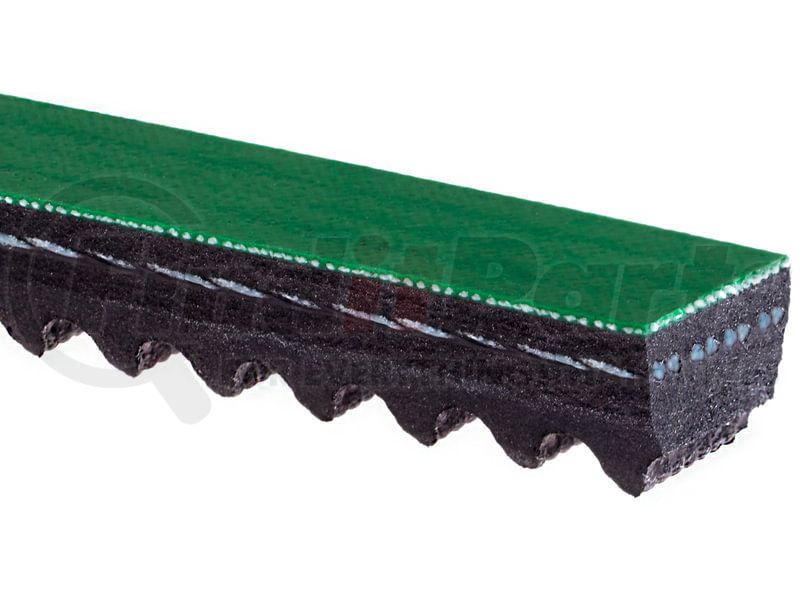

(888) 312-8812 Login SignupACDELCO 9660HD Heavy Duty High Capacity V-Belt
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
ACDELCO 9660HD Part Description
ACDELCO 9660HD Specifications
Product Attributes
| Top Width | 0.51 in |
| Top Width | 13.0 mm |
| Effective Length | 1676 mm |
| Outside Circumference | 1686 mm |
| Product Description | ACDelco Specialty Heavy Duty V-Ribbed Belts help provide flexibility, stability, load capacity, and belt life designed for the toughest applications. They are made with materials that help deliver peak performance at extreme prolonged operating temperatures, making them the ultimate problem solvers. The advanced blend of EPDM rubber technology withstands the modern threats of deterioration from increased exposure to ozone and water based coolants. ⚠<b> WARNING:</b> Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| FAQ - Question 1 | Can I use a belt that is close to the correct size, but not the exact size? |
| Good Maintenance Practices - Section 1 - Bullet 5 | Check for proper belt tension per your equipment's owner's manual. |
| Features & Benefits - Bullet 1 | Designed for the toughest applications |
| Good Maintenance Practices - Section 1 - Bullet 1 | Do not use belt dressings to stop belt slippage or noise. These are oil based and may cause belt deterioration. |
| Signs of Wear & Troubleshooting - Section 1 - Bullet 5 | Engine stoppings or backfiring |
| Material | EPDM |
| Signs of Wear & Troubleshooting - Section 1 - Bullet 2 | Glazing on belt |
| Color | Green Backing |
| Features & Benefits - Bullet 2 | Helps provide flexibility, stability, and load capacity |
| Signs of Wear & Troubleshooting - Section 1 - Bullet 6 | Loss of battery charge |
| Features & Benefits - Bullet 4 | Made with an advanced blend of EPDM rubber technology |
| Signs of Wear & Troubleshooting - Section 1 - Bullet 1 | Material loss |
| Good Maintenance Practices - Section 1 - Bullet 2 | Never twist a belt more than 90 degrees during inspection. This may damage the tensile cords and cause premature failure. |
| Top Cogged | No |
| Programming Required | No |
| FAQ - Answer 1 | No. Knowing whether you have a manual tensioner versus an automatic tensioner is critical information as well as the type of belt used in the system The belt listed for your application is sized specific for that application. Any altering of the belt size in the drive system can lead to noise, premature wear and possible system damage. |
| Features & Benefits - Bullet 3 | Patented materials help deliver peak performance at extreme, prolonged operating temperatures for crack resistance |
| Signs of Wear & Troubleshooting - Section 1 - Bullet 3 | Pilling, abrasion, or cracking belt |
| Good Maintenance Practices - Section 1 - Bullet 3 | Replace belt per your equipment's owner's manual. |
| Signs of Wear & Troubleshooting - Section 1 - Header | Signs of wear include but are not limited to: |
| Signs of Wear & Troubleshooting - Section 1 - Bullet 4 | Squealing noise from belt |
| Good Maintenance Practices - Section 1 - Bullet 4 | Use an approved tension gauge to check belt tension. |
Additional Information
| Warranty Special | Limited Lifetime Warranty (Parts Only). Please see ACDelco.com for more details|Limited Lifetime Warranty as long as the original purchaser still owns the vehicle (Parts Only). Please see ACDelcocanada.com for more details |
| Harmonized Tariff Code (HTS) | 4010313000 |
| Country of Origin (Primary) | US |
| Warranty Special UOM | TX |
| UPC | 00707773332382 |
ACDELCO 9660HD Cross References
ACDELCO 9660HD Fits Vehicles
- Peterbilt 282 (1974-1975)
- Peterbilt 359 (1986-1987)
- Peterbilt 377 (1989-1991)
- Peterbilt 320 (1990-1995)
- Peterbilt 379 (1987-1991, 1994, 1996)
- Peterbilt 378 (1988-1996)
- Peterbilt 375 (1987-1996)
- Peterbilt 357 (1987-1996)
- Mack RWS (1981-1985)
- Mack RWL (1981-1985)
- Mack RL (1981-1987)
- Mack DMM (1981-1988)
- Mack DM (1981-1988)
- Mack RS (1981-1989)
- Mack R (1981-1990)
- Mack MC (1991)
- Mack RW (1985-1993)
- Mack RM (1981-1993)
- Mack RD (1981-1993)
- Mack RB (1989-1993)
- Mack MH (1984-1991, 1994)
- International S1823 (1980)
- International S1723 (1980)
- White/GMC WCS (1988-1989)
- White/GMC WCM (1988-1989)
- White/GMC WCL (1988-1989)
- White/GMC J8C0 (1988-1989)
- White WHM (1985)
- White WHS (1983-1987)
- White WHL (1983-1987)
- White WCS (1982, 1984-1988)
- White WCM (1984-1988)
- White WCL (1987-1988)
- GMC Brigadier (1981-1988)
- GMC C7000 (1979-1989)
- GMC P6000 (1983-1990)
- GMC C6000 (1979-1990)
- GMC C5000 (1985-1990)
- GMC B6000 (1980-1991)
- Ford CT800D (1981-1982)
- Ford LN600 (1981-1985)
- Ford LN700 (1981-1986)
- Ford C700 (1980-1986)
- Ford C600 (1980-1986)
- Ford FT900 (1985-1987)
- Ford F-800 (1980-1987)
- Ford F-700 (1980-1987)
- Ford F-600 (1980-1987)
- Ford B-700 (1980-1987)
- Ford B-600 (1980-1987)
- Ford LT8000 (1987-1988)
- Ford L8000 (1987-1988)
- Ford LTS8000 (1987-1989)
- Ford LS8000 (1988-1989)
- Ford LNT8000 (1987-1989)
- Ford LN8000 (1987-1989)
- Ford CLT9000 (1985-1989)
- Ford CL9000 (1985-1989)
- Ford C800 (1980-1989)
- Chevrolet C70 (1960-1961, 1979-1989)
- Chevrolet C60 (1979-1989)
- Chevrolet P60 (1983-1990)
- Chevrolet C50 (1985-1990)
- Chevrolet B60 (1980-1990)
- Blue Bird SHL All American (1988-1989)
ACDELCO 9660HD Customer Reviews
No reviews yet
Be the first to review this product!
ACDELCO 9660HD Manufacturer Information
A true OEM auto parts brand for GM and non-GM vehicles, ACDelco® offers a wide portfolio of parts designed to keep vehicles on the road longer. These parts work precisely and fit perfectly because they are designed, engineered, tested, and backed by General Motors. But ACDelco also carries aftermarket components that go through the same 18-step quality approval process as the OE parts. Whether customers choose OE or aftermarket, they’d get the same reliable performance, precise engineering, and superior reliability for years to come. ACDelco’s expansive product portfolio includes alternators, filters, batteries, brakes, belts and hoses, oil and fluids, and suspension parts. These products are made to meet GM and non-GM vehicles’ ever-evolving powertrain, collision, maintenance, and repair needs.
ACDELCO 9660HD Questions & Answers
No questions yet
Be the first to ask a question about this product!
