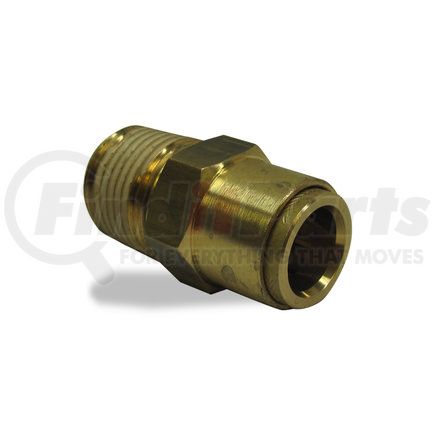

(888) 312-8812 Login SignupVELVAC 17947 Push-Lock Air Brake Fitting, Male Connector, Brass, 1/2" x 1/2"
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
VELVAC 17947 Part Description
Manufacturer
Item Overview:
- Designed for use with SAE J844 nylon tubing.
- DOT 49 CFR 571.106 compliant.
- Fittings comply with worldwide Standard and Legislation, including SAE J1131 "Hot Pull" requirements.
- Operating temperatures from -40° F to +212° F.
- Maximum operating pressure 0 to 150 psi.
- Collet with multiple teeth for high grip on the tube.
- Side load retention capabilities.
- Positive release bushing for easy insertion and removal of tubing.
- Thread sealant applied to all male pipe threads to reduce installation time and expense.
WARNING! Velvac's line of push-lock brake fittings and tubing are designed only for use in vehicles where air is utilized as the operating fluid. As such, Velvac's push-lock air brake fittings should only be used in a manner consistent with the manufacturer's specifications. Using Velvac's push-lock fittings or tubing improperly or in a manner inconsistent with the manufacturer's specifications may result in serious injury or property damage. For example, Velvac's push-lock fittings and tubing are not intended for use in environments exceeding 150 psi and temperatures below -40° and above +120° F. Velvac's push-lock fittings and tubing are intended for use only as defined in 49CFR571.106. The U.S. Department of Transportation prohibits the use of push-lock fittings and nylon tubing as a connection between a semi-tractor & trailer, or a drive shaft and chassis.
Specifications:
| Product | Push Lock Air Brake Fittings |
| Type | Male Connectors |
| Material | Brass |
| Tube Size | 1/2" |
| Pipe Size | 1/2" |
Velvac Push-Lock Air Brake Fitting
The Velvac push-lock air brake fitting offers a quick and efficient means of assembling or connecting different semi-rigid tubings. This product is backed by the company’s long-standing tradition of manufacturing air brake and valve components for heavy trucks.
Features & Benefits
- Works well under -40° F to +212° F operating temperatures
- Compatible with SAE J844 nylon tubing
- Meets DOT 49 CFR 571.106 requirements; fittings are worldwide Standard-and-Legislation compliant
- Also complies with SAE J1131 "Hot Pull" requirements
- Guarantees 0 to 150 psi maximum operating pressure
- Durable brass construction; features Collet with multiple teeth for high grip on the tube
- Outstanding side load retention capabilities
- Fitted with positive release bushing for easy tubing insertion and removal
- All male pipe threads have sealant applied for fast installation
VELVAC 17947 Cross References
| Brand | Part Number |
|---|---|
| ANDERSON | 02468-0808 |
| BWP-NSI | M-4726 |
| CMI | 968-8-8PXDOT |
| COUPLINGS | PP68FFDOT |
| SLOAN | S68PMT-8-8 |
| TECTRAN | PL1368-8D |
VELVAC 17947 Customer Reviews
No reviews yet
Be the first to review this product!
VELVAC 17947 Manufacturer Information
Velvac® is a leading manufacturer of air brake and valve components for heavy duty trucks. Founded in 1934 as Vacuum Power Equipment Company, the company has grown tremendously over the years with new products included in its catalog, such as mirrors, cameras and vision systems, fuel system products, and accessories. Six years after Vacuum Power Equipment Company opened its doors for business, its name was changed to "Velvac" because of the popularity of its Velvet Vacuum Brakes brand. Today, Velvac continues to expand and upgrade its broad product categories to meet its customers' increasing demands. Its main headquarters is in New Berlin, WI, and its primary manufacturing facility is in Reynosa, Mexico.
VELVAC 17947 Questions & Answers
No questions yet
Be the first to ask a question about this product!
