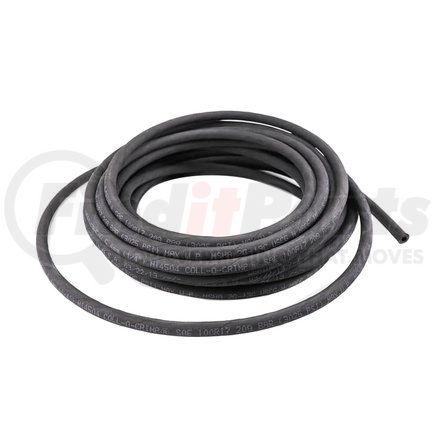

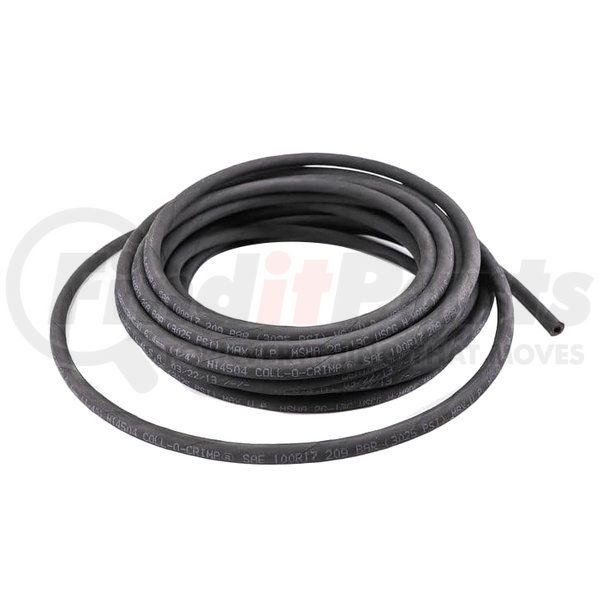

(888) 312-8812 Login SignupWEATHERHEAD H24508 Hydraulic Hose - 100R16
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
WEATHERHEAD H24508 Part Description
Manufacturer
Product Specifications
| Cover Material | Neoprene |
| Dash Size | 8 |
| Hose Family | SAE R16 |
| Max Temperature (C) | 100 |
| Max Temperature (F) | 212 |
| Min Temperature (C) | -40 |
| Min Temperature (F) | -40 |
| Operating Pressure (PSI) | 3500 |
| Operating Pressure (Bar) | 241.3 |
| Product Line | Weatherhead |
| Tube Material | Nitrile |
| Available Length (ft) | 50 |
| Burst Pressure (Bar) | 965.3 |
| Burst Pressure (psi) | 14000 |
| Description | High Pressure Hydraulic Hose |
| Family | Hose |
| General Application | Most commonly used for high pressure lines on off road construction equipment, farm equipment and other high pressure applications. Compatible with water/glycol, water, generic hydraulic fluids, and diesel fuel. |
| Government Specification | MSHA |
| Hose Base Number | H245 |
| Industry Specification | SAE 100R16, ABS, SAE J1942 |
| Inside Diameter (Fraction) | 41641 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Min Bend Radius (in) | 3.5 |
| Min Bend Radius (mm) | 88.9 |
| Outside Diameter (Fraction) | 13/16 |
| Outside Diameter (in) | 0.81 |
| Outside Diameter (mm) | 20.6 |
| Reinforcement Material | Two Steel Braids |
| Weight (kg/m) | 0.54 |
| Weight (lb/ft) | 0.36 |
Overview & Features
Eaton’s cold temperature two-wire braided hose that exceeded both SAE 100R16 and EN857 2SC pressures.
Features
- Temperature range of -57°C to 100°C (-70°F to 212°F)
- Meets or exceeds hose specifications and agency ratings; SAE 100R16 Type S, EN853 2SC, ISO 11237-1 Type 2SC, MSHA
- WeatherSHIELD cover provides much higher abrasion resistance leading to longer hose life
- Eaton’s WeatherMATCH program provides identification markings on the hose, hose Fittings, and crimp dies for quick and easy Assembly
WEATHERHEAD H24508 Cross References
WEATHERHEAD H24508 Customer Reviews
No reviews yet
Be the first to review this product!
WEATHERHEAD H24508 Manufacturer Information
Officially acquired by Eaton in 2002, Weatherhead® is one of the industry’s biggest suppliers of hydraulic hose, hose ends, tube fittings, couplings, assembly equipment, and support accessories. Weatherhead crafts top-products that are widely used in mining, agriculture, construction, truck, and bus applications. Eaton delivers Weatherhead thermoplastic tubing in different sizes—from 1/8 to 1 inch—designed for use in air tools, robotics, beverage dispensing as well as air and water supply. Driven by the company’s goal to offer unique solutions to a wide range of markets that enable businesses to be at the forefront of change, Weatherhead remains the truck industry’s leading source of premium-quality hoses, fittings, and adapters for your fleet’s hose and fittings needs
