AUTOLITE XS3923DP Part Description
Manufacturer
Product Description

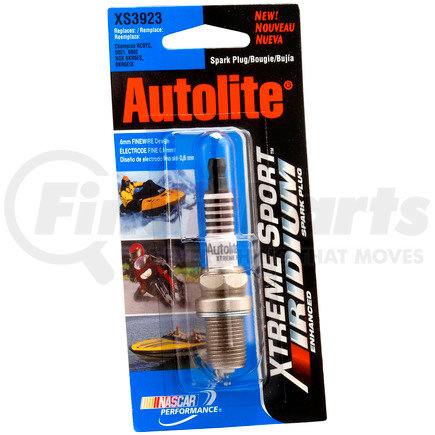

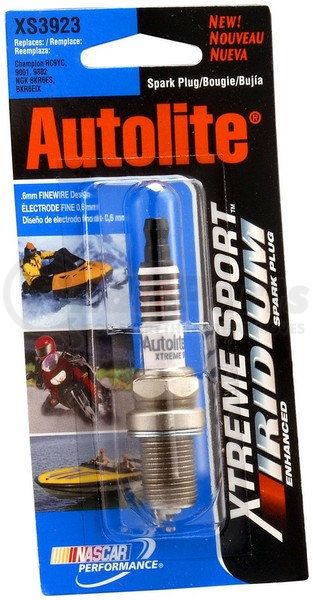

Autolite XS3923DP Xtreme Sport Iridium Powersports Spark Plug - Display Pack
Features & Benefits
- Design to withstand the extreme operating temperatures experienced during a power sports engine's combustion.
- Engineered with an iridium-enhanced fine-wire center electrode that delivers greater ignitability over standard non-fine-wire spark plug.
- 0.6mm finewire design with Sport V-trim ground electrode for more horsepower than standard plug
- The tapered ground electrode provides improved ignitability for more efficient and smoother starts.
- Up to 26% quicker engine starts than a standard non-finewire spark plug* (* Testing performed by independent lab)
- Its high alumina multi-rib ceramic insulator provides thermal conductivity and superior insulation for increased strength.
- Focused ignition prevents fouling better than leading standard plug for reliable starting in any season or weather
AUTOLITE XS3923DP Specifications
Product Attributes
| Resistance | 4000 82 |
| Ground Electrode Tip Design | Taper Cut |
| Ground Electrode Core Material | Nickel |
| Electrical Terminal Type | Non-Removable Nut |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Iridium |
| Pre-Gap Size | 0.044 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 16 MM |
| Seat Type | Flat |
| Reach | 0.75 IN |
| Thread Diameter | 14 MM |
| Insulator Material | Ceramic |
| Resistor Type | Yes |
| Ground Electrode Tip Material | Nickel |
| Center Electrode Design | Fine Wire |
| Center Electrode Projection | Mid Projection |
| Washer(s) Included | Yes |
| Grade Type | Performance |
| Hex Size | 5/8 IN |
| Manufacturer Heat Range | 10 |
| Skirt | Yes |
| Hex Type | Hex |
| Indexed | No |
| Reach | 19.049999999999997 MM |
| Pre-Gap Size | 1.1176 MM |
| Thread Type Standard | Metric |
| Thread Size | M14 - 1.25 |
| Center Electrode Insulator Tip Projection | 0.133 IN |
| Washer Type | Crush |
| Thread Diameter | 14 MM |
| Center Electrode Insulator Tip Projection | 3.4 MM |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8511100000 |
| Warranty Special | No Warranty |
| Warranty Special UOM | TX |
| Harmonized Tariff Code (HTS) | 8511100000 |
| UPC | 00009100534262 |
| UNSPSC | 26101732 |
AUTOLITE XS3923DP Cross References
AUTOLITE XS3923DP Fits Vehicles
- Kawasaki KAF820 Mule PRO-FX Ranch Edition (2017)
- Kawasaki KAF820 Mule PRO-FXR (2018-2019)
- Polaris Sportsman 500 HO DUSE (2001)
- Kawasaki KAF820 Mule PRO-FX (2016-2019)
- Kawasaki KAF820 Mule PRO-FX EPS LE (2016-2019)
- Kawasaki KAF820 Mule PRO-FXT Ranch Edition (2016-2019)
- Kawasaki KAF820 Mule PRO-FX EPS Camo (2016-2017)
- Kawasaki KAF820 Mule PRO-FX EPS (2016-2019)
- Kawasaki KAF820 Mule PRO-FXT EPS Camo (2015-2019)
- Kawasaki KAF820 Mule PRO-FXT EPS LE (2015-2019)
- Kawasaki KAF820 Mule PRO-FXT EPS (2015-2019)
- Kawasaki KAF820 Mule PRO-FXT (2015-2019)
- Honda GL1800 Valkyrie ABS (2014)
- Honda GL1800 Valkyrie (2014-2015)
- Honda GL1800HPNM Gold Wing Audio/Comfort/Navi/XM/ABS (2014-2017)
- Honda GL1800B Gold Wing F6B Deluxe (2013-2017)
- Honda GL1800HP Gold Wing Audio/Comfort (2014-2017)
- Honda GL1800HPNM Gold Wing Audio/Comfort/Navi/XM (2014-2017)
- Polaris Sportsman 550 X2 EPS (2014)
- Honda GL1800B Gold Wing F6B (2013-2016)
- Polaris Sportsman 550 EPS Stealth Black LE (2013)
- Polaris Sportsman 400 HO South Edition (2013-2014)
- Honda NC700X (2012-2013)
- Polaris Sportsman Forest 550 (2012-2014)
- Polaris Sportsman Forest Tractor 500 (2012-2013)
- Polaris Sportsman 550 EPS Orange Madness LE (2012)
- Polaris Sportsman Forest 500 (2012-2013)
- Polaris Sportsman 550 Touring EPS (2012-2014)
- Polaris Sportsman 550 (2012-2013)
- Polaris Sportsman 550 EPS (2012-2014)
- Polaris Sportsman 550 EPS Browning LE (2012-2014)
- Polaris Sportsman 500 HO Polaris Pursuite LE (2012)
- Polaris Sportsman 500 HO Touring (2010-2013)
- Polaris Sportsman 550 X2 (2010-2013)
- Polaris Ranger 4x4 400 (2010-2014)
- Polaris Sportsman 550 EFI XP (2009)
- Polaris Sportsman 550 EFI XP w/ EPS (2009)
- Polaris Sportsman 500 EFI Touring (2008-2010)
- Polaris Trail Blazer 330 (2008-2013)
- Polaris Sportsman 400 HO (2008-2014)
- Polaris Sportsman 500 EFI X2 Deluxe (2007)
- Polaris Ranger 2x4 500 (2007-2008)
- Honda GL1800 Gold Wing Airbag (2007-2010, 2012-2016)
- Polaris Sportsman 500 EFI (2006-2009)
- Polaris Sportsman 500 EFI X2 (2006-2009)
- Polaris Sportsman 500 6x6 (2006-2008)
- Polaris Sportsman 450 (2006-2007)
- Honda VTX1800F (2005-2008)
- Arctic Cat T660 Turbo ST EFI Early Build (2005)
- Polaris ATP 330 (2004-2005)
- Polaris ATP 500 (2004-2005)
- Honda VTX1800N (2004-2008)
- Honda NRX1800 Rune (2004-2005)
- BMW R1200C Montauk (2004-2005)
- Arctic Cat T660 Turbo Touring (2004)
- Arctic Cat T660 Touring (2004)
- Arctic Cat T660 Turbo Trail (2004)
- Polaris Magnum 330 2x4 (2003-2005)
- Polaris Trail Boss 330 (2003-2013)
- Polaris Magnum 330 4x4 (2003-2006)
- BMW R1200CL (2003-2006)
- BMW R1150RS (2003-2004)
- BMW R1100S Boxer Cup Replica (2003-2005)
- Arctic Cat 4-Stroke Trail (2003)
- Arctic Cat 4-Stroke Touring (2003)
- Honda VTX1800S (2002-2006)
- Honda VTX1800C (2002-2008)
- Honda VTX1800R (2002-2008)
- BMW R1150GS Adventure (2002-2005)
- BMW R1150RT (2002-2005)
- Polaris Xpedition 325 (2001-2002)
- Polaris Sportsman 500 HO (2001-2006, 2008-2013)
- Polaris Sportsman 500 HO RSE (2001)
- Polaris Scrambler 500 2x4 (2001-2002)
- Honda GL1800 Gold Wing (2001-2005)
- Honda GL1800A Gold Wing ABS (2001-2005, 2010, 2012)
- BMW R1150R (2001-2005)
- Polaris Trail Boss 325 (2000-2002)
- Polaris Magnum 325 2x4 (2000-2002)
- Polaris Magnum 325 4x4 (2000-2002)
- BMW R850C Avantgarde (2000)
- BMW R850C Euro (2000)
- BMW R1150GS (2000-2004)
- Polaris Sportsman 335 (1999-2000)
- BMW R1100S (1998-2005)
- BMW R1200C (1998-2002)
- Polaris Scrambler 500 4x4 (1997-2012)
- BMW R850C Classic (1997-2000)
- BMW R1100RT (1996-2001)
- BMW R850R ABS (1996)
- BMW R1100R (1995-2000)
- BMW R850R (1995-2001)
- BMW R1100GS ABS (1995-1999)
- BMW R1100RS (1994)
- BMW R1100GS (1994-1995)
- BMW R1100RS ABS (1994-2001)
- BMW R1100RSL (1994-1996)
