AUTOLITE 4092DP Part Description
Manufacturer
Product Description

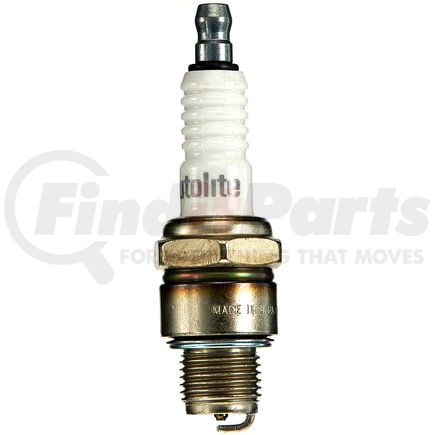

Autolite 4092DP Copper Non-Resistor Spark Plug - Display Pack
Features & Benefits
- One-Piece terminal stud provides a reliable high voltage electrical connection
- Specially engineered high nickel alloy center and ground electrode provides extended life.
- High alumina multi-rib insulator helps prevent flash-over which can lead to misfires
- It's multi-rib ceramic insulator reduces danger of flash-over while its copper-glass seal bonds the center electrode and terminal post, providing a gas-tight internal seal.
- It’s multi-rib ceramic insulator reduces danger of flash-over while its copper-glass seal bonds the center electrode and terminal post, providing a gas-tight internal seal.
- Heat-fused glass composite resistor center seal provides high performance EMI noise suppression and a 100 percent leak-proof seal
- Designed with a cold-formed steel shell precision rolled threads that provide greater durability and reduced wear.
- Solid copper core center electrode provides optimal thermal and electrical conductivity for better performance in all driving conditions
- High nickel alloy side electrode resists electrical and chemical wear providing excellent durability
- 2 year limited warranty
AUTOLITE 4092DP Specifications
Product Attributes
| Resistance | 1 82 |
| Ground Electrode Tip Design | Standard |
| Ground Electrode Core Material | Nickel |
| Electrical Terminal Type | Removable Nut |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Nickel |
| Pre-Gap Size | 0.03 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 21 MM |
| Seat Type | Flat |
| Reach | 0.5 IN |
| Thread Diameter | 14 MM |
| Insulator Material | Ceramic |
| Resistor Type | No |
| Ground Electrode Tip Material | Nickel |
| Center Electrode Design | Standard |
| Center Electrode Projection | Short Projection |
| Washer(s) Included | Yes |
| Grade Type | Regular |
| Hex Size | 13/16 IN |
| Manufacturer Heat Range | 13 |
| Skirt | Yes |
| Hex Type | Hex |
| Indexed | No |
| Pre-Gap Size | 0.7619999999999999 MM |
| Reach | 13 MM |
| Thread Type Standard | Metric |
| Pre-Gap Size | 0.8 MM |
| Thread Size | M14 - 1.25 |
| Center Electrode Insulator Tip Projection | 0.039 IN |
| Washer Type | Flat |
| Thread Diameter | 14 MM |
| Center Electrode Insulator Tip Projection | 1 MM |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8511100000 |
| Warranty Time | 2 |
| Warranty Time UOM | YR |
| Harmonized Tariff Code (HTS) | 8511100000 |
| UPC | 00009100266590 |
| UNSPSC | 26101732 |
AUTOLITE 4092DP Cross References
AUTOLITE 4092DP Fits Vehicles
- Yamaha BR250T Bravo T (2008-2010)
- Ski-Doo TNT 294 (1973)
- Ski-Doo Everest 340E (1977-1979)
- Ski-Doo Everest 340 (1977-1979)
- Arctic Cat Lynx 292 (1973)
- Ski-Doo Olympique 340E (1973-1979)
- Ski-Doo Elan 250 (1973)
- KYMCO Super 8 150 (2009-2013)
- Ski-Doo TNT 340 (1972-1977)
- Ski-Doo Olympique 340 (1973-1979)
- KYMCO Mongoose 50 (2004-2009)
- Yamaha SV125 Snosport (1990-1991)
- Yamaha SV125E Snosport (Electric Start) (1990-1991)
- Yamaha BR250T Bravo LT (1990, 1992-2001)
- Yamaha SV80E Snoscoot (Electric Start) (1988-1990)
- Yamaha SV80 Snoscoot (1988-1990)
- Yamaha BR250 Bravo (1982-1990, 1992-1993)
- Yamaha ET250 (1977-1981)
- Yamaha GP246 (1974)
- John Deere JDX8 (1973)
- John Deere 600 (1973)
- John Deere 400 (1972-1973)
- John Deere 500 (1972-1973)
- KYMCO Like 50 2T (2013)
- Yamaha LT3 (1973)
- Yamaha LT2 (1972)
- Yamaha YCS1 (1968)
- KYMCO ZX 50 (2001-2005)
- KYMCO Yup 50 (2002-2003)
- KYMCO Vitality 50 (2005-2007)
- KYMCO Super 9 (2002-2005, 2007-2009)
- KYMCO Super 8 50 (2009-2010)
- KYMCO Super 8 50 2T (2011-2013)
- KYMCO Sting 50 (2009-2010)
- KYMCO Sento 50 (2009-2012)
- KYMCO Like 50 (2011)
- KYMCO People 50 (2001-2006)
- KYMCO Like 50 2T LX (2012-2013)
- KYMCO Cobra Cross (2002-2003)
- KYMCO Cobra 50 (2001-2003)
- KYMCO Agility 50 (2007-2013)
- Husqvarna CR50 (1999-2001)
- Cobra CM50 (1997-2000)
- Cobra KING (1997)
- Cobra BM50 (1994-1997)
- Yamaha YSR50 (1987-1992)
- Yamaha CV80 Riva 80 (1985-1987)
- Yamaha RX50 (1983)
- Kawasaki KH400 (1976)
- Kawasaki KD125 (1976-1979)
- Kawasaki KH500 (1976)
- Kawasaki KD175 (1976-1979)
- Kawasaki KH250 (1976)
- Kawasaki KE125 (1976-1979)
- Yamaha RD125 (1975)
- Yamaha RS100 (1975-1976)
- Yamaha RD200 (1974-1975)
- Kawasaki S3 Mach II (1974-1975)
- Kawasaki KS125 (1974-1975)
- Yamaha RD350 (1973-1975)
- Yamaha LTMX (1973)
- Kawasaki S1 Mach I (1973-1975)
- Suzuki TC100 (1973-1977)
- Kawasaki F11 (1973-1975)
- Yamaha LT2M (1972)
- Yamaha CS5 (1972)
- Suzuki TC125 (1972-1977)
- Kawasaki G5 (1972-1975)
- Kawasaki S2 Mach II (1972-1973)
- Kawasaki F8 (1971-1972)
- Kawasaki F6 (1971-1973)
- Yamaha CS3 (1970-1971)
- Yamaha YR2 (1968)
- Kawasaki F4 (1969-1970)
- Kawasaki F3 Bushwhacker (1968-1970)
- Yamaha YL2 (1967)
- Yamaha YM2C (1967)
- Yamaha YR1 (1967)
- Kawasaki A7 Avenger (1967-1971)
- Kawasaki A1 Samurai (1967-1968)
- Kawasaki A7SS (1967-1971)
- Kawasaki A1SS (1967-1968)
- BMW R60/2 (1960)
- BMW R50/2 (1960)
