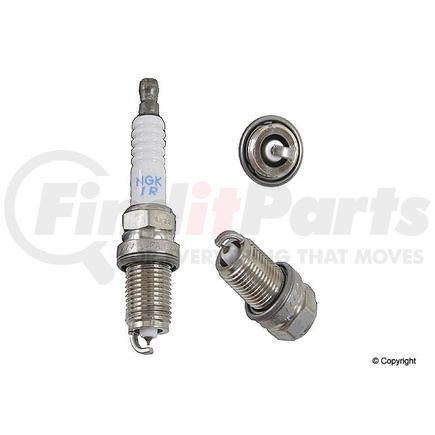

NGK SPARK PLUGS IFR7F8DS Part Description
Manufacturer
Product Description
NGK Laser Iridium Spark Plug
Features & Benefits
- ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction fine wire iridium alloy center electrode provides consistent performance
- IRIDIUM ALLOY CENTER ELECTRODE: Iridium's density (6x that of platinum) and extremely high melting point is perfect for modern high efficiency engines
- PLATINUM TIP GROUND ELECTRODE: Unless OE specified, platinum protection at the ground electrode provides excellent ignitability and service life
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
- RECOMMENDED USAGE: Best for vehicles with OE fine wire iridium alloy plugs
NGK SPARK PLUGS IFR7F8DS Specifications
Product Attributes
| Part Number | IFR7F-8DS |
| Stock Number | 5794 |
| Short Style Spark Plug | No |
| Service Number | IFR7F-8DS |
| Resistance | 5000.0 82 |
| Ground Electrode Tip Design | Standard |
| Ground Configuration | J-Gap |
| Ground Electrode Core Material | Nickel |
| Washer(s) Included | Yes |
| Grade Type | Performance |
| Electrical Terminal Type | Non-Removable Nut |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Iridium |
| Pre-Gap Size | .032 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 5/8" (16mm) |
| Insulator Height | 1.99 IN |
| Manufacturer Heat Range | 7 |
| Seat Type | Flat |
| Reach | 0.750 IN |
| Thread Diameter | 0.551 IN |
| Insulator Material | Ceramic |
| Resistor Type | Yes |
| Skirt Length | 0.0 IN |
| Ground Electrode Tip Material | Platinum |
| Skirt | No |
| Center Electrode Insulator Tip Projection | 0.14 IN |
| Center Electrode Design | Fine Wire |
| Washer Type | Crush |
| Center Electrode Projection | Mid Projection |
| Thread Size | M14 - 1.25 |
| Metallurgy | Iridium Platinum |
| Thread Type Standard | Metric |
| Pre-Gap Size | 0.8 MM |
| Insulator Height | 50.5 MM |
| Reach | 19.0 MM |
| 6648 | 0.0 MM |
| Center Electrode Insulator Tip Projection | 3.5 MM |
Additional Information
| Warranty Time UOM | MO |
| Warranty Time | 2 |
| Country of Origin (Primary) | JP |
| Harmonized Tariff Code (HTS) | 8511100000 |
| UPC | 00087295157947 |
| VMRS Code | 033003005 |
| UNSPSC | 26101732 |
NGK SPARK PLUGS IFR7F8DS Cross References
NGK SPARK PLUGS IFR7F8DS Fits Vehicles
- Honda Civic (2006-2011)
