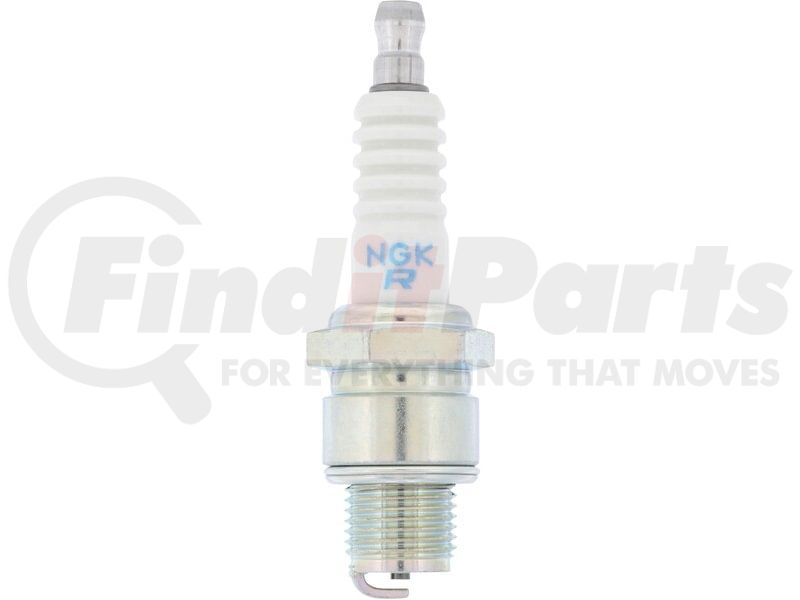

NGK SPARK PLUGS BR7HS Part Description
Manufacturer
Product Description
NGK Standard Spark Plug
Features & Benefits
- ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction nickel alloy center electrode provides consistent performance
- RECOMMENDED USAGE: Best for vehicles with OE nickel alloy plugs, not recommended on vehicles with factory precious metal plugs
- NGK's OE CERAMIC TECHNOLOGY: High grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- COLD-ROLLED THREADS: Prevents cross-threading and damage to cylinder heads
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
NGK SPARK PLUGS BR7HS Specifications
Product Attributes
| Stock Number | 4122 |
| Part Number | BR7HS |
| Short Style Spark Plug | No |
| Service Number | BR7HS |
| Resistance | 5000.0 82 |
| Ground Electrode Tip Design | Standard |
| Ground Configuration | J-Gap |
| Ground Electrode Core Material | Nickel |
| Washer(s) Included | Yes |
| Grade Type | Standard Replacement |
| Electrical Terminal Type | Removable Nut |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Nickel |
| Pre-Gap Size | .028 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 13/16" |
| Insulator Height | 2.14 IN |
| Manufacturer Heat Range | 7 |
| Seat Type | Flat |
| Reach | 0.500 IN |
| Thread Diameter | 0.551 IN |
| Insulator Material | Ceramic |
| Resistor Type | Yes |
| Skirt Length | 0.0 IN |
| Ground Electrode Tip Material | Nickel |
| Skirt | No |
| Center Electrode Insulator Tip Projection | 0.04 IN |
| Center Electrode Design | Standard |
| Washer Type | Crush |
| Center Electrode Projection | Non-Projected |
| Metallurgy | Copper |
| Thread Type Standard | Metric |
| Pre-Gap Size | 0.7 MM |
| Insulator Height | 54.3 MM |
| Reach | 12.7 MM |
| 6648 | 0.0 MM |
| Thread Size | M14 - 1.25 |
| Center Electrode Insulator Tip Projection | 1.0 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8511100000 |
| Warranty Time UOM | MO |
| Warranty Time | 2 |
| Country of Origin (Primary) | JP |
| UPC | 00087295141229 |
| VMRS Code | 033003005 |
| UNSPSC | 26101732 |
NGK SPARK PLUGS BR7HS Cross References
| Brand | Part Number |
|---|---|
| ACDelco | S42FR, R41CF |
| AUTOLITE | 4093, 414 |
| Aprilia | 8206870 |
| Autolite | 422, 3684 |
| Bosch | WR5A, WR5AC, WR5AP |
| CHAMPION | 874 |
| Champion Spark Plug | 874, 807M, 874M, RL78C, RL78, 874-1, L78C, RL82C S, 874C, RL82C, 874S, RL77J, RL4J |
| DENSO Auto Parts | TR22, W22FSR-U, 4024, 6051, W22FSR |
| E3 SPARK PLUGS | E332 |
| E3 Spark Plugs | E3.32 |
| Honda | 98076-57716 |
| John Deere | TY26710 |
| Kawasaki | 92070-1200 |
| Magneti Marelli | CW8NR |
| Makita USA | 650149790, 0650149790 |
| Motorcraft | AER2X |
| N/A | BR7HS |
| NGK | 4122 |
| Peugeot | 736954, 801752 |
| Piaggio | AP8206870 |
| Robin | 065-01408-00, 065-01401-80 |
| Suzuki | 09482-00116 |
| Yamaha | 94701-00110, 94702-00272, 94703-00110 |
NGK SPARK PLUGS BR7HS Fits Vehicles
- Indian Scout (1936-1937)
- Indian 741 (1941-1943)
- Indian Inline 4 (1936-1942)
- Indian Sport Scout (1936-1942)
- Indian Chief (1936-1953)
- Vespa Primavera Touring 150 (2015-2016)
- Vespa Primavera 150 (2015-2018)
- Vespa Primavera 50 (2015-2018)
- Sno-Jet Super-Jet 338 (1970)
- Sno-Jet Star-Jet 338 (1971, 1973)
- Sno-Jet Star-Jet +2 338 (1972)
- Sno-Jet SST 338 (1972)
- Sno-Jet S/S Jet 338 (1971)
- Ski-Doo Olympique 399 (1970)
- Ski-Doo Nordic 399E (1970)
- Ski-Doo Nordic 399 (1970)
- Moto-Ski Cadet 250 (1973-1975)
- LEM NX3 (2011)
- LEM DX3 SR (2011)
- LEM DX3 Junior (2011-2012)
- LEM DX3 Beta (2013)
- LEM DX3 (2011, 2013)
- LEM DX2 SR (2011)
- LEM DX2 Junior (2011-2012)
- LEM DX2 J Beta (2012)
- LEM DX2 Beta (2013)
- LEM DX2 (2011, 2013)
- LEM DX1 (2013)
- Ski-Doo TNT 340 (1974)
- Ski-Doo Olympique Plus (1976)
- Ski-Doo Olympique 340E (1974)
- Ski-Doo Olympique 340 (1974)
- Ski-Doo Olympique 300T (1975)
- Ski-Doo Olympique 300S (1975)
- Ski-Doo Elan 250T (1973-1974)
- Ski-Doo Elan 250E (1973-1974)
- Ski-Doo Elan 250 Deluxe (1974-1979)
- Ski-Doo Elan 250 (1973-1979)
- Moto-Ski Zephyr 340 (1973)
- Moto-Ski Nuvik (1977)
- LEM Beetlebug (2005)
- LEM LX2 SR (2004)
- LEM Condor S6 (2003-2007)
- LEM Cayman S6 (2003-2005)
- LEM Cayman LC (2003-2004)
- ATK 50 MX (1999-2002)
- Yamaha SJ700 Super Jet (1997-2001, 2006-2020)
- Yamaha RA700 WaveRaider (1997)
- Yamaha YSR50 (1988-1992)
- Yamaha WR500 WaveRunner (1987-1993)
- Yamaha WJ500 WaveJammer (1987-1990)
- Yamaha DT80 (1981-1983)
- Yamaha MX80 (1980-1982)
- Suzuki RM50 (1979-1980)
- Suzuki DS185 (1978)
- Yamaha GT80 (1976-1980)
- Suzuki GT500 (1976-1977)
- Kawasaki KV75 (1976-1980)
- Kawasaki KV100 (1976)
- Kawasaki KM100 (1976-1981)
- Kawasaki KD100M (1976-1979)
- Suzuki TS75 (1975-1977)
- Kawasaki KT250 (1975-1976)
- Kawasaki KD80 (1975-1976, 1980-1984, 1986-1987)
- Yamaha YZ80 (1974)
- Yamaha TL433F (1974)
- Suzuki XR440 (1974-1975)
- Suzuki XR400 (1974-1975)
- Suzuki TM75 (1974-1976)
- Suzuki TC185 (1974-1977)
- Suzuki 340 Nomad (1974-1975)
- Suzuki 292 Nomad (1974)
- Kawasaki MC1M (1974-1975)
- Yamaha GTMX (1973-1979)
- Yamaha GT1 (1973)
- Yamaha EL433 (1973)
- Suzuki RV125 (1973-1977)
- Suzuki GT185 (1973-1977)
- Kawasaki MC1 (1973-1975)
- Yamaha SL292 (1972-1973)
- Yamaha LS2 (1972)
- Yamaha JT2MX (1972)
- Yamaha JT2 (1972)
- Yamaha G7S (1972)
- Yamaha EW433 (1972-1973)
- Yamaha SW433 (1971-1973)
- Yamaha JT1L (1971)
- Yamaha JT1 (1971)
- Yamaha GP396 (1971)
- Suzuki TS185 (1971-1979)
- Suzuki TS125 (1971-1975)
- Suzuki T350 (1971-1972)
- Kawasaki MT1 (1971-1972, 1974-1975)
- Yamaha SW396 (1970)
- Yamaha G6S (1970-1971)
- Kawasaki G4TR (1970-1975)
- Yamaha SL396 (1969)
- Yamaha SL338 (1969, 1971-1974)
- Suzuki T250 (1969-1972)
- Kawasaki C2TR (1967-1969)
- Kawasaki C2SS (1967-1969)
- Yamaha YJ2 (1964-1965)
- Yamaha YJ1 (1964-1965)
- Aprilia SR 50 Ditech (2002-2003)
- Aprilia Scarabeo 50 Ditech (2001-2004)
- Aprilia Scarabeo 50 4T (2002-2005)
- Aprilia Scarabeo 50 2T (1993-2005)
- Aprilia Rally 50 (Air Cooled) (1995-2004)
- Husqvarna CR50 (1999-2002)
- Yamaha CY50 Jog (1992-2001)
- Honda EZ90 Cub (1991-1996)
- Yamaha GS340 (1976-1977)
