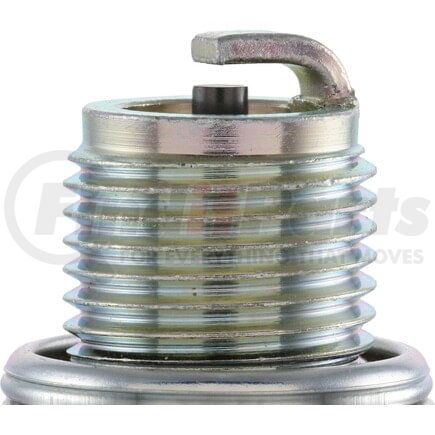

(888) 312-8812 Login SignupNGK SPARK PLUGS BR5HS NGK Standard Spark Plug
Tap to view 2 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
NGK SPARK PLUGS BR5HS Part Description
Manufacturer
Product Description
NGK Standard Spark Plug
Features & Benefits
- ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction nickel alloy center electrode provides consistent performance
- RECOMMENDED USAGE: Best for vehicles with OE nickel alloy plugs, not recommended on vehicles with factory precious metal plugs
- NGK's OE CERAMIC TECHNOLOGY: High grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- COLD-ROLLED THREADS: Prevents cross-threading and damage to cylinder heads
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
NGK SPARK PLUGS BR5HS Specifications
Product Attributes
| Part Number | BR5HS |
| Stock Number | 3722 |
| Short Style Spark Plug | No |
| Service Number | BR5HS |
| Resistance | 5000.0 82 |
| Ground Electrode Tip Design | Standard |
| Ground Configuration | J-Gap |
| Ground Electrode Core Material | Nickel |
| Washer(s) Included | Yes |
| Grade Type | Standard Replacement |
| Electrical Terminal Type | Removable Nut |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Nickel |
| Pre-Gap Size | .024 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 13/16" |
| Insulator Height | 2.14 IN |
| Manufacturer Heat Range | 5 |
| Seat Type | Flat |
| Reach | 0.500 IN |
| Thread Diameter | 0.551 IN |
| Insulator Material | Ceramic |
| Resistor Type | Yes |
| Skirt Length | 0.0 IN |
| Ground Electrode Tip Material | Nickel |
| Skirt | No |
| Center Electrode Insulator Tip Projection | 0.04 IN |
| Center Electrode Design | Standard |
| Washer Type | Crush |
| Center Electrode Projection | Non-Projected |
| Metallurgy | Copper |
| Thread Type Standard | Metric |
| Pre-Gap Size | 0.6 MM |
| Insulator Height | 54.3 MM |
| Reach | 12.7 MM |
| 6648 | 0.0 MM |
| Thread Size | M14 - 1.25 |
| Center Electrode Insulator Tip Projection | 1.0 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8511100000 |
| Warranty Time UOM | MO |
| Warranty Time | 2 |
| Country of Origin (Primary) | JP |
| UPC | 00087295137222 |
| VMRS Code | 033003005 |
| UNSPSC | 26101732 |
NGK SPARK PLUGS BR5HS Cross References
| Brand | Part Number |
|---|---|
| ACDelco | S44F, R44CF, R44F, 1844012T |
| Autolite | 425, 426, 3486, 3485 |
| Bosch | W8AP, W8AO, WR8AP, WR9AO, 241229612, 4014, WR8AC, W9ACO, WR9A0, 7502, 4214, 7902 |
| CHAMPION | 896 |
| Champion Spark Plug | 5933, RL90, L90C |
| DENSO Auto Parts | 3037, W16PR-U, 3033, W16FSR |
| Honda | 98076-55716 |
| Magneti Marelli | CW5NR |
| Motorcraft | AER4, AER4X |
| N/A | 1765052, 46F, MS851132, 882417800, E5C, N19C, 159010-03520, CW55N, CW5NJ, CW5NSZ, CW5N, CW5NS, FC6N, 3034, W16FS, W16P-U, 3036, W16FS-U, L288, L90, 896, N19, AE4, AES4C, AE4X, AE6, AV4, 415, 535, 416, 2656, 09482-00282, 09482-00309, 44F, 46FF, 422Z, 45F, M45FF, S45F, 45FF, 44FF, 94701-00069, 94702-00069, 94703-00069, W9AC, W8A, W9AC0, W8AC, W8A0, BR5HS |
| NGK | 3722 |
| Suzuki | 09482-00143 |
| Yamaha | 90793-20131, 94702-00249 |
NGK SPARK PLUGS BR5HS Fits Vehicles
- John Deere Gator CX 4x2 (2010-2015)
- Volkswagen Beetle (1950-1953)
- Volkswagen Transporter (1950-1953, 1967-1972)
- Chevrolet Corvair (1960-1969)
