NGK SPARK PLUGS TR4IX Part Description
Manufacturer
Product Description

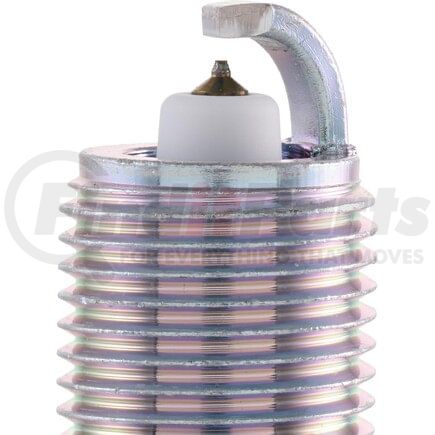

NGK Iridium IX Spark Plug
Features & Benefits
- SINGLE IRIDIUM TIP: Fine wire 0.6 millimeter iridium tip center electrode ensures high durability and a consistently stable spark
- IRIDIUM ALLOY CENTER ELECTRODE: Iridium's density (6x that of platinum) and extremely high melting point is perfect for modern high efficiency engines
- TAPERED CUT GROUND ELECTRODE: Reduced quenching design produces outstanding ignitability, improved acceleration, fuel efficiency and durability
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
- RECOMMENDED USAGE: Modified or high performance applications, or as an upgrade to OE nickel alloy spark plugs
NGK SPARK PLUGS TR4IX Specifications
Product Attributes
| Short Style Spark Plug | No |
| Service Number | TR4IX |
| Part Number | TR4IX |
| Stock Number | 7300 |
| Resistance | 5000.0 82 |
| Ground Electrode Tip Design | Taper Cut |
| Ground Configuration | J-Gap |
| Ground Electrode Core Material | Nickel |
| Washer(s) Included | No |
| Grade Type | Performance |
| Electrical Terminal Type | Non-Removable Nut |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Iridium |
| Pre-Gap Size | .040 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 5/8" (16mm) |
| Insulator Height | 2.07 IN |
| Manufacturer Heat Range | 4 |
| Seat Type | Tapered |
| Reach | 0.689 IN |
| Thread Diameter | 0.551 IN |
| Insulator Material | Ceramic |
| Resistor Type | Yes |
| Skirt Length | 0.0 IN |
| Ground Electrode Tip Material | Nickel |
| Skirt | No |
| Center Electrode Insulator Tip Projection | 0.16 IN |
| Center Electrode Design | Fine Wire |
| Center Electrode Projection | Mid Projection |
| Thread Size | M14 - 1.25 |
| Metallurgy | Single Iridium |
| Thread Type Standard | Metric |
| Pre-Gap Size | 1.0 MM |
| Insulator Height | 52.5 MM |
| Reach | 17.5 MM |
| 6648 | 0.0 MM |
| Center Electrode Insulator Tip Projection | 4.0 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8511100000 |
| Warranty Time UOM | MO |
| Warranty Time | 2 |
| Country of Origin (Primary) | JP |
| UPC | 00087295173008 |
| VMRS Code | 033003005 |
| UNSPSC | 26101732 |
NGK SPARK PLUGS TR4IX Cross References
NGK SPARK PLUGS TR4IX Fits Vehicles
- Saturn Relay (2006-2007)
- Buick Lucerne (2009-2011)
- Saturn Vue (2008-2010)
- Saturn Aura (2007-2008)
- Chevrolet Monte Carlo (2006-2007)
- Pontiac Montana (2006-2009)
- Chevrolet Uplander (2006-2009)
- Chevrolet Malibu (2006-2010)
- Buick Terraza (2006-2007)
- Chevrolet Impala (2006-2011)
- Pontiac G6 (2006-2010)
- Pontiac Tempest (1987-1991)
- Pontiac Sunbird (1991-1994)
- Pontiac Grand Prix (1988-1993)
- Pontiac 6000 (1987-1991)
- Oldsmobile Firenza (1987-1988)
- Oldsmobile Cutlass Supreme (1988-1993)
- Oldsmobile Cutlass Cruiser (1987-1989)
- Oldsmobile Cutlass Ciera (1987-1989, 1993)
- Chevrolet Lumina (1990-1994)
- Chevrolet Corsica (1987-1993)
- Chevrolet Celebrity (1987-1990)
- Chevrolet Cavalier (1987-1994)
- Chevrolet Beretta (1987-1993)
- Cadillac Cimarron (1987-1988)
- Buick Skyhawk (1987-1989)
- Buick Regal (1988-1993)
- Buick Century (1987-1989, 1993)
