(888) 312-8812 Login SignupNGK SPARK PLUGS CR8EHIX9 NGK Iridium IX Spark Plug
Tap to view 4 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
NGK SPARK PLUGS CR8EHIX9 Part Description
Manufacturer
Product Description

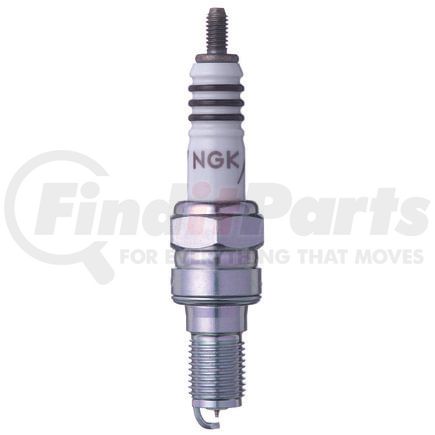

NGK Iridium IX Spark Plug
Features & Benefits
- SINGLE IRIDIUM TIP: Fine wire 0.6 millimeter iridium tip center electrode ensures high durability and a consistently stable spark
- IRIDIUM ALLOY CENTER ELECTRODE: Iridium's density (6x that of platinum) and extremely high melting point is perfect for modern high efficiency engines

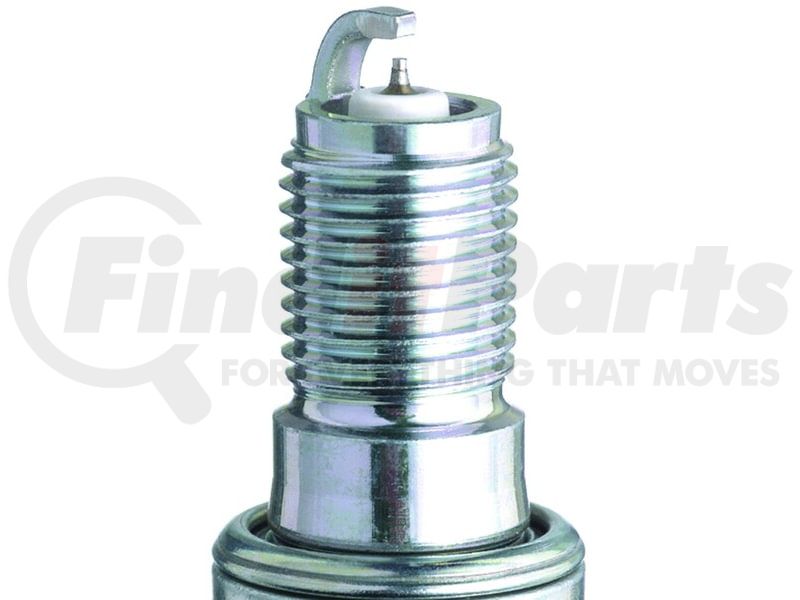

- TAPERED CUT GROUND ELECTRODE: Reduced quenching design produces outstanding ignitability, improved acceleration, fuel efficiency and durability
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
- RECOMMENDED USAGE: Modified or high performance applications, or as an upgrade to OE nickel alloy spark plugs
NGK SPARK PLUGS CR8EHIX9 Specifications
Product Attributes
| Stock Number | 3797 |
| Part Number | CR8EHIX-9 |
| Short Style Spark Plug | No |
| Service Number | CR8EHIX-9 |
| Resistance | 5000.0 82 |
| Ground Electrode Tip Design | Taper Cut |
| Ground Configuration | J-Gap |
| Ground Electrode Core Material | Nickel |
| Washer(s) Included | Yes |
| Grade Type | Performance |
| Electrical Terminal Type | Stud |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Iridium |
| Pre-Gap Size | .036 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 5/8" (16mm) |
| Insulator Height | 1.88 IN |
| Manufacturer Heat Range | 8 |
| Seat Type | Flat |
| Reach | 0.750 IN |
| Thread Diameter | 0.394 IN |
| Insulator Material | Ceramic |
| Resistor Type | Yes |
| Skirt Length | 0.0 IN |
| Ground Electrode Tip Material | Nickel |
| Skirt | No |
| Center Electrode Insulator Tip Projection | 0.08 IN |
| Center Electrode Design | Fine Wire |
| Washer Type | Crush |
| Center Electrode Projection | Mid Projection |
| Thread Size | M10 - 1.0 |
| Metallurgy | Single Iridium |
| Thread Type Standard | Metric |
| Pre-Gap Size | 0.9 MM |
| Insulator Height | 47.7 MM |
| Reach | 19.0 MM |
| 6648 | 0.0 MM |
| Center Electrode Insulator Tip Projection | 2.15 MM |
Additional Information
| Warranty Time UOM | MO |
| Warranty Time | 2 |
| Country of Origin (Primary) | JP |
| Harmonized Tariff Code (HTS) | 8511100000 |
| UPC | 00087295137970 |
| VMRS Code | 033003005 |
| UNSPSC | 26101732 |
NGK SPARK PLUGS CR8EHIX9 Cross References
| Brand | Part Number |
|---|---|
| AUTOLITE | XS4303 |
| DENSO Auto Parts | 5368, U24FER-ZU9, IUH24, 3797 |
| Daihatsu | 999-06910-X9-021 |
| E3 SPARK PLUGS | E338 |
| Honda | 98059-58916-HE, 98059-5891F |
| N/A | CR8EHIX-9 |
| NGK | 3797 |
| Yamaha | 90793-20162 |
NGK SPARK PLUGS CR8EHIX9 Fits Vehicles
- Honda PCX150 (2015)
- Honda SH150i (2010)
- Honda CRF150R (2007-2009, 2012-2019)
- Honda CRF150R Expert (2007-2009, 2012-2017, 2019)
- Honda NPS50S Ruckus (2004-2009)
- Honda FSC600A Silver Wing ABS (2003-2013)
- Honda NPS50 Ruckus (2003-2009, 2011-2020)
- Honda FSC600 Silver Wing (2002-2010)
- Honda CHF50P Metropolitan II (2002-2005)
- Honda CHF50 Metropolitan (2002-2009)
- Honda CB900F 919 (2002-2007)
- Honda VFR800 Interceptor (1998-2001)
- Honda XR250R (1996-2004)
- Honda VF750CD Magna Deluxe (1995-1996)
- Honda VF750C Magna (1994-2003)
- Honda CBR900RR (1993-1999)
- Honda ST1100 ABS (1992-2003)
- Honda ST1100 (1991-2003)
- Honda VFR750F Interceptor (1990-1997)
- Honda VFR750R RC30 (1990)
- Honda VTR250 Interceptor (1989-1990)
- Honda CB400F CB-1 (1989-1990)
