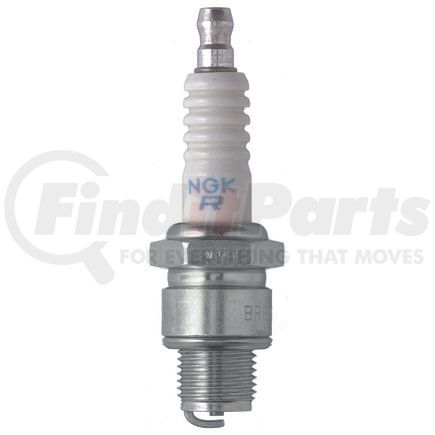

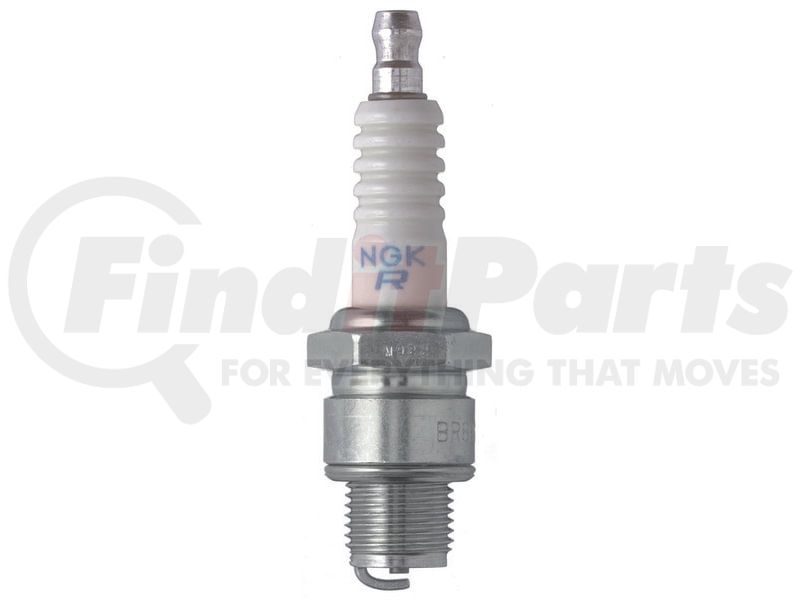

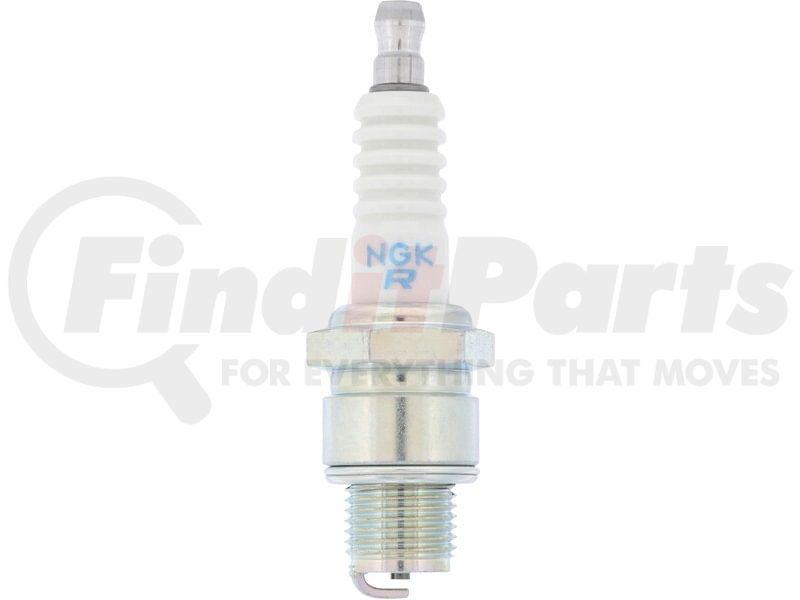

NGK SPARK PLUGS BR4HS Part Description
Manufacturer
Product Description
NGK Standard Spark Plug
Features & Benefits
- ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction nickel alloy center electrode provides consistent performance
- RECOMMENDED USAGE: Best for vehicles with OE nickel alloy plugs, not recommended on vehicles with factory precious metal plugs
- NGK's OE CERAMIC TECHNOLOGY: High grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- COLD-ROLLED THREADS: Prevents cross-threading and damage to cylinder heads
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
NGK SPARK PLUGS BR4HS Specifications
Product Attributes
| Part Number | BR4HS |
| Stock Number | 3322 |
| Short Style Spark Plug | No |
| Service Number | BR4HS |
| Resistance | 5000.0 82 |
| Ground Electrode Tip Design | Standard |
| Ground Configuration | J-Gap |
| Ground Electrode Core Material | Nickel |
| Washer(s) Included | Yes |
| Grade Type | Standard Replacement |
| Electrical Terminal Type | Removable Nut |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Nickel |
| Pre-Gap Size | .028 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 13/16" |
| Insulator Height | 2.14 IN |
| Manufacturer Heat Range | 4 |
| Seat Type | Flat |
| Reach | 0.500 IN |
| Thread Diameter | 0.551 IN |
| Insulator Material | Ceramic |
| Resistor Type | Yes |
| Skirt Length | 0.0 IN |
| Ground Electrode Tip Material | Nickel |
| Skirt | No |
| Center Electrode Insulator Tip Projection | 0.04 IN |
| Center Electrode Design | Standard |
| Washer Type | Crush |
| Center Electrode Projection | Non-Projected |
| Metallurgy | Copper |
| Thread Type Standard | Metric |
| Pre-Gap Size | 0.7 MM |
| Insulator Height | 54.3 MM |
| Reach | 12.7 MM |
| 6648 | 0.0 MM |
| Thread Size | M14 - 1.25 |
| Center Electrode Insulator Tip Projection | 1.0 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8511100000 |
| Warranty Time UOM | MO |
| Warranty Time | 2 |
| Country of Origin (Primary) | JP |
| UPC | 00087295133224 |
| VMRS Code | 033003005 |
| UNSPSC | 26101732 |
NGK SPARK PLUGS BR4HS Cross References
| Brand | Part Number |
|---|---|
| AUTOLITE | 425 |
| Bosch | W9AO, WR10A, WR10AC |
| CHAMPION | 896 |
| Champion Spark Plug | RL19 |
| DENSO Auto Parts | 4017, W14FR-U |
| Daihatsu | 999-06910-P9-001 |
| Honda | 98076-54716, 98076-54746 |
| John Deere | TY6126 |
| Kawasaki | 92070-2070 |
| Kubota | 12366-6771-6 |
| N/A | AE8, 417, 420Z, CW25N, 150261030, 159010-10050, 98076 54710, 98076 54770, 98076-54710, 98076-54770, CW2N, CW3N, CW4N, CW4NJ, W14F, W14F-U10, 4012, W14F-U, 13281-6771-6, 13641-6771-1, 90048-51020-000, 92070-2068, 92070-2090, L14, AE7, AV6, AV6C, AV6CU, 065-01400-20, 065-01401-10, 536, 09482-00011, 09482-00142, 09482-00289, 160232-78010, 47FF, 94703-00001, W10A, W9A0, W12A, W10AC, W9A, BR4HS |
| NGK | 3322 |
| Robin | 065-01403-10 |
| Suzuki | 09482-00358 |
| Yamaha | 90793-20130 |
| Yanmar | 160769-78010 |
