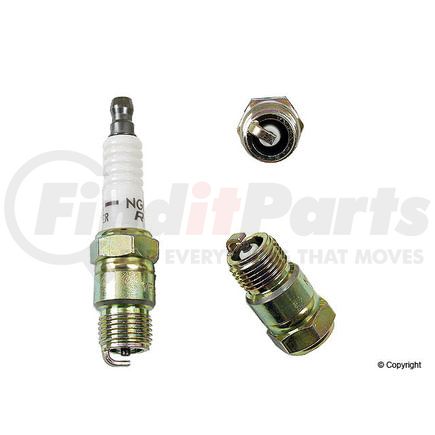

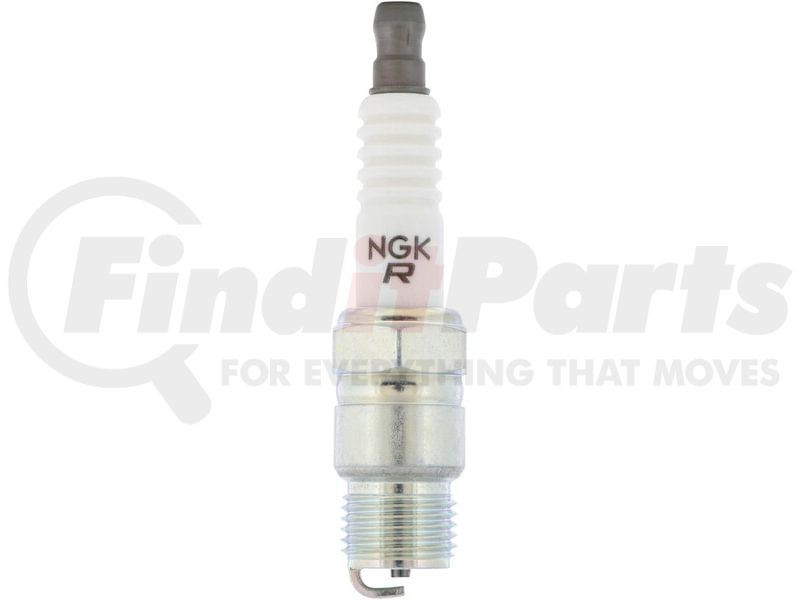

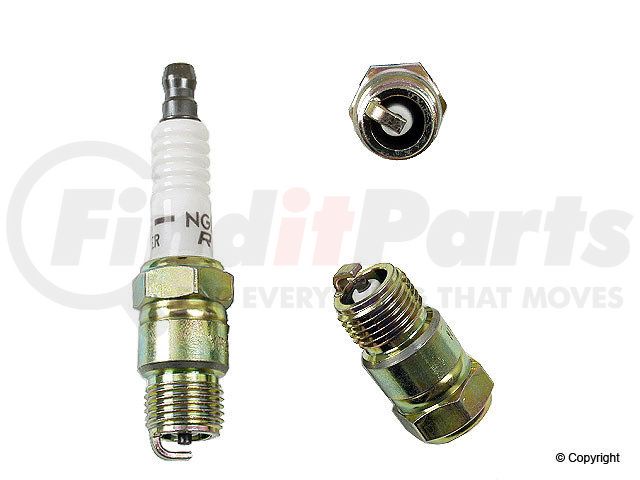

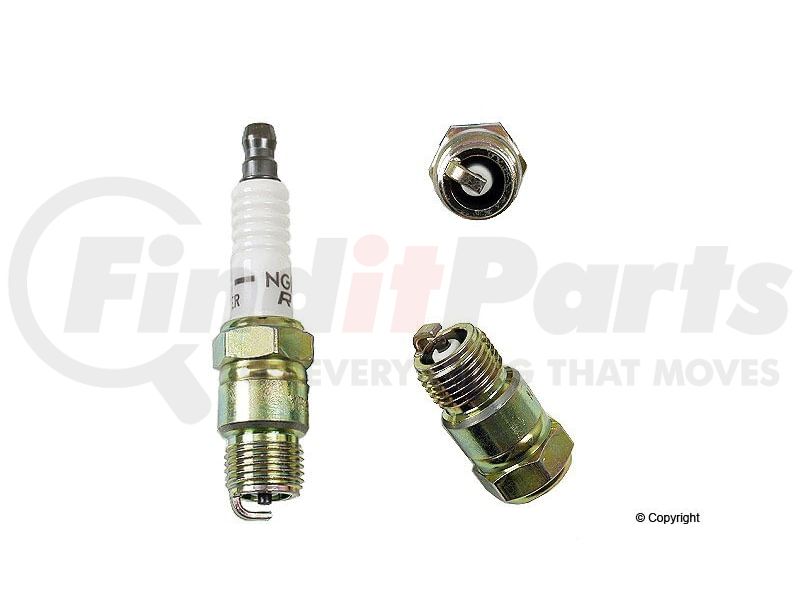

NGK SPARK PLUGS YR5 Part Description
Manufacturer
Product Description
NGK V-Power Spark Plug
Features & Benefits
- ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction nickel alloy center electrode with V-groove provides consistent performance
- RECOMMENDED USAGE: Best for vehicles with OE nickel alloy plugs, not recommended on vehicles with factory precious metal plugs
- NGK's OE CERAMIC TECHNOLOGY: High grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges

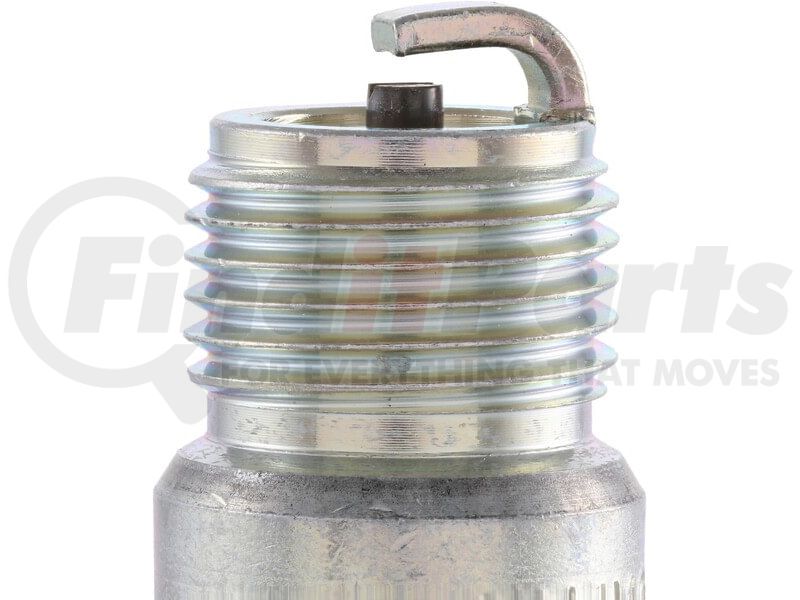

- COLD-ROLLED THREADS: Prevents cross-threading and damage to cylinder heads
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
NGK SPARK PLUGS YR5 Specifications
Product Attributes
| Short Style Spark Plug | No |
| Service Number | YR5 |
| Part Number | YR5 |
| Stock Number | 7052 |
| Resistance | 5000.0 82 |
| Ground Electrode Tip Design | Standard |
| Ground Configuration | J-Gap |
| Ground Electrode Core Material | Nickel |
| Washer(s) Included | No |
| Grade Type | Standard Replacement |
| Electrical Terminal Type | Non-Removable Nut |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Nickel |
| Pre-Gap Size | .040 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 5/8" (16mm) |
| Insulator Height | 2.19 IN |
| Manufacturer Heat Range | 5 |
| Seat Type | Tapered |
| Reach | 0.460 IN |
| Thread Diameter | 0.551 IN |
| Insulator Material | Ceramic |
| Resistor Type | Yes |
| Skirt Length | 0.0 IN |
| Ground Electrode Tip Material | Nickel |
| Skirt | No |
| Center Electrode Insulator Tip Projection | 0.04 IN |
| Center Electrode Design | Standard |
| Center Electrode Projection | Non-Projected |
| Thread Size | M14 - 1.25 |
| Metallurgy | Copper |
| Thread Type Standard | Metric |
| Pre-Gap Size | 1.0 MM |
| Insulator Height | 55.5 MM |
| Reach | 11.2 MM |
| 6648 | 0.0 MM |
| Center Electrode Insulator Tip Projection | 1.0 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8511100000 |
| Warranty Time UOM | MO |
| Warranty Time | 2 |
| Country of Origin (Primary) | JP |
| UPC | 00087295170526 |
| VMRS Code | 033003005 |
| UNSPSC | 26101732 |
NGK SPARK PLUGS YR5 Cross References
| Brand | Part Number |
|---|---|
| ACCEL | 566 |
| ACDelco | 1835712T, R46T, R45T, R44T, 19300383, MR44T, 44T |
| Autolite | 144, 146, 143, 145, 147, 5285, 145BP, 3265, 3267, 3266 |
| Beck/Arnley | 1765192 |
| Bosch | 7568, HR8A, HR9A, 7972, 7983, 7572, 7968, HR10A, HR10AC, HR8AC, HR9AC, 7583 |
| CHAMPION | 113 |
| Champion Spark Plug | 113C2, 4113-2, 113, 4113, RV12C |
| DENSO Auto Parts | T16R-U, 5029 |
| E3 SPARK PLUGS | E340 |
| Motorcraft | AF4C, ARF4, ARF8, ARF6, ASF8 |
| N/A | YR5 |
| NGK | 7052 |
NGK SPARK PLUGS YR5 Fits Vehicles
- GMC P6000 (1986-1990, 1992-1996)
- Chevrolet S7 (1987, 1989-1990)
- Chevrolet P60 (1986-1990, 1992-1996)
- GMC P6500 (1992-1996)
- Chevrolet P6000 (1992-1996)
- GMC T7500 (1997-1998)
- Chevrolet T6500 (1997-1998)
- Chevrolet T7500 (1997-1998)
- GMC B7 (1993-1998)
- GMC B6000 (1986-1991)
- GMC C6500 Topkick (1997-1998)
- GMC C7500 Topkick (1997-1998)
- Chevrolet B60 (1986-1991)
- Chevrolet B7 (1993-1998)
- Chevrolet C7500 Kodiak (1997-1998)
- Chevrolet C6500 Kodiak (1997-1998)
- GMC C6000 Topkick (1990-1996)
- Chevrolet C5500 Kodiak (1990-1991)
- Chevrolet C70 Kodiak (1990-1996)
- Chevrolet C60 Kodiak (1990-1996)
- GMC C7000 Topkick (1990-1996)
- GMC C5000 Topkick (1990-1991)
- GMC C7000 (1986-1990)
- Chevrolet C60 (1986-1990)
- Chevrolet C70 (1986-1990)
- GMC C6000 (1986-1990)
- Chevrolet C50 (1986-1990)
- Pontiac Ventura (1972)
- GMC P35/P3500 Van (1970-1974)
- GMC P25/P2500 Van (1970-1974)
- GMC P15/P1500 Van (1970, 1972-1974)
- GMC K35/K3500 Pickup (1970-1974)
- GMC K25/K2500 Suburban (1970-1974)
- GMC K25/K2500 Pickup (1970-1974)
- GMC K15/K1500 Suburban (1970-1974)
- GMC K15/K1500 Pickup (1970-1974)
- GMC G35/G3500 Van (1971-1974)
- GMC G25/G2500 Van (1970-1974)
- GMC G15/G1500 Van (1970-1974)
- GMC C35/C3500 Pickup (1970-1974)
- GMC C25/C2500 Suburban (1970-1974)
- GMC C25/C2500 Pickup (1970-1974)
- GMC C15/C1500 Suburban (1970-1974)
- GMC C15/C1500 Pickup (1970-1974)
- Chevrolet Townsman (1970, 1972)
- Chevrolet P30 Van (1970-1974)
- Chevrolet P20 Van (1970-1974)
- Chevrolet P10 Van (1970, 1972-1974)
- Chevrolet Nova (1970, 1972-1974)
- Chevrolet Monte Carlo (1970-1974)
- Chevrolet Malibu (1973-1974)
- Chevrolet Kingswood (1972)
- Chevrolet K30 Pickup (1970-1974)
- Chevrolet K20 Pickup (1970-1974)
- Chevrolet K10 Pickup (1970-1974)
- Chevrolet Impala (1970, 1972-1974)
- Chevrolet G30 Van (1971-1974)
- Chevrolet G20 Van (1970-1974)
- Chevrolet G10 Van (1970, 1972-1974)
- Chevrolet Corvette (1969-1970, 1972-1974)
- Chevrolet Chevelle (1970-1973)
- Chevrolet Caprice (1970, 1972-1974)
- Chevrolet Camaro (1970, 1972-1974)
- Chevrolet C30 Pickup (1970-1974)
- Chevrolet C20 Pickup (1970-1974)
- Chevrolet C10 Pickup (1970-1974)
- Chevrolet Brookwood (1972)
- Chevrolet Blazer (1969-1974)
- Chevrolet Biscayne (1970, 1972)
- Chevrolet Bel Air (1970, 1972-1974)
- Buick Apollo (1973-1974)
- GMC V2500 (1987)
- GMC V3500 (1987-1989)
- GMC Sprint (1972-1977)
- GMC R3500 (1987-1989)
- GMC R2500 (1987-1988)
- GMC P3500 (1979-1989)
- GMC P35 (1975-1978)
- GMC P2500 (1979-1987, 1989)
- GMC P25 (1975-1978)
- GMC P1500 (1979-1980)
- GMC P15 (1975-1978)
- GMC K3500 (1979-1986)
- GMC K35 (1977-1978)
- GMC K2500 Suburban (1979-1986)
- GMC K25 Suburban (1975-1978)
- GMC K2500 (1979-1986)
- GMC K25 (1975-1978)
- GMC K1500 Suburban (1979-1984)
- GMC K15 Suburban (1975-1978)
- GMC K1500 (1979-1985)
- GMC K15 (1975-1978)
- GMC Jimmy (1970-1981)
- GMC G3500 (1979-1988)
- GMC G35 (1975-1978)
- GMC G2500 (1979-1983, 1985-1986)
- GMC G25 (1975-1978)
- GMC G1500 (1979-1983)
- GMC G15 (1975-1978)
- GMC Caballero (1978-1979)
- GMC C3500 (1979-1986)
- GMC C35 (1975-1978)
- GMC C2500 Suburban (1979-1986)
- GMC C25 Suburban (1975-1978)
- GMC C2500 (1979-1986)
- GMC C25 (1975-1978)
- GMC C1500 Suburban (1979-1983, 1985-1986)
- GMC C15 Suburban (1975-1978)
- GMC C1500 (1979-1983, 1985-1986)
- GMC C15 (1975-1978)
- Chevrolet V3500 (1989)
- Chevrolet V30 (1987-1988)
- Chevrolet V20 (1987)
- Chevrolet R3500 (1989)
- Chevrolet R30 (1987-1988)
- Chevrolet R20 (1987-1988)
- Chevrolet P30 (1975-1989)
- Chevrolet P20 (1975-1989)
- Chevrolet P10 (1975-1980)
- Chevrolet Laguna (1973-1975)
- Chevrolet K30 (1977-1986)
- Chevrolet K20 Suburban (1970-1986)
- Chevrolet K20 (1975-1986)
- Chevrolet K10 Suburban (1970-1983, 1985-1986)
- Chevrolet K10 (1975-1986)
- Chevrolet G30 (1975-1988)
- Chevrolet G20 (1975-1986)
- Chevrolet G10 (1975-1983)
- Chevrolet El Camino (1969-1974, 1976-1979)
- Chevrolet C30 (1975-1986)
- Chevrolet C20 Suburban (1970-1986)
- Chevrolet C20 (1975-1986)
- Chevrolet C10 Suburban (1970-1981, 1985-1986)
- Chevrolet C10 (1975-1980, 1982-1983, 1985-1986)
- Chevrolet K5 Blazer (1975-1981)
