NGK SPARK PLUGS B7S Part Description
Manufacturer
Product Description

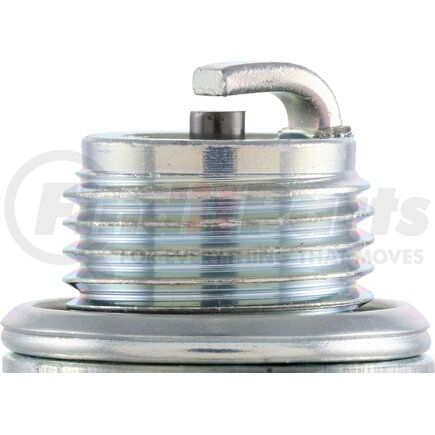

NGK Standard Spark Plug
Features & Benefits
- ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction nickel alloy center electrode provides consistent performance
- RECOMMENDED USAGE: Best for vehicles with OE nickel alloy plugs, not recommended on vehicles with factory precious metal plugs
- NGK's OE CERAMIC TECHNOLOGY: High grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- COLD-ROLLED THREADS: Prevents cross-threading and damage to cylinder heads
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
NGK SPARK PLUGS B7S Specifications
Product Attributes
| Short Style Spark Plug | No |
| Stock Number | 3710 |
| Part Number | B7S |
| Service Number | B7S |
| Resistance | 0.0 82 |
| Ground Electrode Tip Design | Standard |
| Ground Configuration | J-Gap |
| Ground Electrode Core Material | Nickel |
| Washer(s) Included | Yes |
| Grade Type | Standard Replacement |
| Electrical Terminal Type | Removable Nut |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Nickel |
| Pre-Gap Size | .028 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 13/16" |
| Insulator Height | 2.17 IN |
| Manufacturer Heat Range | 7 |
| Seat Type | Flat |
| Reach | 0.375 IN |
| Thread Diameter | 0.551 IN |
| Insulator Material | Ceramic |
| Resistor Type | No |
| Skirt Length | 0.0 IN |
| Ground Electrode Tip Material | Nickel |
| Skirt | No |
| Center Electrode Insulator Tip Projection | 0.04 IN |
| Center Electrode Design | Standard |
| Washer Type | Crush |
| Center Electrode Projection | Non-Projected |
| Metallurgy | Copper |
| Thread Type Standard | Metric |
| Pre-Gap Size | 0.7 MM |
| Insulator Height | 55.0 MM |
| Reach | 9.5 MM |
| 6648 | 0.0 MM |
| Thread Size | M14 - 1.25 |
| Center Electrode Insulator Tip Projection | 1.0 MM |
Additional Information
| Warranty Time UOM | MO |
| Warranty Time | 2 |
| Country of Origin (Primary) | JP |
| Harmonized Tariff Code (HTS) | 8511100000 |
| UPC | 00087295137109 |
| VMRS Code | 033003005 |
| UNSPSC | 26101732 |
NGK SPARK PLUGS B7S Cross References
| Brand | Part Number |
|---|---|
| ACCEL | 123 |
| ACDelco | M42K, C41, S42, MC44, SB41 |
| AUTOLITE | 303 |
| Autolite | 313, 3013 |
| Bosch | W4E2, 7534, W5EC |
| CHAMPION | 823 |
| Champion Spark Plug | J4, J5, UJ81C, J4C, UJ81J, 825, 825S, J4J, UJ4J, 825C |
| DENSO Auto Parts | W22S, 4027, W22S-U |
| Kawasaki | 92070-2093 |
| Kubota | 13412-6771-6 |
| Magneti Marelli | CW8CJ |
| Mitsubishi | FR66478 |
| Motorcraft | AZ2, A2, A2C, A2X, AT2 |
| N/A | 159010-00131, B7S |
| NGK | 3710 |
| Suzuki | 09482-00053 |
