(888) 312-8812 Login SignupNGK SPARK PLUGS DR9EA NGK Standard Spark Plug
Tap to view 2 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >

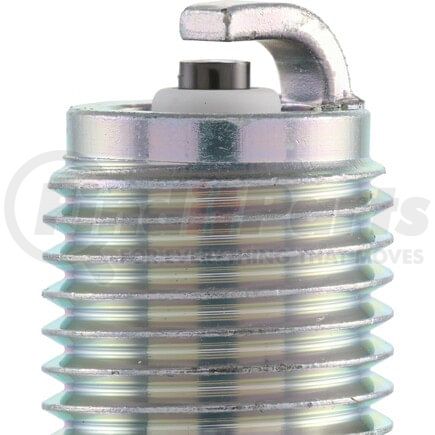

NGK SPARK PLUGS DR9EA Part Description
Manufacturer
Product Description
NGK Standard Spark Plug
Features & Benefits
- ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction nickel alloy center electrode provides consistent performance
- RECOMMENDED USAGE: Best for vehicles with OE nickel alloy plugs, not recommended on vehicles with factory precious metal plugs
- NGK's OE CERAMIC TECHNOLOGY: High grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- COLD-ROLLED THREADS: Prevents cross-threading and damage to cylinder heads
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
NGK SPARK PLUGS DR9EA Specifications
Product Attributes
| Stock Number | 3437 |
| Part Number | DR9EA |
| Short Style Spark Plug | No |
| Service Number | DR9EA |
| Resistance | 5000.0 82 |
| Ground Electrode Tip Design | Standard |
| Ground Configuration | J-Gap |
| Ground Electrode Core Material | Nickel |
| Washer(s) Included | Yes |
| Grade Type | Standard Replacement |
| Electrical Terminal Type | Stud |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Nickel |
| Pre-Gap Size | .028 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 18mm |
| Insulator Height | 1.97 IN |
| Manufacturer Heat Range | 9 |
| Seat Type | Flat |
| Reach | 0.750 IN |
| Thread Diameter | 0.472 IN |
| Insulator Material | Ceramic |
| Resistor Type | Yes |
| Skirt Length | 0.0 IN |
| Ground Electrode Tip Material | Nickel |
| Skirt | No |
| Center Electrode Insulator Tip Projection | 0.06 IN |
| Center Electrode Design | Standard |
| Washer Type | Crush |
| Center Electrode Projection | Non-Projected |
| Metallurgy | Copper |
| Thread Type Standard | Metric |
| Pre-Gap Size | 0.7 MM |
| Insulator Height | 50.0 MM |
| Reach | 19.0 MM |
| 6648 | 0.0 MM |
| Thread Size | M12 - 1.25 |
| Center Electrode Insulator Tip Projection | 1.6 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8511100000 |
| Warranty Time UOM | MO |
| Warranty Time | 2 |
| Country of Origin (Primary) | JP |
| UPC | 00087295134375 |
| VMRS Code | 033003005 |
| UNSPSC | 26101732 |
NGK SPARK PLUGS DR9EA Cross References
| Brand | Part Number |
|---|---|
| AUTOLITE | 4132 |
| Bosch | 7700, X3CP0, 7770, 7701 |
| CHAMPION | 88091 |
| Champion Spark Plug | RAX92C |
| DENSO Auto Parts | 4116, X27ESR-U |
| Kawasaki | 92070-1189 |
| N/A | DR9EA |
| NGK | 3437 |
| Suzuki | 09482-00400 |
| Yamaha | 94701-00340, 94703-00340 |
NGK SPARK PLUGS DR9EA Fits Vehicles
- KTM 660 Rally (2003-2004)
- Moto Guzzi V10 Centauro GT (1998)
- Moto Guzzi V10 Centauro Sport (1998)
- Kawasaki EX500 Ninja 500R (1997-2009)
- Kawasaki EN500C Vulcan 500 LTD (1996-2009)
- Kawasaki ZR550 Zephyr (1990-1991)
- Lamborghini Diablo (1992-1996)
