NGK SPARK PLUGS TR6IX Part Description
Manufacturer
Product Description

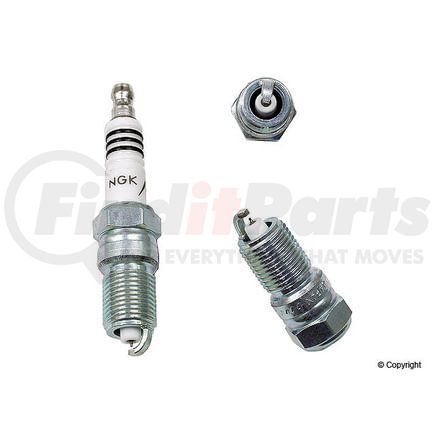

NGK Iridium IX Spark Plug
Features & Benefits
- SINGLE IRIDIUM TIP: Fine wire 0.6 millimeter iridium tip center electrode ensures high durability and a consistently stable spark
- IRIDIUM ALLOY CENTER ELECTRODE: Iridium's density (6x that of platinum) and extremely high melting point is perfect for modern high efficiency engines
- TAPERED CUT GROUND ELECTRODE: Reduced quenching design produces outstanding ignitability, improved acceleration, fuel efficiency and durability
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
- RECOMMENDED USAGE: Modified or high performance applications, or as an upgrade to OE nickel alloy spark plugs
NGK SPARK PLUGS TR6IX Specifications
Product Attributes
| Short Style Spark Plug | No |
| Service Number | TR6IX |
| Stock Number | 3689 |
| Part Number | TR6IX |
| Resistance | 5000.0 82 |
| Ground Electrode Tip Design | Taper Cut |
| Ground Configuration | J-Gap |
| Ground Electrode Core Material | Nickel |
| Washer(s) Included | No |
| Grade Type | Performance |
| Electrical Terminal Type | Non-Removable Nut |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Iridium |
| Pre-Gap Size | .040 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 5/8" (16mm) |
| Insulator Height | 2.07 IN |
| Manufacturer Heat Range | 6 |
| Seat Type | Tapered |
| Reach | 0.689 IN |
| Thread Diameter | 0.551 IN |
| Insulator Material | Ceramic |
| Resistor Type | Yes |
| Skirt Length | 0.0 IN |
| Ground Electrode Tip Material | Nickel |
| Skirt | No |
| Center Electrode Insulator Tip Projection | 0.16 IN |
| Center Electrode Design | Fine Wire |
| Center Electrode Projection | Mid Projection |
| Thread Size | M14 - 1.25 |
| Metallurgy | Single Iridium |
| Thread Type Standard | Metric |
| Pre-Gap Size | 1.0 MM |
| Insulator Height | 52.5 MM |
| Reach | 17.5 MM |
| 6648 | 0.0 MM |
| Center Electrode Insulator Tip Projection | 4.0 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8511100000 |
| Warranty Time UOM | MO |
| Warranty Time | 2 |
| Country of Origin (Primary) | JP |
| UPC | 00087295136898 |
| VMRS Code | 033003005 |
| UNSPSC | 26101732 |
NGK SPARK PLUGS TR6IX Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 41-812, 41-104, 12571165, 92143446, 41-105, 41-106, 41-107, 41-108, 41-950 |
| AUTOLITE | XP103 |
| Aston Martin | 07-85126-PK |
| Bosch | 9608, HR6KII33X, H7LDCR |
| DENSO Auto Parts | 5326, IT20TT, 4714, IT20, T20ERR-U |
| E3 SPARK PLUGS | E353 |
| Ford | AGSF12FM1, AGSF22FM, AGSF22FM1, AWSF22FM, AWSF22PP, CGSF12YP |
| General Motors | 12571165, 19301811 |
| Mazda | ZZN2-18-110D, ZZR1-18-100 |
| Motorcraft | SP-405, SP-471, SP-500, SP-536 |
| N/A | TR6IX |
| NGK | 3689 |
| Omnicraft | QSP4 |
| Torch | Q6RTP-11 |
NGK SPARK PLUGS TR6IX Fits Vehicles
- Chevrolet Camaro (2012-2015)
- Rover 2000 (1968-1971)
- Cadillac CTS (2009-2015)
- Ford Mustang (2007-2014)
- Lincoln Town Car (2006-2011)
- Mercury Grand Marquis (2006-2011)
- Chevrolet Corvette (2006-2013)
- Ford GT (2005-2006)
- Ford F-150 Heritage (2004)
- Mazda B3000 (1999-2001)
- Aston Martin DB7 (2000)
- Mercury Sable (2001, 2003-2005)
- Ford Taurus (1999-2006)
- Ford Ranger (1999-2004)
- Ford F-150 (1999-2003)
- Ford Crown Victoria (1996-2011)
- Pontiac Grand Prix (1989-1990)
- Pontiac Firebird (1989)
