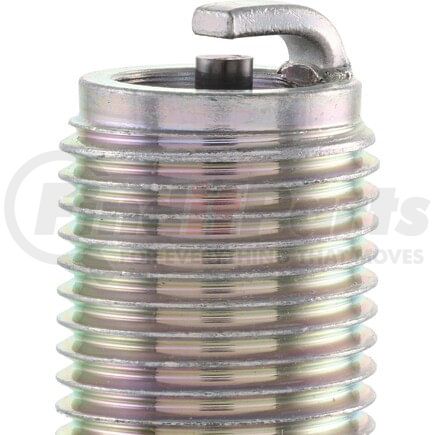

(888) 312-8812 Login SignupNGK SPARK PLUGS BR5ES NGK Standard Spark Plug
Tap to view 2 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
NGK SPARK PLUGS BR5ES Part Description
Manufacturer
Product Description
NGK Standard Spark Plug
Features & Benefits
- ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction nickel alloy center electrode provides consistent performance
- RECOMMENDED USAGE: Best for vehicles with OE nickel alloy plugs, not recommended on vehicles with factory precious metal plugs
- NGK's OE CERAMIC TECHNOLOGY: High grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- COLD-ROLLED THREADS: Prevents cross-threading and damage to cylinder heads
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
NGK SPARK PLUGS BR5ES Specifications
Product Attributes
| Part Number | BR5ES |
| Stock Number | 5866 |
| Short Style Spark Plug | No |
| Service Number | BR5ES |
| Resistance | 5000.0 82 |
| Ground Electrode Tip Design | Standard |
| Ground Configuration | J-Gap |
| Ground Electrode Core Material | Nickel |
| Washer(s) Included | Yes |
| Grade Type | Standard Replacement |
| Electrical Terminal Type | Removable Nut |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Nickel |
| Pre-Gap Size | .036 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 13/16" |
| Insulator Height | 2.13 IN |
| Manufacturer Heat Range | 5 |
| Seat Type | Flat |
| Reach | 0.750 IN |
| Thread Diameter | 0.551 IN |
| Insulator Material | Ceramic |
| Resistor Type | Yes |
| Skirt Length | 0.0 IN |
| Ground Electrode Tip Material | Nickel |
| Skirt | No |
| Center Electrode Insulator Tip Projection | 0.04 IN |
| Center Electrode Design | Standard |
| Washer Type | Crush |
| Center Electrode Projection | Non-Projected |
| Metallurgy | Copper |
| Thread Type Standard | Metric |
| Pre-Gap Size | 0.9 MM |
| Insulator Height | 54.0 MM |
| Reach | 19.0 MM |
| 6648 | 0.0 MM |
| Thread Size | M14 - 1.25 |
| Center Electrode Insulator Tip Projection | 1.0 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8511100000 |
| Warranty Time UOM | MO |
| Warranty Time | 2 |
| Country of Origin (Primary) | JP |
| UPC | 00087295158661 |
| VMRS Code | 033003005 |
| UNSPSC | 26101732 |
NGK SPARK PLUGS BR5ES Cross References
| Brand | Part Number |
|---|---|
| ACDelco | R46N, R46XL |
| Autolite | 406, 405, 3465, 3466 |
| Beck/Arnley | 1765112 |
| Bosch | WR8CC, WR9CC, 7510, W8CO, 4235, WR8C, 4035, 7904, WR8CP, WR9C, 7504 |
| CHAMPION | 123 |
| Champion Spark Plug | RN8 |
| DENSO Auto Parts | 3023, 3110, W16ESR-L, W16ESR-U, 3024, W16ES-L, W16ESL-11 |
| Daihatsu | 999-06910-P9-006 |
| Honda | 98079-55176, 98079-55816, 98079-55849, 98079-55847 |
| Kawasaki | 92070-1042 |
| Kubota | 12681-6774-1 |
| Magneti Marelli | CW6LR |
| Motorcraft | AGR41, AGR51 |
| N/A | 146, 932-05410-00, 9-82513107, MS851162, 382420800, L19C, 9-82513107-0, 9-82513107-1, 1765058, CW4A, CW5L, CW5LJ, CW5LSZ, CW6L, CW6LS, CW5LS, CW6LJ, CW6LSZ, 98079-55178, 98079-55810, 98079-55840, W16ES-U, 3025, W16ES, 90048-51033-000, N288, SP466, AG5, AG4, AG5CU, AGS4C, 395, 396, 397, 46N, 46XL, 90890-78081, 94701-00078, 94703-00078, 22401-M7715, 22401-P8815, B2401-89902, B2401-M7715, 22401M7715, W8C, W8C0, W8CC, BR5ES |
| NGK | 5866 |
| Nissan | 22401-M7915, B2401-M7915 |
| Yamaha | 94701-00311, 94703-00311 |
NGK SPARK PLUGS BR5ES Fits Vehicles
- Nissan Bluebird (1959-1961)
- Yamaha G2-A (1985-1988)
- Nissan 411 (1966-1967)
- Nissan 320 Pickup (1961-1965)
- Volkswagen Campmobile (1972-1974)
- Nissan 520 Pickup (1965-1968)
- Chevrolet P30 Series (1962, 1964-1965)
- Chevrolet Corvette (1969)
- Chevrolet Blazer (1969)
- Volkswagen Vanagon (1980-1983)
- Volkswagen Transporter (1972-1979)
