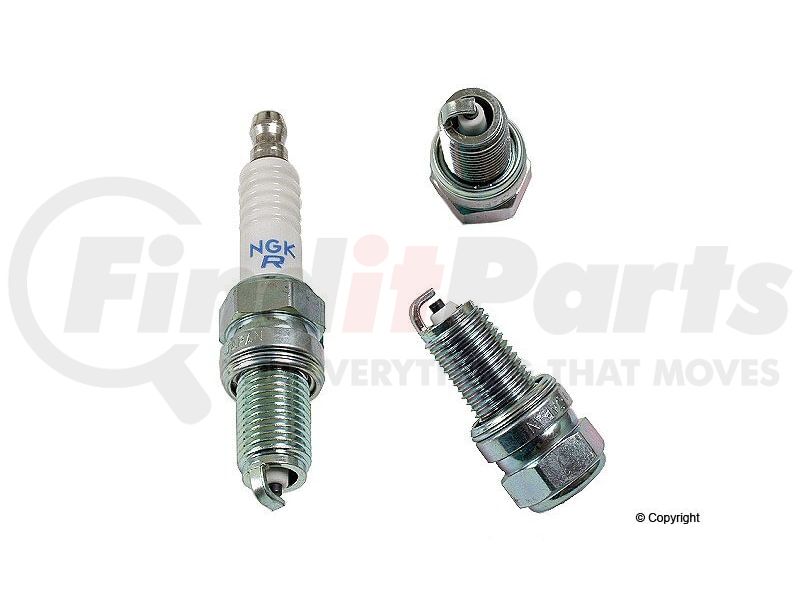

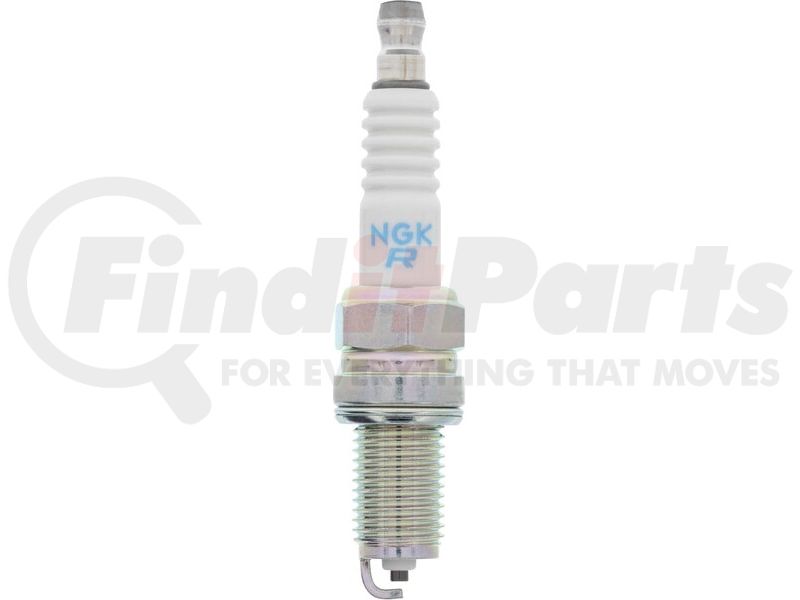

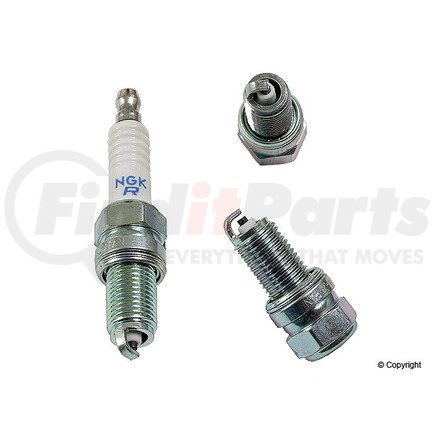

NGK SPARK PLUGS DCPR7E Part Description
Manufacturer
Product Description
NGK Standard Spark Plug
Features & Benefits
- ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction nickel alloy center electrode provides consistent performance
- RECOMMENDED USAGE: Best for vehicles with OE nickel alloy plugs, not recommended on vehicles with factory precious metal plugs
- NGK's OE CERAMIC TECHNOLOGY: High grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- COLD-ROLLED THREADS: Prevents cross-threading and damage to cylinder heads
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
NGK SPARK PLUGS DCPR7E Specifications
Product Attributes
| Stock Number | 3932 |
| Short Style Spark Plug | No |
| Service Number | DCPR7E |
| Resistance | 5000.0 82 |

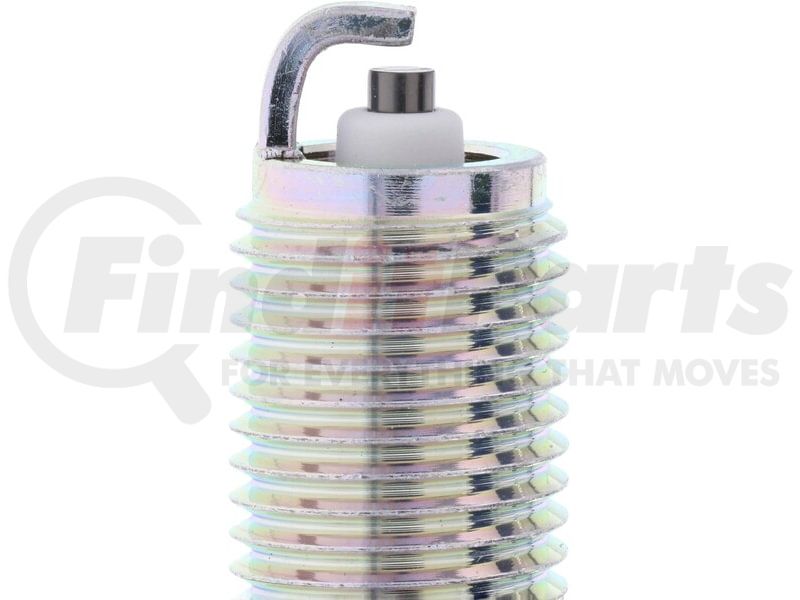

| Ground Electrode Tip Design | Standard |
| Ground Configuration | J-Gap |
| Ground Electrode Core Material | Nickel |
| Washer(s) Included | Yes |
| Grade Type | Standard Replacement |
| Electrical Terminal Type | Removable Nut |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Nickel |
| Pre-Gap Size | .032 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 5/8" (16mm) |
| Insulator Height | 1.93 IN |
| Manufacturer Heat Range | 7 |
| Seat Type | Flat |
| Reach | 0.750 IN |
| Thread Diameter | 0.472 IN |
| Insulator Material | Ceramic |
| Resistor Type | Yes |
| Skirt Length | 0.0 IN |
| Ground Electrode Tip Material | Nickel |
| Skirt | No |
| Center Electrode Insulator Tip Projection | 0.12 IN |
| Center Electrode Design | Standard |
| Washer Type | Crush |
| Center Electrode Projection | Mid Projection |
| Part Number | DCPR7E |
| Metallurgy | Copper |
| Thread Type Standard | Metric |
| Pre-Gap Size | 0.8 MM |
| Insulator Height | 49.0 MM |
| Reach | 19.0 MM |
| 6648 | 0.0 MM |
| Thread Size | M12 - 1.25 |
| Center Electrode Insulator Tip Projection | 3.0 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8511100000 |
| Warranty Time UOM | MO |
| Warranty Time | 2 |
| Country of Origin (Primary) | TH |
| UPC | 00087295139325 |
| VMRS Code | 033003005 |
| UNSPSC | 26101732 |
NGK SPARK PLUGS DCPR7E Cross References
| Brand | Part Number |
|---|---|
| Autolite | 4164 |
| Bosch | YR7DE |
| CHAMPION | 810 |
| Champion Spark Plug | 8812-1, 8810, 810S, 8810-2, 810ECO, 810, 8812, 8810-1, RA8HC |
| DENSO Auto Parts | 3176, XU22EPR-U, 3179, XU22EP-U |
| E3 SPARK PLUGS | E336 |
| E3 Spark Plugs | E3.36 |
| Harley Davidson | HD6R12, X12P |
| Honda | 98069-5797Q |
| Kohler | 1413212S, 2513225S |
| MOOG | 810 |
| Mazda | ZZS1-18-110, ZZSI-18-110 |
| Mitsubishi | MS851317 |
| Motorcraft | 1Y0F |
| N/A | DCPR7E |
| NGK | 3932 |
| Nissan | B2401-4A0A0 |
| Subaru | 22401KA240 |
| Suzuki | 09482-00448 |
| Torch | DK7RTC |
NGK SPARK PLUGS DCPR7E Fits Vehicles
- Harley-Davidson XL1200XS Forty-Eight Special (2018-2020)
- Harley-Davidson XL1200NS Iron 1200 (2018-2021)
- Cub Cadet Challenger 750 (2017-2018)
- Cub Cadet Challenger 750 Camo (2017)
- Cub Cadet Challenger 750 EPS (2017-2018)
- Harley-Davidson FXDLS Low Rider S (2016-2017)
- Cub Cadet Challenger 750 Crew (2016-2018)
- Harley-Davidson XL1200CX Roadster (2016-2020)
- Harley-Davidson FXSE CVO Pro Street Breakout (2016-2017)
- Harley-Davidson FLSS Softail Slim S (2016-2017)
- Harley-Davidson FLSTFBS Fat Boy S (2016-2017)
- Cub Cadet Challenger 700 (2015-2016, 2018)
- Harley-Davidson FLRT Freewheeler (2015-2016)
- Harley-Davidson FLHTKL Ultra Limited Low (2015-2016)
- Harley-Davidson FLTRX Road Glide (2015-2016)
- Harley-Davidson FLHTCUL Electra Glide Ultra Classic Low (2015-2016)
- Harley-Davidson FLTRXS Road Glide Special (2015-2016)
- Harley-Davidson FLHTK Ultra Limited (2015-2016)
- Harley-Davidson XL1200T SuperLow 1200T (2014-2018)
- Harley-Davidson FXDL Low Rider (2014-2017)
- Harley-Davidson FLHTCUSE7 CVO Ultra Classic Electra Glide (2012)
- Harley-Davidson FLSTNSE CVO Softail Deluxe (2014-2015)
- Harley-Davidson FLHXS Street Glide Special (2014-2016)
- Harley-Davidson FXSB Breakout (2013-2017)
- Harley-Davidson FLHTKSE CVO Limited (2014-2016)
- Harley-Davidson FLHTCUTG Tri Glide Ultra (2014-2016)
- Fiat 500 (2014-2017)
- Harley-Davidson FXSTS Springer Softail (2000-2006)
- Harley-Davidson FXSTD Softail Deuce (2000-2007)
- Harley-Davidson FXSTC Softail Custom (2007-2010)
- Harley-Davidson FXSTB Night Train (2000-2009)
- Harley-Davidson FXSBSE CVO Breakout (2013-2014)
- Harley-Davidson FXST Softail Standard (2000-2007)
- Harley-Davidson FLTRXSE2 CVO Road Glide Custom (2013)
- Harley-Davidson FXDL Dyna Low Rider (2000-2005, 2007-2009, 2015-2017)
- Harley-Davidson FXD Dyna Super Glide (2000-2005, 2007-2010)
- Harley-Davidson FLTRI Road Glide (2000-2006)
- Harley-Davidson FLSTSC Softail Springer Classic (2005-2007)
- Harley-Davidson FLSTS Heritage Springer (2000-2003)
- Harley-Davidson FLST Heritage Softail (2006)
- Harley-Davidson FLHXXX Street Glide Trike (2010-2011)
- Harley-Davidson FLHTCUSE8 CVO Ultra Classic Electra Glide (2013)
- Harley-Davidson FLHRSE5 CVO Road King (2013)
- Harley-Davidson FLHT Electra Glide Standard (2000-2009)
- Harley-Davidson FLHRS Road King Custom (2004-2007)
- Harley-Davidson FLHRCI Road King Classic (2002-2006)
- Harley-Davidson XL1200V Seventy-Two (2012-2016)
- Harley-Davidson XL1200X Forty-Eight (2010-2022)
- Harley-Davidson FXSTSI Springer Softail (2001-2006)
- Harley-Davidson FXSTI Softail Standard (2001-2006)
- Harley-Davidson FXDWG Dyna Wide Glide (1999-2005, 2007-2008, 2010-2017)
- Harley-Davidson FXDC Super Glide Custom (2005, 2007-2014)
- Harley-Davidson FXSTDI Softail Deuce (2001-2006)
- Harley-Davidson FXSTBI Night Train (2001-2006)
- Harley-Davidson FXS Blackline (2011-2013)
- Harley-Davidson FXDXI Dyna Super Glide Sport (2004-2005)
- Harley-Davidson FXDWGI Dyna Wide Glide (2004-2006)
- Harley-Davidson FXDLI Dyna Low Rider (2004-2006)
- Harley-Davidson FXDI Dyna Super Glide (2004-2006)
- Harley-Davidson FXDCI Super Glide Custom (2005-2006)
- Harley-Davidson FXDB Street Bob (2007-2017)
- Harley-Davidson FLSTSI Heritage Springer (2001-2003)
- Harley-Davidson FLSTSCI Softail Springer Classic (2005-2006)
- Harley-Davidson FLSTN Softail Deluxe (2005-2017)
- Harley-Davidson FLTR Road Glide (2000-2002, 2007-2009, 2016)
- Harley-Davidson FLSTSE3 CVO Softail Convertible (2012)
- Harley-Davidson FLSTNI Softail Deluxe (2005-2006)
- Harley-Davidson FLHXSE3 CVO Street Glide (2012)
- Harley-Davidson FLSTI Heritage Softail (2006)
- Harley-Davidson FLSTFI Fat Boy (2001-2006)
- Harley-Davidson FLSTF Fat Boy (2000-2017)
- Harley-Davidson FLS Softail Slim (2012-2017)
- Harley-Davidson FLSTC Heritage Softail Classic (2000-2017)
- Harley-Davidson FLSTCI Heritage Softail Classic (2001-2006)
- Harley-Davidson FLHXI Street Glide (2006)
- Harley-Davidson FLHTI Electra Glide Standard (2003-2006)
- Harley-Davidson FLHTCUI Electra Glide Ultra Classic (2000-2006)
- Harley-Davidson FLHTCU Electra Glide Ultra Classic (2007-2016)
- Harley-Davidson FLHTC Electra Glide Classic (2000-2005, 2007-2013)
- Harley-Davidson FLHTCI Electra Glide Classic (2000-2006)
- Harley-Davidson FLHRSI Road King Custom (2004-2006)
- Harley-Davidson FLHRI Road King (2000-2006)
- Harley-Davidson FLHRC Road King Classic (2007-2013)
- Harley-Davidson FLD Switchback (2012-2016)
- Harley-Davidson FLHR Road King (2000-2016)
- Buell X1W White Lightning (2002)
- American IronHorse Classic Chop (2008)
- American IronHorse Judge (2009)
- American IronHorse Bandera (2008-2009)
- Chevrolet Spark (2013-2015)
- Harley-Davidson XR1200X (2011-2012)
- Harley-Davidson FLTRUSE CVO Road Glide Ultra (2011, 2015-2016)
- Harley-Davidson XL883L SuperLow (2011-2020)
- Harley-Davidson FLSTSE2 CVO Softail Convertible (2011)
- Harley-Davidson FLTRU Road Glide Ultra (2011-2013, 2016)
- Harley-Davidson FLHXSE2 CVO Street Glide (2011)
- Harley-Davidson FLHTCUSE6 CVO Ultra Classic Electra Glide (2011)
- Harley-Davidson FLTRX Road Glide Custom (2010-2013)
- Harley-Davidson FLHXSE CVO Street Glide (2010, 2015-2016)
- Harley-Davidson FLHTCUSE5 CVO Ultra Classic Electra Glide (2010)
- Harley-Davidson FLHTK Electra Glide Ultra Limited (2010-2014)
- Harley-Davidson FLSTFB Fat Boy Lo (2010-2017)
- Harley-Davidson FXDFSE2 CVO Dyna Fat Bob (2010)
- Harley-Davidson FLSTSE CVO Softail Convertible (2010)
- Big Dog Mastiff EFI (2010-2011)
- Big Dog K-9 EFI (2010-2011)
- Harley-Davidson XL883N Iron 883 (2009-2022)
- Harley-Davidson XR1200 (2009-2010)
- Harley-Davidson FXDFSE CVO Dyna Fat Bob (2009)
- Harley-Davidson FLTRSE3 CVO Road Glide (2009)
- Harley-Davidson FLHTCUSE4 CVO Ultra Classic Electra Glide (2009)
- Harley-Davidson FXSTSSE3 CVO Softail Springer (2009)
- Harley-Davidson FLHTCUTG Tri Glide Ultra Classic (2009-2013)
- Big Dog Coyote (2009-2011)
- Harley-Davidson FXDSE2 Screamin Eagle Dyna (2008)
- Harley-Davidson FXCWC Rocker C (2008-2011)
- Harley-Davidson FLHTCUSE3 Screamin Eagle Ultra Classic Electra Glide (2008)
- Harley-Davidson FXDF Fat Bob (2008-2017)
- Harley-Davidson FXSTSSE2 Screamin Eagle Softail Springer (2008)
- Harley-Davidson FXCW Rocker (2008-2009)
- Harley-Davidson FLHRSE4 Screamin Eagle Road King (2008)
- Harley-Davidson FLSTSB Cross Bones (2008-2011)
- Big Dog Mutt (2008)
- Harley-Davidson XL50 50th Anniversary Sportster (2007)
- Harley-Davidson XL1200N Sportster 1200 Nightster (2007-2012)
- Harley-Davidson XL1200L Sportster 1200 Low (2007-2011)
- Harley-Davidson FXSTSSE Screamin Eagle Softail Springer (2007)
- Harley-Davidson FLHRSE3 Screamin Eagle Road King (2007)
- Harley-Davidson FXDSE Screamin Eagle Dyna (2007)
- Harley-Davidson FLHTCUSE2 Screamin Eagle Ultra Classic Electra Glide (2007)
- Harley-Davidson FXDI35 Dyna 35th Anniversary Super Glide (2006)
- Harley-Davidson FLHTCUSE Screamin Eagle Ultra Classic Electra Glide (2006)
- Harley-Davidson FLHX Street Glide (2006-2016)
- Harley-Davidson FXDBI Street Bob (2006)
- Harley-Davidson FLSTFSE2 Screamin Eagle Fat Boy (2006)
- Big Dog K-9 (2006-2011)
- Harley-Davidson FLHTCSE2 Screamin Eagle Electra Glide 2 (2005)
- Harley-Davidson FLSTFSE Screamin Eagle Fat Boy (2005)
- Harley-Davidson XL883L Sportster 883 Low (2005-2010)
- Big Dog Chopper RT (2005)
- Big Dog Chopper BDM (2005)
- American IronHorse LSC (2005-2007)
- Harley-Davidson FXSTDSE2 Screamin Eagle Softail Deuce 2 (2004)
- Harley-Davidson XL1200R Sportster 1200 Roadster (2004-2008)
- Harley-Davidson FLHTCSE Screamin Eagle Electra Glide (2004)
- Harley-Davidson XL883 Sportster (2004-2008)
- Big Dog Ridgeback (2004-2006, 2008-2011)
- American IronHorse Stalker (2004)
- American IronHorse Slammer (2004-2005, 2007-2009)
- American IronHorse Texas Chopper (2004-2009)
- American IronHorse Outlaw (2004-2007)
- American IronHorse Tejas (2004-2007)
- American IronHorse Legend (2004-2007)
- Harley-Davidson FLHRSEI2 Screamin Eagle Road King 2 (2003)
- Harley-Davidson FXSTDSE Screamin Eagle Softail Deuce (2003)
- BMW K1200LT Exodus (2003)
- BMW K1200GT (2003-2004)
- Big Dog Chopper DT (2003-2005)
- Big Dog Chopper (2003-2004, 2006-2007)
- Harley-Davidson XL883R Sportster 883 Roadster (2002-2003, 2005-2007)
- Harley-Davidson FLHRSEI Screamin Eagle Road King (2002)
- Arctic Cat 4-Stroke Touring (2002)
- Arctic Cat 4-Stroke Trail (2002)
- Harley-Davidson FXDXT Dyna Super Glide T-Sport (2001-2003)
- Harley-Davidson XLH883HUG Sportster 883 Hugger (2001-2003)
- Harley-Davidson FXDWG2 CVO Dyna Wide Glide (2001)
- Harley-Davidson XLH883 (2001)
- Harley-Davidson FLTRSEI2 Screamin Eagle Road Glide 2 (2001)
- Big Dog Vintage Sport (2001)
- Big Dog Husky (2001-2003)
- Big Dog Pro Sport (2001-2002)
- Big Dog Bulldog (2001-2005, 2007, 2010-2011)
- Big Dog Wolf (2001-2002, 2010-2011)
- Big Dog Mastiff (2001-2011)
- Big Dog Pitbull (2001-2011)
- Big Dog Boxer (2001-2004)
- Harley-Davidson XL1200C Sportster 1200 Custom (2000-2020)
- Harley-Davidson FXDS-Conv Dyna Convertible (2000)
- Harley-Davidson XLH1200 (2000-2003)
- Harley-Davidson FLTRSEI Screamin Eagle Road Glide (2000)
- Harley-Davidson XL883C Sportster 883 Custom (2000-2009)
- Harley-Davidson XL1200S Sportster 1200 Sport (2000-2003)
- Harley-Davidson FXDX Dyna Super Glide Sport (2000-2001, 2003-2005)
- BMW K1200RS Dakar (1999)
- BMW K1200LTC (1999-2002)
- BMW K1200LTS (1999-2000)
- BMW K1200LT (1999-2009)
- BMW K1200LTI Icon (1999-2001)
- Buell S1 White Lightning (1998)
- BMW K1200RS (1997-2000)
- Buell S2T Thunderbolt (1996)
- Buell S2 Thunderbolt (1995-1996)
- Buell RSS1200 (1992-1993)
- Buell RS1200 (1989-1993)
- Buell RR1200 (1989-1990)
- Buell RR1000 (1987-1988)
NGK SPARK PLUGS DCPR7E Customer Reviews
No reviews yet
Be the first to review this product!
NGK SPARK PLUGS DCPR7E Questions & Answers
No questions yet
Be the first to ask a question about this product!
California residents see
