(888) 312-8812 Login SignupNGK SPARK PLUGS DP6EA9 NGK Standard Spark Plug
Tap to view 2 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
NGK SPARK PLUGS DP6EA9 Part Description
Manufacturer
Product Description

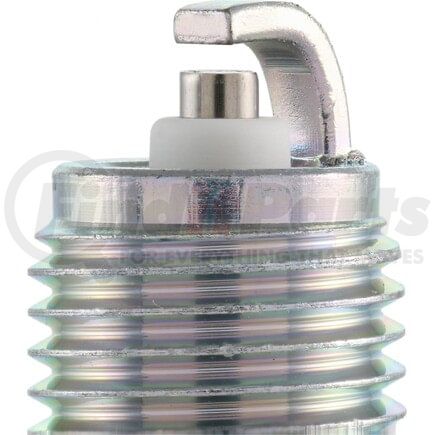

NGK Standard Spark Plug
Features & Benefits
- ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction nickel alloy center electrode provides consistent performance
- RECOMMENDED USAGE: Best for vehicles with OE nickel alloy plugs, not recommended on vehicles with factory precious metal plugs
- NGK's OE CERAMIC TECHNOLOGY: High grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- COLD-ROLLED THREADS: Prevents cross-threading and damage to cylinder heads
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
NGK SPARK PLUGS DP6EA9 Specifications
Product Attributes
| Stock Number | 1068 |
| Part Number | DP6EA-9 |
| Short Style Spark Plug | No |
| Service Number | DP6EA-9 |
| Resistance | 0.0 82 |
| Ground Electrode Tip Design | Standard |
| Ground Configuration | J-Gap |
| Ground Electrode Core Material | Nickel |
| Washer(s) Included | Yes |
| Grade Type | Standard Replacement |
| Electrical Terminal Type | Stud |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Nickel |
| Pre-Gap Size | .036 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 18mm |
| Insulator Height | 1.97 IN |
| Manufacturer Heat Range | 6 |
| Seat Type | Flat |
| Reach | 0.750 IN |
| Thread Diameter | 0.472 IN |
| Insulator Material | Ceramic |
| Resistor Type | No |
| Skirt Length | 0.0 IN |
| Ground Electrode Tip Material | Nickel |
| Skirt | No |
| Center Electrode Insulator Tip Projection | 0.12 IN |
| Center Electrode Design | Standard |
| Washer Type | Crush |
| Center Electrode Projection | Mid Projection |
| Metallurgy | Copper |
| Thread Type Standard | Metric |
| Pre-Gap Size | 0.9 MM |
| Insulator Height | 50.0 MM |
| Reach | 19.0 MM |
| 6648 | 0.0 MM |
| Thread Size | M12 - 1.25 |
| Center Electrode Insulator Tip Projection | 3.0 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8511100000 |
| Warranty Time UOM | MO |
| Warranty Time | 2 |
| Country of Origin (Primary) | JP |
| UPC | 00087295110683 |
| VMRS Code | 033003005 |
| UNSPSC | 26101732 |
NGK SPARK PLUGS DP6EA9 Cross References
| Brand | Part Number |
|---|---|
| AUTOLITE | 4164 |
| CHAMPION | 810 |
| DENSO Auto Parts | 4165, X20EP-U9 |
| Honda | 98069-56911 |
| Kawasaki | 92070-1136 |
| MOOG | 810 |
| N/A | DP6EA-9 |
| NGK | 1068 |
| Yamaha | 90793-20054 |
NGK SPARK PLUGS DP6EA9 Fits Vehicles
- Kawasaki VN1500A Vulcan 88 (1987)
- Kawasaki VN1500B Vulcan 88 SE (1987)
NGK SPARK PLUGS DP6EA9 Customer Reviews
No reviews yet
Be the first to review this product!
NGK SPARK PLUGS DP6EA9 Questions & Answers
No questions yet
Be the first to ask a question about this product!
