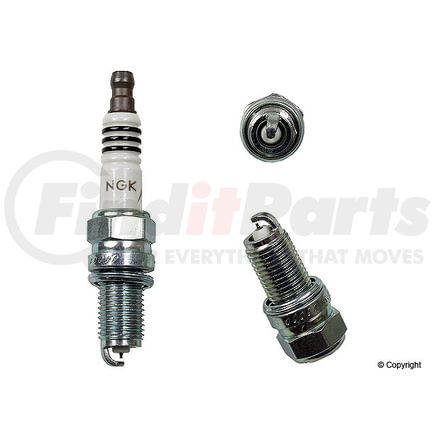

(888) 312-8812 Login SignupNGK SPARK PLUGS DCPR9EIX NGK Iridium IX Spark Plug
Tap to view 3 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
NGK SPARK PLUGS DCPR9EIX Part Description
Manufacturer
Product Description
NGK Iridium IX Spark Plug
Features & Benefits
- SINGLE IRIDIUM TIP: Fine wire 0.6 millimeter iridium tip center electrode ensures high durability and a consistently stable spark
- IRIDIUM ALLOY CENTER ELECTRODE: Iridium's density (6x that of platinum) and extremely high melting point is perfect for modern high efficiency engines
- TAPERED CUT GROUND ELECTRODE: Reduced quenching design produces outstanding ignitability, improved acceleration, fuel efficiency and durability
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
- RECOMMENDED USAGE: Modified or high performance applications, or as an upgrade to OE nickel alloy spark plugs
NGK SPARK PLUGS DCPR9EIX Specifications
Product Attributes
| Stock Number | 2316 |
| Part Number | DCPR9EIX |
| Short Style Spark Plug | No |
| Service Number | DCPR9EIX |
| Resistance | 5000.0 82 |
| Ground Electrode Tip Design | Taper Cut |
| Ground Configuration | J-Gap |
| Ground Electrode Core Material | Nickel |
| Washer(s) Included | Yes |
| Grade Type | Performance |
| Electrical Terminal Type | Removable Nut |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Iridium |
| Pre-Gap Size | .032 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 5/8" (16mm) |
| Insulator Height | 2.01 IN |
| Manufacturer Heat Range | 9 |
| Seat Type | Flat |
| Reach | 0.750 IN |
| Thread Diameter | 0.472 IN |
| Insulator Material | Ceramic |
| Resistor Type | Yes |
| Skirt Length | 0.0 IN |
| Ground Electrode Tip Material | Nickel |
| Skirt | No |
| Center Electrode Insulator Tip Projection | 0.12 IN |
| Center Electrode Design | Fine Wire |
| Washer Type | Crush |
| Center Electrode Projection | Mid Projection |
| Thread Size | M12 - 1.25 |
| Metallurgy | Single Iridium |
| Thread Type Standard | Metric |
| Pre-Gap Size | 0.8 MM |
| Insulator Height | 51.0 MM |
| Reach | 19.0 MM |
| 6648 | 0.0 MM |
| Center Electrode Insulator Tip Projection | 3.0 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8511100000 |
| Warranty Time UOM | MO |
| Warranty Time | 2 |
| Country of Origin (Primary) | JP |
| UPC | 00087295123164 |
| VMRS Code | 033003005 |
| UNSPSC | 26101732 |
NGK SPARK PLUGS DCPR9EIX Cross References
NGK SPARK PLUGS DCPR9EIX Fits Vehicles
- Aprilia Tuono 1000 (2002-2005)
- Ducati Monster S4R (2005)
- Can-Am DS 450 (2014)
- Can-Am Spyder GS (SM5) (2008-2009)
- Can-Am Spyder RS-S (SE5) (2010, 2012)
- Can-Am Spyder RS-S (SM5) (2011-2012)
- Can-Am Spyder RS (SM5) (2010, 2012)
- Can-Am Spyder RS (SE5) (2009-2010, 2012)
- Can-Am Spyder GS (SE5) (2008)
- Can-Am DS 450 EFI X xc (2012)
- Can-Am DS 450 EFI (2012)
- Can-Am DS 450 EFI X mx (2012)
- Can-Am DS 450 X mx (2010-2011, 2013-2015)
- Can-Am DS 450 X xc (2010-2011, 2014-2015)
- Aprilia RSV 1000 R (2005-2009)
- Aprilia Tuono 1000 R Factory (2004-2009)
- Aprilia RSV 1000 R Factory (2004-2009)
- Aprilia Tuono 1000 R (2004-2010)
- Aprilia RSV Mille R Nera (2004)
- Aprilia Tuono Fighter 1000 (2003)
- Aprilia RSV Mille R Haga (2003)
- Aprilia Tuono Racer 1000 (2003)
- Aprilia ETV 1000 Caponord (2001-2007)
- Aprilia RST1000 Futura (2001-2005)
- Ducati 748 (2000-2001)
- Aprilia SL1000 Falco (2000-2004)
- Aprilia RSV Mille R (2000-2004)
- Ducati ST4 (1999-2003)
- Ducati 916 SPS Fogarty (1998)
- Ducati 916 Biposto (1998)
- Aprilia RSV Mille (1998-2004)
- Ducati 916 SPS (1997-1998)
- Ducati 916 Monoposto (1997-1998)
- Ducati 916 Senna (1997-1998)
- Ducati 916 Strada (1996)
- Ducati 916 SP (1995)
- Ferrari Superamerica (2005)
- Ferrari 612 Scaglietti (2005-2010)
- Ferrari 456 M GTA (2002-2004)
- Ferrari 456 M GT (2002-2004)
- Ferrari 575 M Maranello (2002-2005)
- Ferrari 550 Maranello (1997-2002)
- Ferrari 512 M (1995)
- Ferrari 512 TR (1992-1994)
- Ferrari 456 M (1999-2001)
- Ferrari 456 GTA (1997-1998)
- Ferrari 456 GT (1995-1998)
